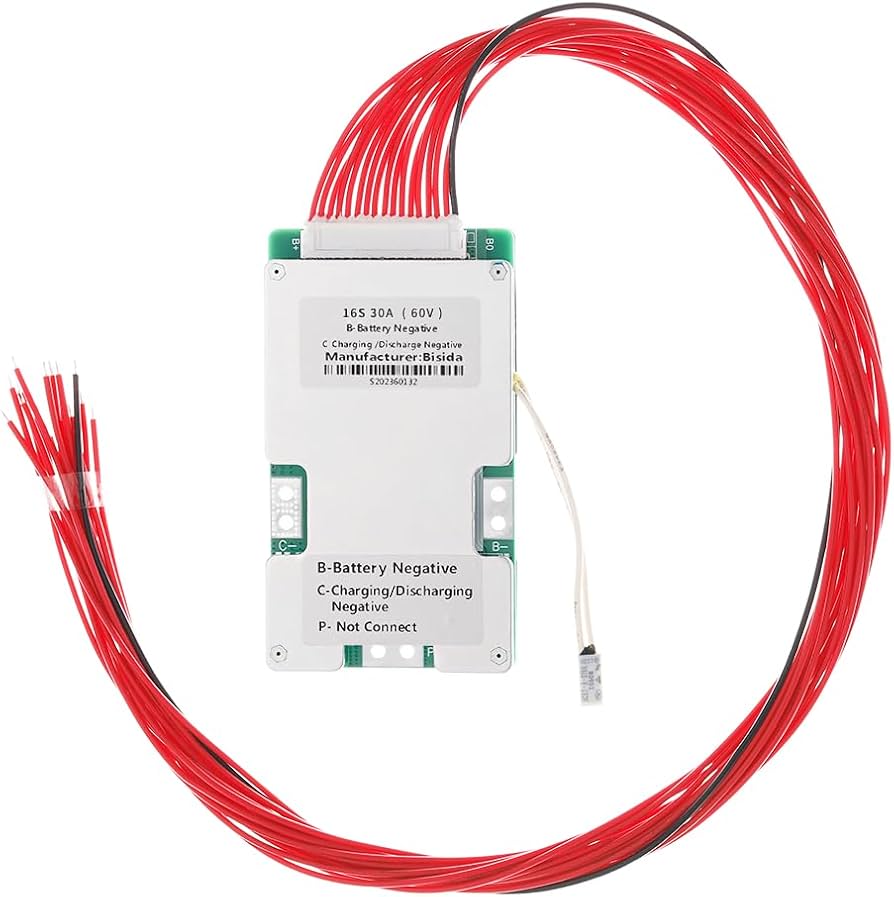

موديول حماية بطارية BMS 16S (30 أمبير)

Product Overview

The BMS 16S 30A Lithium Battery Charger Protection Module is a high-performance Battery Management System (BMS) designed for 16-series lithium-ion (Li-ion) or LiFePO4 battery packs. It provides essential protection by preventing overcharging, over-discharging, overcurrent, and short circuits, ensuring battery safety and longevity. With a 30A continuous discharge current, this module is ideal for electric bikes, scooters, solar energy storage, and other high-power applications.

Key Features:

• Supports 16S Battery Packs – Compatible with Li-ion (3.7V/cell) and LiFePO4 (3.2V/cell) chemistries.


• 30A Continuous Discharge Current – Suitable for medium-to-high power applications.


• Overcharge & Over-discharge Protection – Ensures safe operation and prevents battery damage.


• Overcurrent & Short Circuit Protection – Protects the system from electrical faults.


• Cell Balancing Function – Maintains uniform charge levels across all cells.


• Temperature Protection – Prevents overheating for improved battery longevity.


• Compact & Durable Design – Easy to integrate into various battery-powered systems.

Technical Specifications:

• Battery Configuration: 16S (16 cells in series)


• Supported Battery Types: Lithium-ion (3.7V per cell), LiFePO4 (3.2V per cell)


• Continuous Discharge Current: 30A


• Overcharge Voltage Protection: ~4.2V per cell (Li-ion), ~3.65V per cell (LiFePO4)


• Over-discharge Voltage Protection: ~2.5V per cell (Li-ion), ~2.0V per cell (LiFePO4)


• Overcurrent Protection: Triggered when exceeding rated current


• Short Circuit Protection: Yes


• Balance Function: Passive balancing included


• Operating Temperature: -20°C to 60°C


• Module Dimensions: Compact and easy to install

Applications:

• Electric Bikes & Scooters – Ensures safe and reliable battery performance.


• Solar Energy Storage – Manages battery packs for renewable energy systems.


• Power Tools & Robotics – Extends battery life in demanding applications.


• Electric Vehicles (EVs) – Provides protection for small-scale EV battery packs.


• DIY Battery Packs – Ideal for custom lithium battery projects.

Why Choose the BMS 16S 30A Module?

With its comprehensive protection features, cell balancing, and reliable performance, this BMS module is an essential component for maintaining the safety and longevity of 16S lithium battery packs in various applications.
