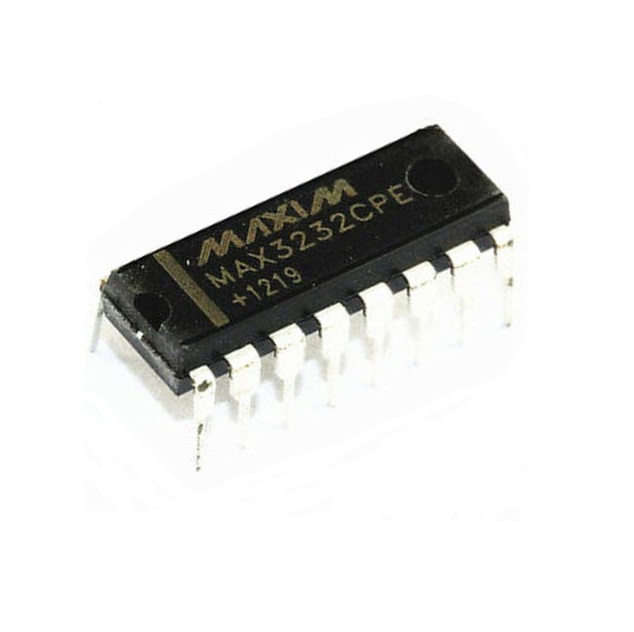

آي سي محول مستوى تسلسلي MAX3232

MAX3232 Serial RS232 to TTL Level Converter Module

The MAX3232 Serial Level Converter is a compact and efficient module designed to bridge the communication gap between devices using RS232 voltage levels (such as PCs or GPS modules) and TTL-level serial interfaces (like microcontrollers: Arduino, ESP32, STM32, etc.).

🔧 Key Features

•


  Chipset: Based on the MAX3232 IC





•


  Voltage Range: 3.0V – 5.5V operation (perfect for both 3.3V and 5V systems)





•


  Dual Driver/Receiver: Supports 2 transmitters and 2 receivers (T1, T2 / R1, R2)





•


  Full RS232 Protocol Compliance





•


  DB9 Serial Connector Interface or direct header pins (varies by module type)




📐 Technical Specifications

•


  Operating Voltage: 3.0V – 5.5V DC





•


  Communication Voltage Levels:






  •


    RS232 side: ±3V to ±15V





  •


    TTL side: 0V to 3.3V/5V logic









•


  Baud Rate Support: Up to 250 kbps





•


  Size: Typically around 25mm x 15mm (varies by model)





•


  Onboard Capacitors: Internal charge-pump capacitors required for voltage shifting





•


  Connector Options:






  •


    Male headers for breadboarding





  •


    DB9 female or male connector for RS232 port (optional on some models)








🛠️ Applications

•


  RS232 to microcontroller communication (Arduino, ESP32, Raspberry Pi)





•


  Communicating with older devices like modems, serial printers, barcode scanners





•


  GPS and GSM module interfacing





•


  Industrial automation systems





•


  Serial debugging and logging tools




✅ Why Use MAX3232 Instead of MAX232?

•


  MAX3232 supports 3.3V operation, unlike MAX232 which is 5V-only





•


  Smaller and more modern footprint





•


  Lower power consumption and better compatibility with low-voltage MCUs




⚠️ Note: Always connect GND between the RS232 device and the microcontroller for proper communication.
