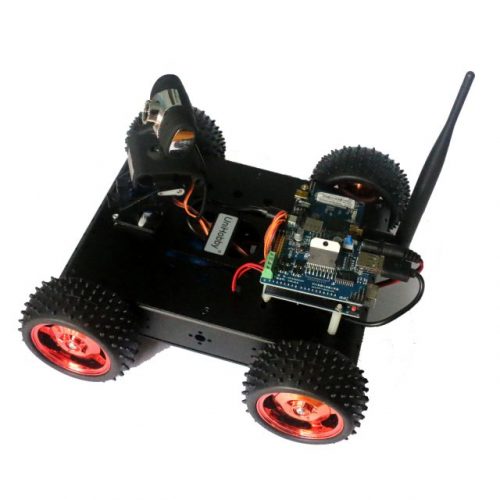

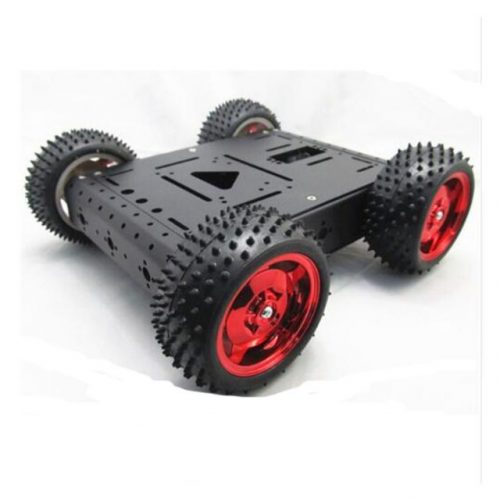

UniHobby 4WD Robot Car Kit Maximum Load 15KG Aluminum Robotics Silver Chassis Kit for Arduino Robot Projects (Silver Tires). All Metal Motor, full aluminum alloy robot car chassis kit. Note: All components disassembled inbox for your DIY.
Size of robot car chassis board: 200*140*36mm
Four Metal DC Motors (3-24V)
Maximum Load: 15kg
Wheel Diameter: 80mm
Wheel width: 22mm
Robot Car DC Motor Specifications
Rated voltage: 3-24v (6-9V best).
6V RPM(No-load): 77 RPM( The RMP varies according to the changes in load and voltage).
Shaft Diameter: 5mm.
An output shaft for the D-type.
Motor diameter: 25mm.
Containing the axis of the total length: 65mm.
Current: 250mA.
Power: 1W.
Motor Weight: 100 g
Maximum Load: 77 rpm Maximum Load 15KG
