سنسور حرارة عن بعد MLX90614

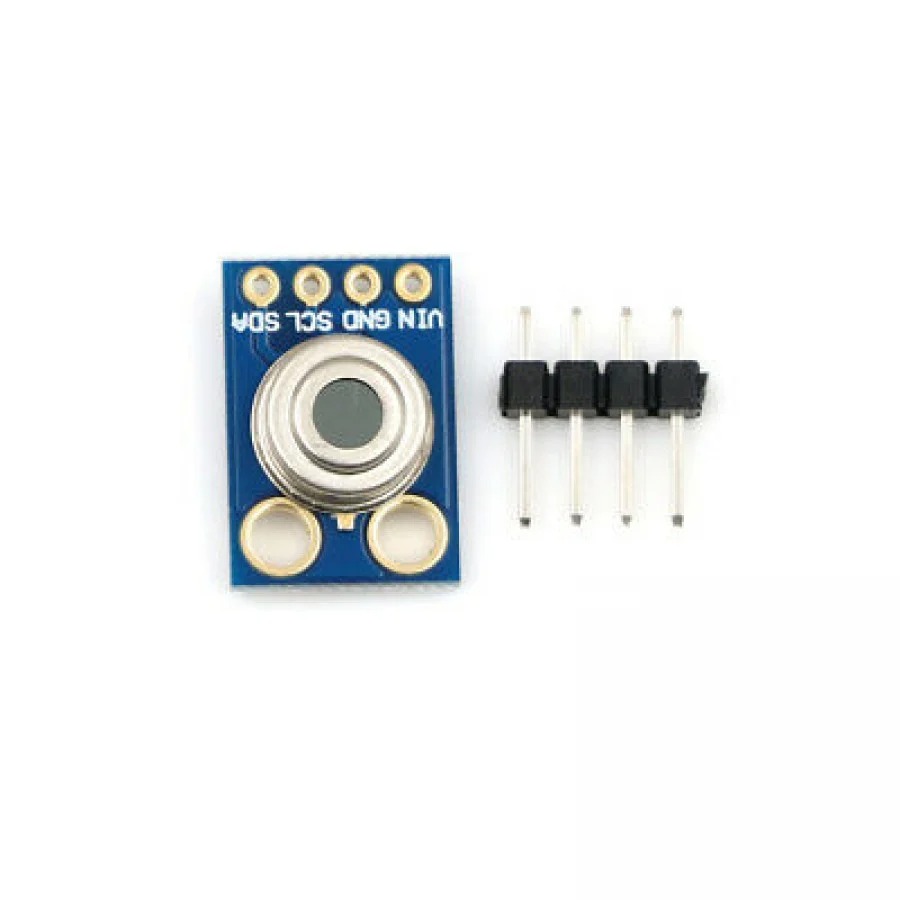

MLX90614 Contactless Infrared Temperature Sensor

The MLX90614 is a high-precision, non-contact infrared (IR) thermometer designed for sensing the temperature of an object from a distance. By measuring the IR light bouncing off an object, it can calculate the temperature without physical touch. This makes it ideal for medical thermometers, industrial moving parts, or livestock monitoring. The module features an internal 17-bit ADC and a powerful Digital Signal Processor (DSP) to ensure high accuracy and resolution.

Key Features

•


  Non-Contact Sensing: Measure temperatures safely from a distance of 4 cm to 10 cm.





•


  High Accuracy: Factory calibrated with an accuracy of ±0.5°C (and up to ±0.2°C in specific medical ranges).





•


  Wide Temperature Range: * Ambient (Sensor) Temp: -40°C to +125°C






  •


    Object Temp: -70°C to +380°C









•


  High Resolution: Features a measurement resolution of 0.02°C.





•


  Dual-Zone Monitoring: Capable of reading both the ambient temperature and the specific object temperature simultaneously.





•


  I2C Interface: Simple 2-wire communication; supports up to 127 sensors on a single bus.




Technical Specifications

Connection Guide (Arduino UNO)

Dimensions (In mm)

Applications

•


  Healthcare: Medical-grade non-contact body temperature measurement.





•


  Industrial: Monitoring the temperature of moving machine parts or high-voltage equipment.





•


  Automotive: Blind angle detection and windshield defogging systems.





•


  Smart Home: AC control systems and kitchen appliances (ovens/microwaves).





•


  Livestock: Health monitoring for animals without causing stress.




Library : Download
