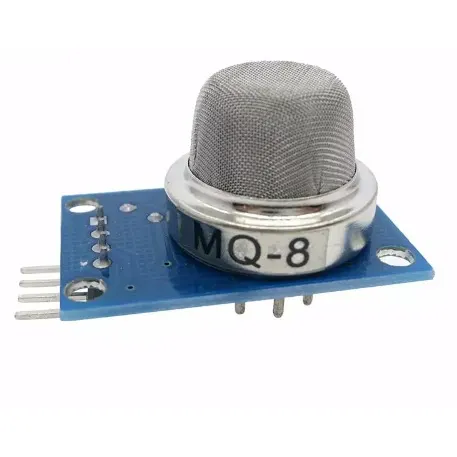

This gas sensor module is made using MQ8, a low cost semiconductor sensor which can detect the presence of Hydrogen gas at concentrations from 100 to 10,000 ppm. The sensitive material used for this sensor is SnO2, whose conductivity is lower in clean air. It’s conductivity increases as the concentration of sensing gases increases. It has also some sensitivity to Alcohol, LPG and Cooking Flames. This module can provide both digital and analog outputs. MQ8 Hydrogen gas sensor can be easily interfaced with Microcontrollers, Arduino Boards, Raspberry Pi etc using an Analog to Digital Converter (ADC).

Features

• Low Cost


• Fast Response


• Stable and Long Life


• High sensitivity to Hydrogen (H2)


• Small sensitivity to Alcohol, LGP and Cooking Fumes


• Both Analog and Digital outputs


• On-board LED indicator

Technical Data

• Operating Voltage : 5V ±0.1


• Operating Temperature : -10°C ~ 50°C


• Detection Range : 100 ~ 10,000 ppm of Hydrogen

Pin Out

• VCC – Input Power Supply


• GND – Supply Ground


• DO – Digital Output


• AO – Analog Output
