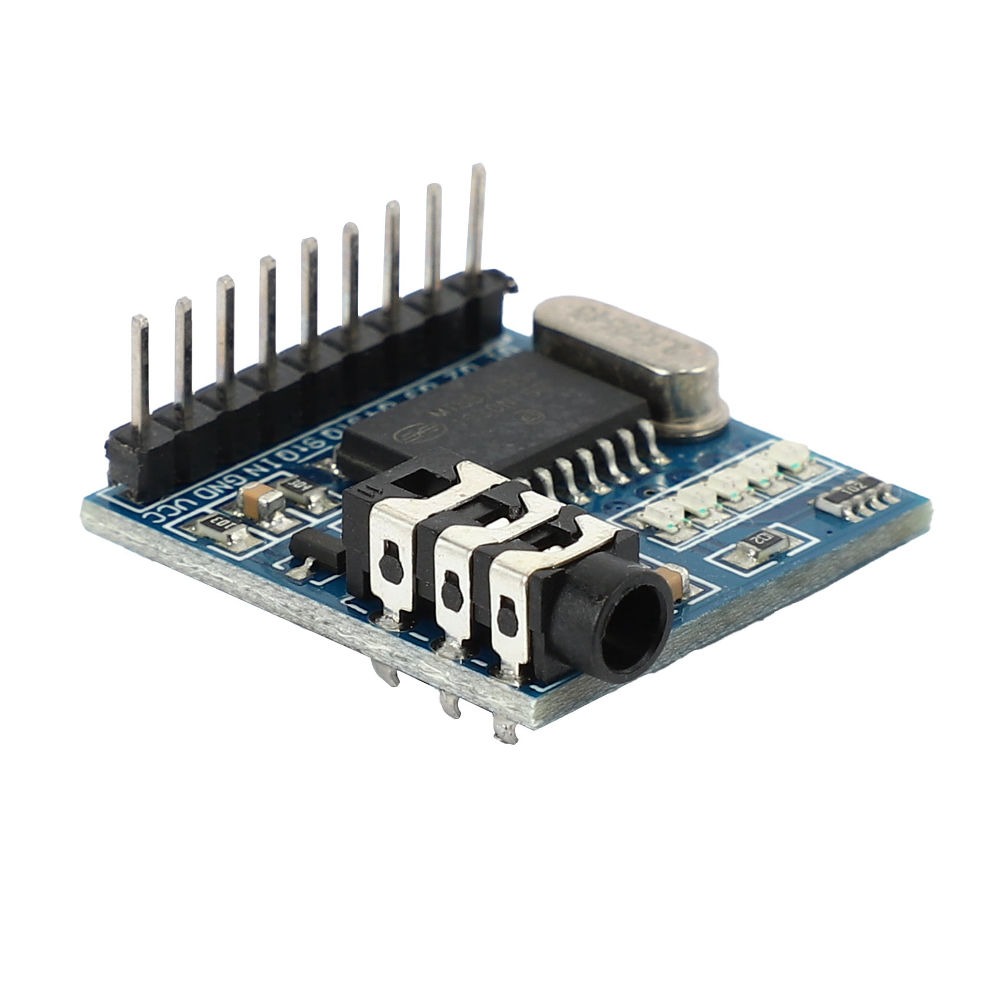

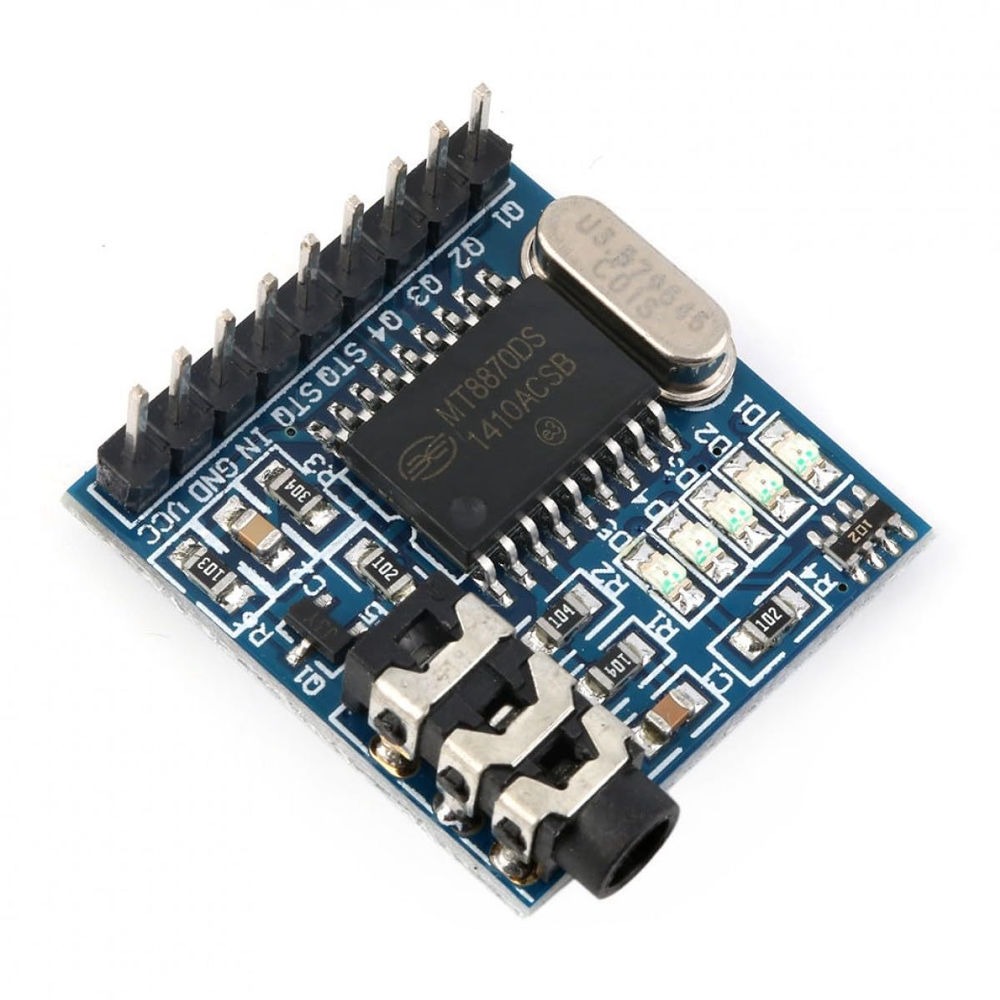

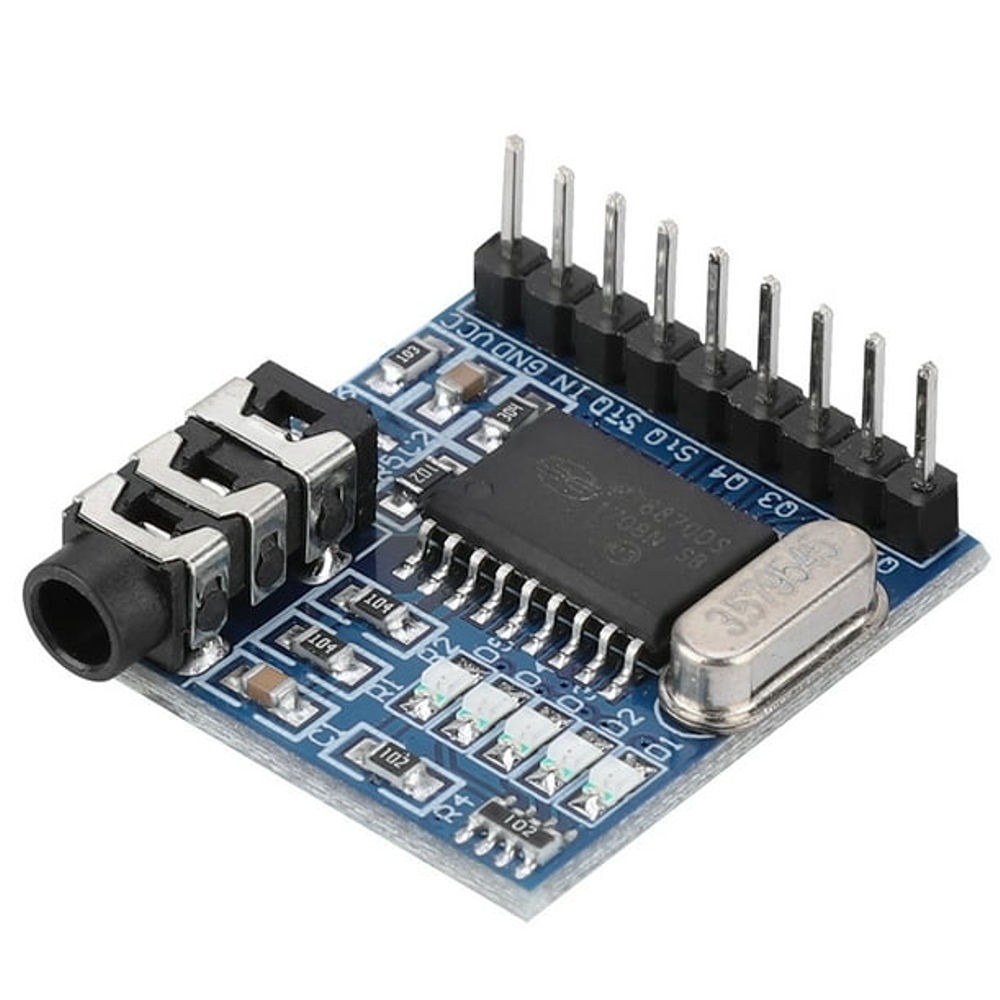

MT8870 DTMF Voice Decoding Module

The MT8870 DTMF Decoder Module is a specialized device used to translate Dual-Tone Multi-Frequency (DTMF) signals—the tones produced when pressing keys on a telephone keypad—into digital data. This allows you to control electronics, robots, or home appliances remotely using any mobile or landline phone as a wireless controller.

Key Features

•


  Full DTMF Decoding: Accurately decodes all 16 standard DTMF tones, including numbers (0-9), letters (A-D), and symbols (*, #).





•


  Audio-Ready Interface: Features an onboard 3.5mm audio jack, allowing you to plug it directly into a smartphone's headphone jack or any audio source.





•


  Real-time Digital Output: Converts tones into a 4-bit binary code (Q1–Q4) that microcontrollers like Arduino or ESP32 can easily read.





•


  Detection Indicator (StQ): Includes a "Status" pin that goes high whenever a valid tone is detected, serving as an interrupt for your code.





•


  Onboard LEDs: Integrated LEDs provide immediate visual feedback for the digital output state, simplifying troubleshooting.





•


  Wide Operating Range: Built to withstand temperatures from -40°C to +85°C, making it suitable for industrial environments.




Technical Specifications

Dimensions

Pinout Description

Connection

Applications

•


  Phone-Controlled Robotics: Control a robot's movement from anywhere in the world by calling a phone attached to the robot.





•


  Smart Home Automation: Toggle lights, fans, or security locks by entering a code on your phone’s keypad.





•


  Remote Security Systems: Use your phone as a remote "keypad" to arm or disarm alarm systems.





•


  Interactive Voice Response (IVR): Build simple systems that react to user keypad inputs for data entry or menu navigation.




Package Contents

•


  1x MT8870 DTMF Voice Decoding Module
