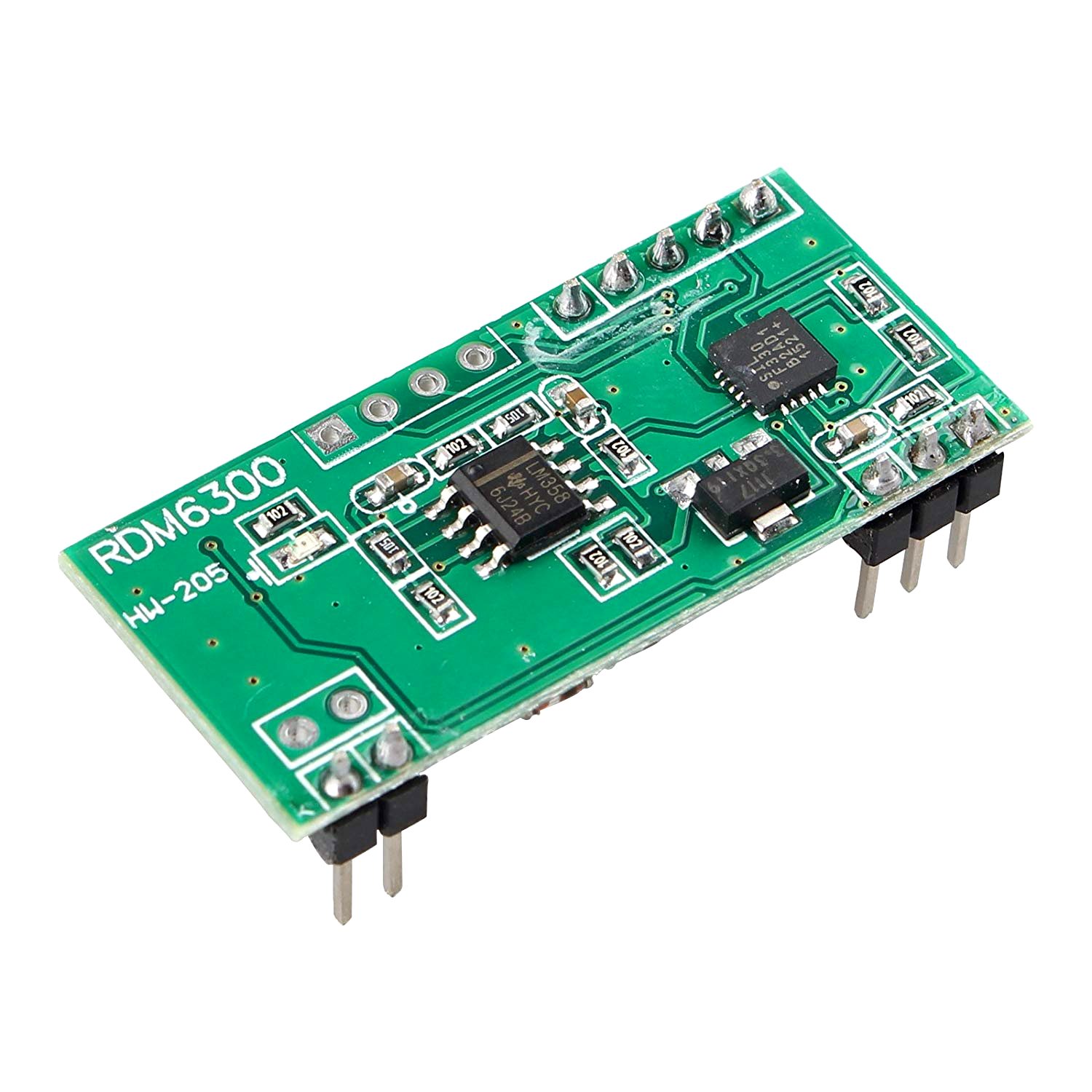

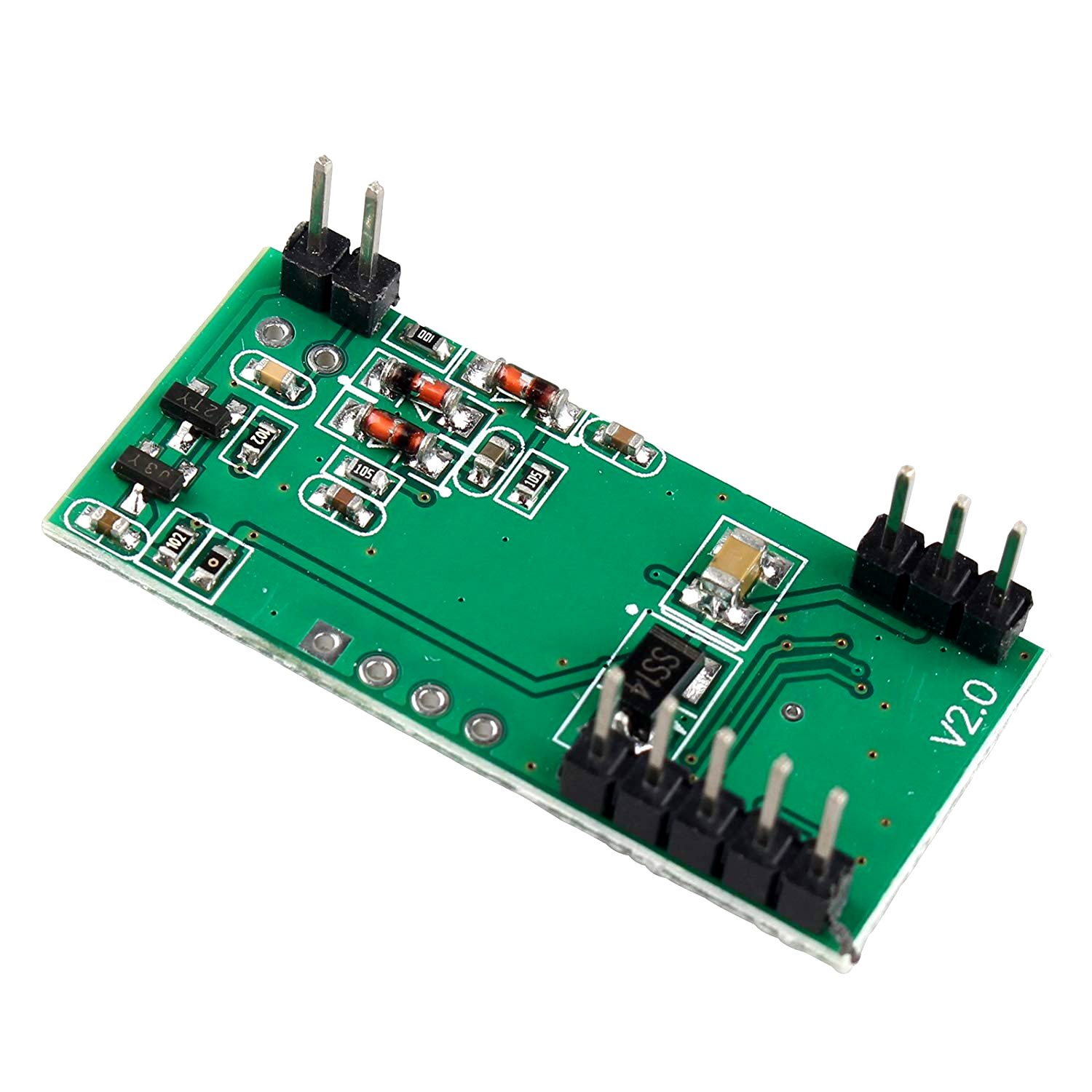

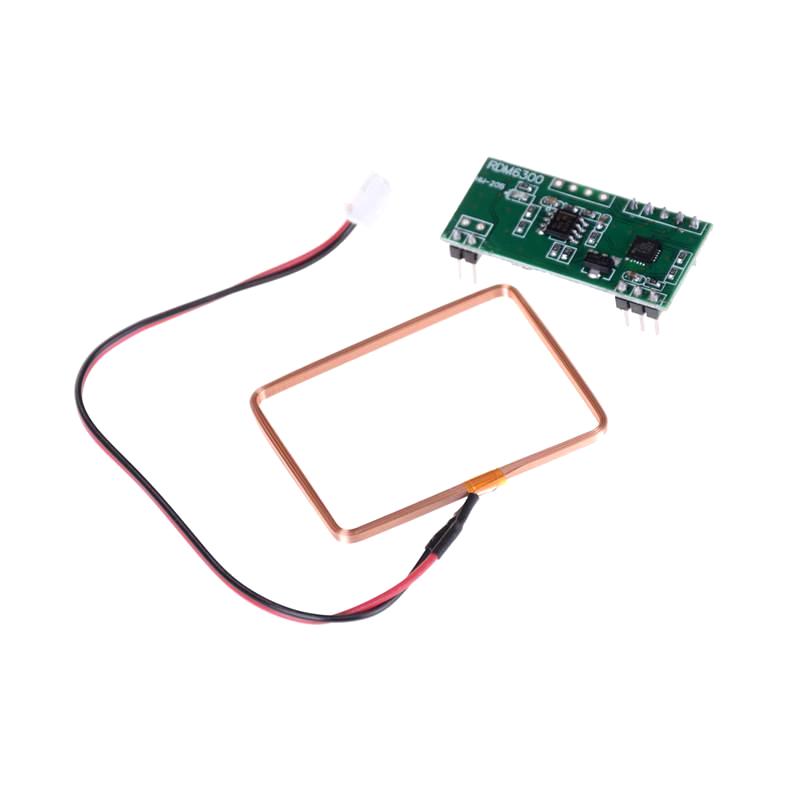

RDM6300 125KHz card reader mini module is designed for reading code from 125KHz card compatible read-only tags and read/write card. It can be applied in office/home security, personal identification, access control, anti-forgery, interactive toy and production control systems etc.
Specifications:

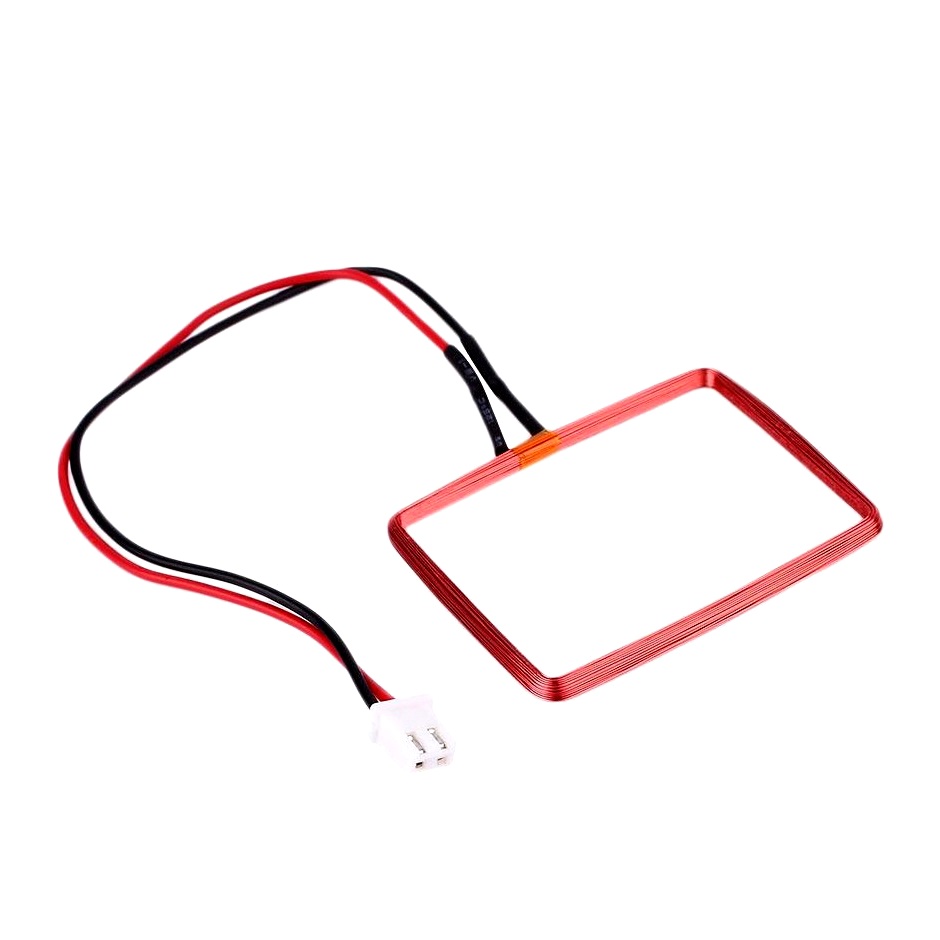

- Support external antenna
- Maximum effective distance up to 50mm
- Less than 100ms decoding time
- Uart interface
- Support EM4100 compatible read only or read/write tags
- Small outline design
| Operating Frequency | 125KHZ |
| Baud Rate | 9600 |
| Interface | TTL level RS232 format |
| Working voltage | DC 5V(+/-5%) |
| Working current | <50mA |
| Receive distance | 20~50mm |
| Working temperature | -10°C~+70°C |
| Storage temperature | -20°C~+80°C |
| Humidity | 0~95% |
| Wiring size: | 46*32*3mm |
| PCB size | 38.5 x 20 mm |
