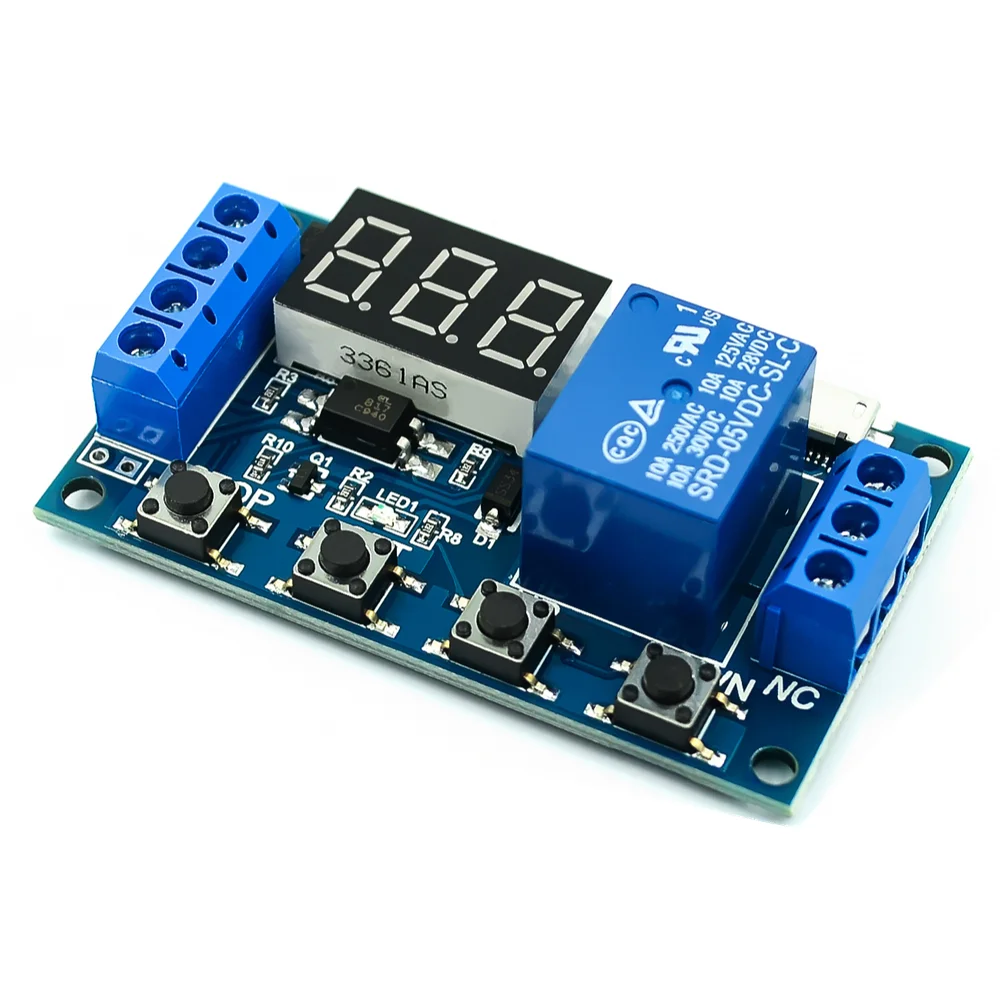

ريلاي تايمر بشاشة للتشغيل والإيقاف بعد وقت محدد

Product Overview

The Relay Module Switch Trigger Time Delay Circuit is a versatile electronic circuit designed to control the activation of a relay with a customizable time delay. It allows you to delay the switching of an electrical load by a preset duration after receiving a trigger signal. This circuit is ideal for automation applications, safety systems, and any project where a timed response is required.



Key Features:

• Adjustable Time Delay:



  • Incorporates a potentiometer or timing components that let you set the delay interval (e.g., from a few seconds up to one minute or more, depending on the design).






• Integrated Relay Module:



  • Controls high-power loads by isolating the control signal from the load circuit, ensuring safe operation.






• Trigger Functionality:



  • Activates the relay only after the designated time delay, preventing unwanted or premature switching.






• LED Indicator:



  • Includes an LED to indicate the circuit status (e.g., power on, delay active, or relay activated).






• Wide Operating Voltage:



  • Suitable for various control systems with common operating voltages (e.g., 5V or 12V systems).






• Easy Integration:



  • Designed for simple connection with microcontrollers and other digital systems, making it a great addition to DIY projects and industrial automation.





Technical Specifications:

• Operating Voltage: Typically 5V – 12V DC (check specific design requirements)


• Adjustable Delay Time: Configurable range (e.g., from 1 second up to 60 seconds or more)


• Relay Contact Rating: May support loads up to 10A at 250V AC (varies by module)


• Trigger Input: Compatible with digital control signals (e.g., from microcontrollers)


• Indicators: Built-in LED(s) for operational status


• Dimensions: Compact design for easy mounting on a PCB or within an enclosure

Applications:

• Home and Industrial Automation:



  • For controlling appliances, motors, and lighting systems with a delayed start or stop.






• Safety Systems:



  • To provide time-based delays in emergency shutoff circuits or warning systems.






• DIY Projects and Prototyping:



  • Ideal for hobbyists looking to implement timed switching in their custom electronics projects.






• Process Control:



  • Used in systems where sequential timing is critical, such as in industrial machinery or automated production lines.





Why Choose This Time Delay Circuit?

The Relay Module Switch Trigger Time Delay Circuit offers a reliable and adjustable solution for managing the activation of high-power devices with precise timing. Its user-friendly design, integrated indicators, and compatibility with common control systems make it an excellent choice for both professional automation and DIY projects.
