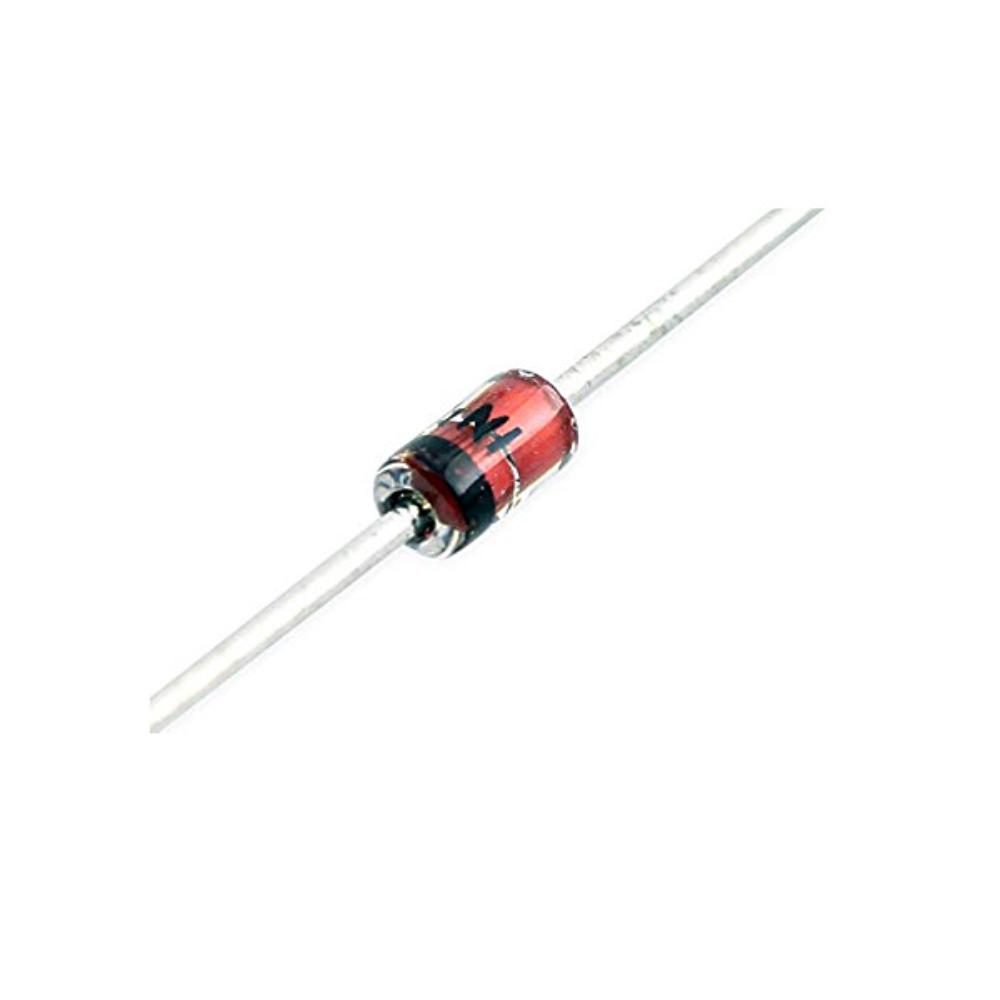

SA14A Unidirectional TVS Diode (14V / 22A)

The SA14A is a specialized Transient Voltage Suppression (TVS) diode housed in a DO-15 axial package, designed to safeguard sensitive electronic circuits from high-energy voltage transients. It is engineered to clamp sudden spikes—such as those induced by lightning, ESD events, or inductive switching—diverting excess energy away from critical components. With a 14V reverse standoff voltage and a rapid response time of less than 1.0 picosecond, it provides robust and predictable protection for modern communication and control systems.

Key Features

•


  High Transient Protection: Capable of handling 500W of peak pulse power (10/1000 micro_s waveform) to absorb heavy electrical stress.





•


  Ultra-Fast Response: Typically reacts in less than 1.0ps, ensuring protection begins before transients can damage downstream ICs.





•


  Low Leakage Current: Features a minimal reverse leakage of 1 micro_A, ensuring negligible power drain during normal operation.





•


  Durable Construction: Built with a glass-passivated junction in a DO-15 axial package for long-term reliability and thermal stability.





•


  Wide Thermal Range: Designed to operate in extreme environments with a junction temperature range of −65°C to +175°C.




Technical Specifications

Applications

•


  Data Line Protection: Ideal for protecting I/O interfaces, serial ports, USB, and CAN bus lines from ESD.





•


  Power Rail Guarding: Secures VCC buses in telecom, networking, and server equipment.





•


  Industrial Controls: Transient suppression for instrumentation and power electronics in harsh environments.





•


  Automotive Systems: Protecting battery management interfaces and electronic control modules.





•


  Consumer Electronics: General-purpose surge protection for high-reliability consumer gadgets.




SA Series Datasheet
