أفوميتر ديجيتال سانوا CD800F

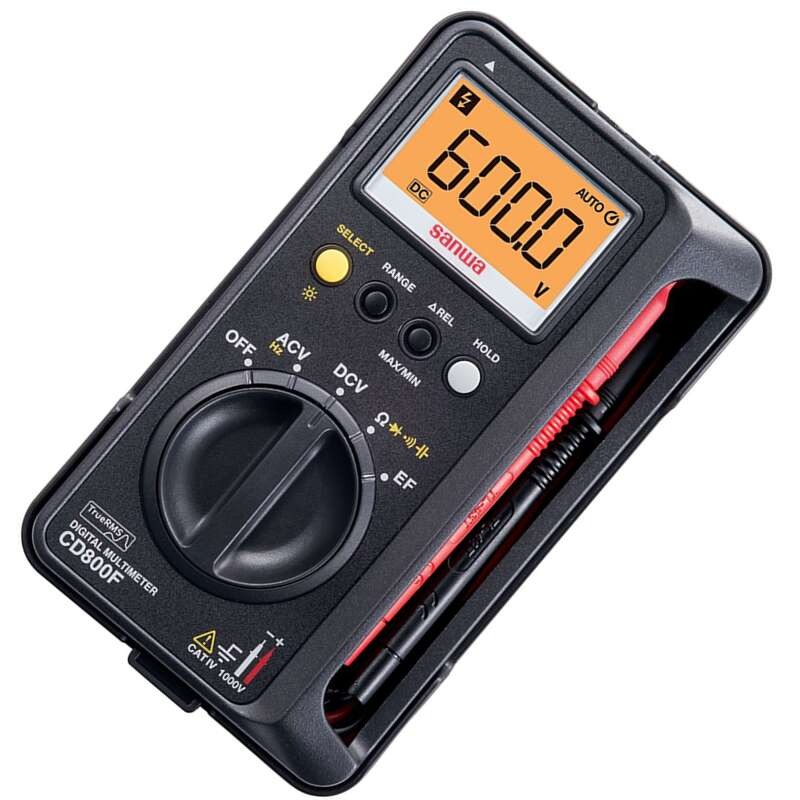

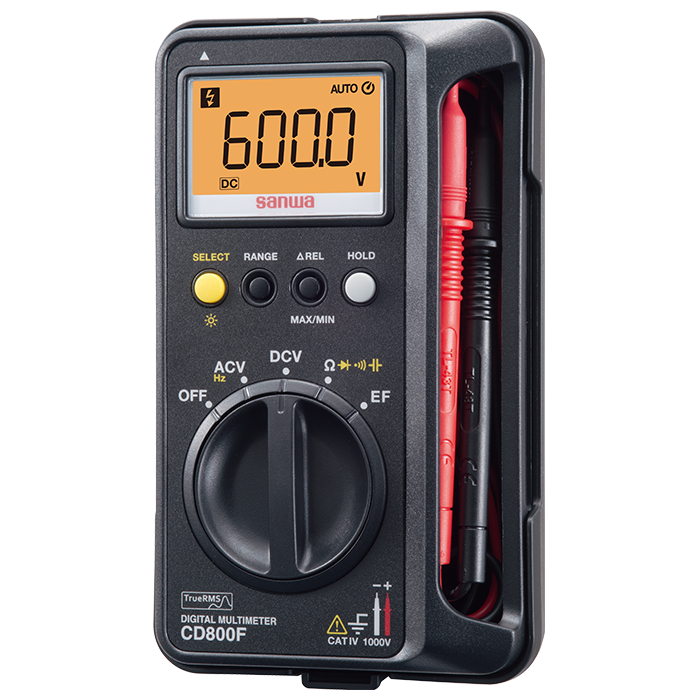

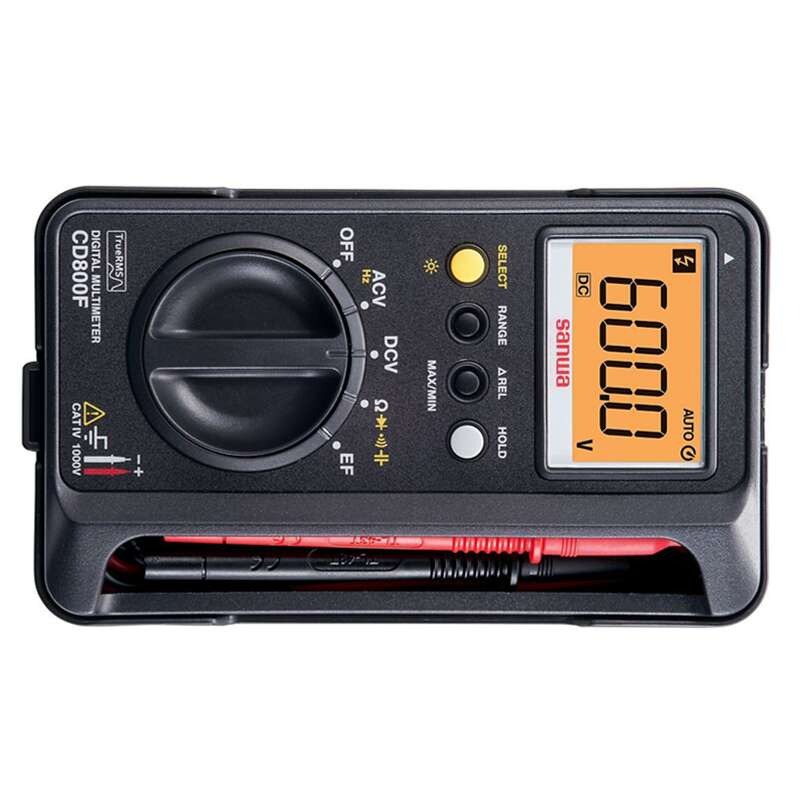

sanwa CD800F Digital Multimeter

The sanwa CD800F Digital Multimeter is a versatile and highly accurate tool designed to measure a wide variety of electrical properties. It features a robust construction, making it suitable for both professional and personal use. It is designed with a user-friendly interface, making it easy to navigate the various functions, from basic voltage readings to more complex capacitance and electric field sensing.

This multimeter uses True RMS technology for AC measurements, ensuring precise readings even for non-sinusoidal waveforms. Its large LCD display with backlight ensures visibility in low-light conditions. Furthermore, the meter’s compact and portable design makes it convenient for fieldwork, while its multiple measurement functions, including AC and DC voltage, resistance, and frequency, cover a wide range of applications.

The CD800F is built with safety in mind, meeting international standards like IEC61010, with protection against overload and other hazards. Its auto power save feature ensures long battery life, automatically turning off the display after a period of inactivity. Additionally, the built-in electric field sensing function provides a unique feature for detecting the presence of electric fields without physical contact.

Features:

• Safety design compliant with IEC61010.


• AC measurements with True RMS conversion.


• High portability due to its integrated case design.


• Backlight for better visibility in dark environments.


• Electric Field (EF) sensing for non-contact voltage detection.


• Data hold and range hold functions.


• MAX/MIN memory for recording maximum and minimum values.


• Auto power save to conserve battery life.

Specifications:

CD800F	Measuring range	Best accuracy	Resolution
DCV:	600m/6/60/600/1000V	±(0.8%+3)	0.1mV
ACV:	6/60/600/1000V	±(1.2%+5)	0.001V
Resistance:	600/6k/60k/600k/6M/60MΩ	±(1.2%+5)	0.1Ω
Capacitance:	60n/600n/6μ/60μ/600μF	±(3.0%+10)	0.01nF
Frequency:	99.99/999.9/9.999k/99.99kHz	±(0.5%+3)	0.01Hz
Continuity:	Buzzer sounds at between 10Ω～50Ω Open voltage: Approx. 1V
Electric field sensing:	At the standard sensing voltage of about 60V or more, the bar graph and intermittent sound vary in 5 steps
Diode test:	Open voltage: approx.3.2V

Display:	numeral display 6000
Sampling rate:	5 times/sec.
Bandwidth:	45～500Hz
Battery:	LR03（1.5V)x2
Battery life:	Approx.600h at DCV range
Size/Mass:	H166×W100×D43mm/360g
Test lead length/Pin tip:	Length: approx. 0.8 m / 19 mm
Safety:	IEC61010 CAT.Ⅳ 1000V

Applications:

• AC Voltage Measurement.


• DC Voltage Measurement.


• Resistance Measurement.


• Capacitance Measurement.


• Frequency Measurement.


• Continuity Testing.


• Diode Testing.


• Electric Field Sensing.
