When looking for a 5-piece soldering iron tip set for a soldering station, many options are available that include a variety of tip shapes and sizes to accommodate different soldering tasks. Below is a popular configuration of soldering iron tips typically included in a 5-piece set, along with their descriptions.

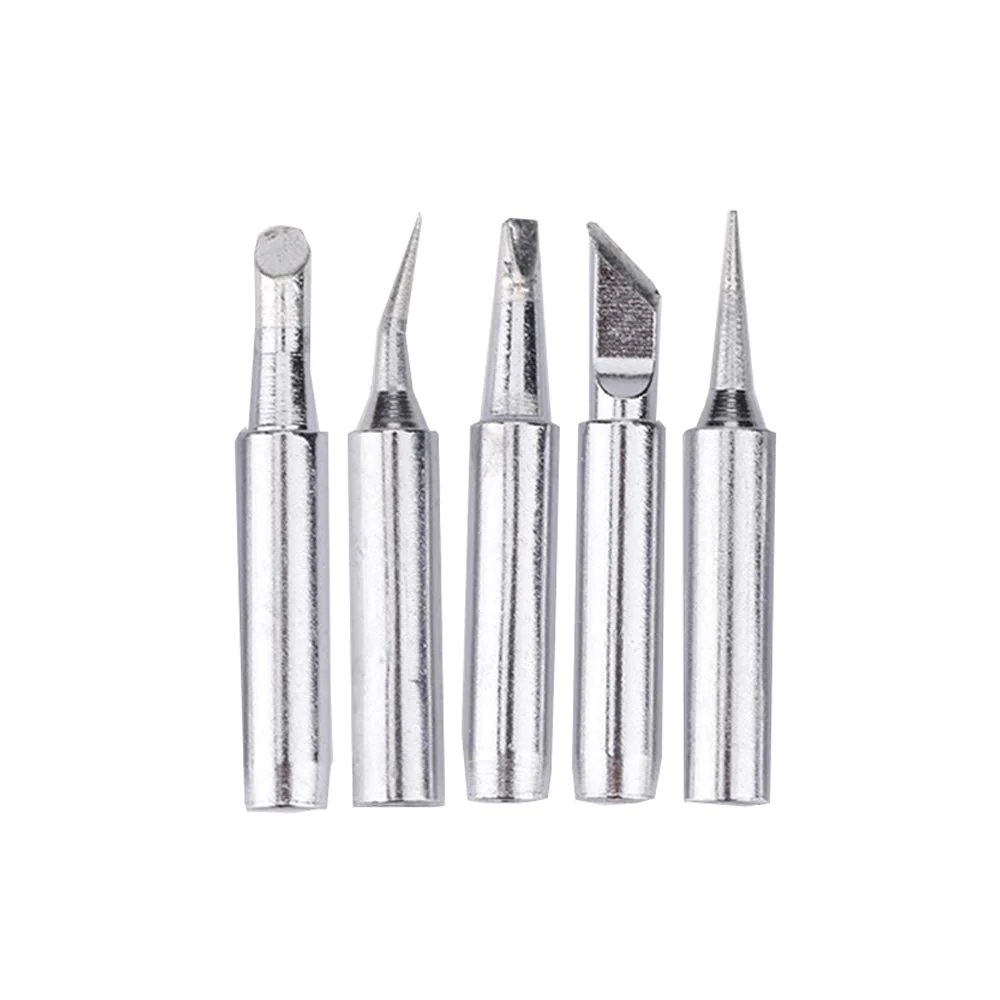

Common 5-Piece Soldering Iron Tip Set
- Conical Tip (e.g., 900M-T-K)
- Description: Fine point for precision soldering and detailed work. Ideal for small components and intricate tasks.
- Chisel Tip (e.g., 900M-T-1.6D)
- Description: A medium chisel tip that is versatile for wider joints. Suitable for general-purpose soldering.
- Wide Chisel Tip (e.g., 900M-T-3C)
- Description: A broader chisel tip designed for larger solder joints and faster heat transfer.
- Bevel Tip (e.g., 900M-T-B)
- Description: Beveled edge for better drag soldering techniques, often used on surface-mounted components.
- Precision Tip (e.g., 900M-T-I)
- Description: A very fine tip for detailed work, essential for soldering in confined spaces or on small components.
Example of a Soldering Iron Tip Set
| Tip Type | Code | Description |
|---|---|---|
| Conical Tip | 900M-T-K | Fine-point tip for precision work |
| Medium Chisel Tip | 900M-T-1.6D | Versatile medium chisel tip |
| Wide Chisel Tip | 900M-T-3C | Wider chisel for larger joints |
| Bevel Tip | 900M-T-B | Beveled surface for drag soldering |
| Precision Tip | 900M-T-I | Fine tip for delicate soldering tasks |
Considerations When Choosing Tips
- Compatibility: Ensure that the tips are compatible with your soldering iron station (e.g., 900M series compatible).
- Material: Look for tips made from durable materials, often plated with iron or other metals to enhance longevity.
- Heating Efficiency: Consider the thermal conductivity and heat retention properties of the tips.
Purchasing Tips
When shopping for a soldering iron tip set, many suppliers and manufacturers, including brands like Weller, Hakko, and others, offer dedicated 5-piece sets. You can find them online through electronics retailers, tool stores, or platforms like Amazon, eBay, etc.
If you have specific brands or types of work in mind, please let me know, and I can provide more tailored advice or recommendations!
