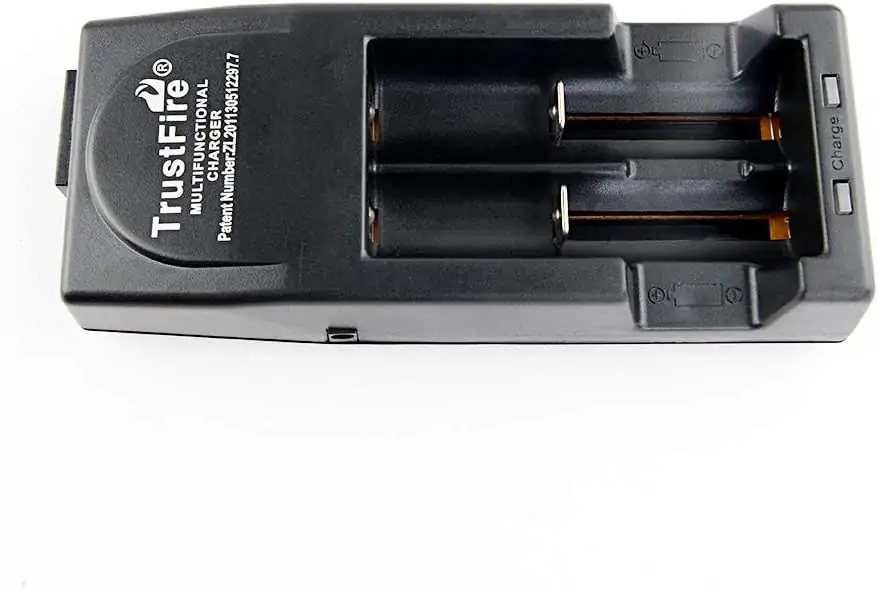

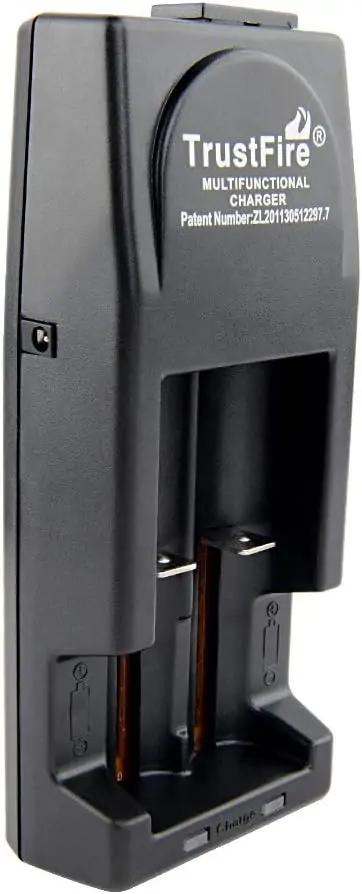

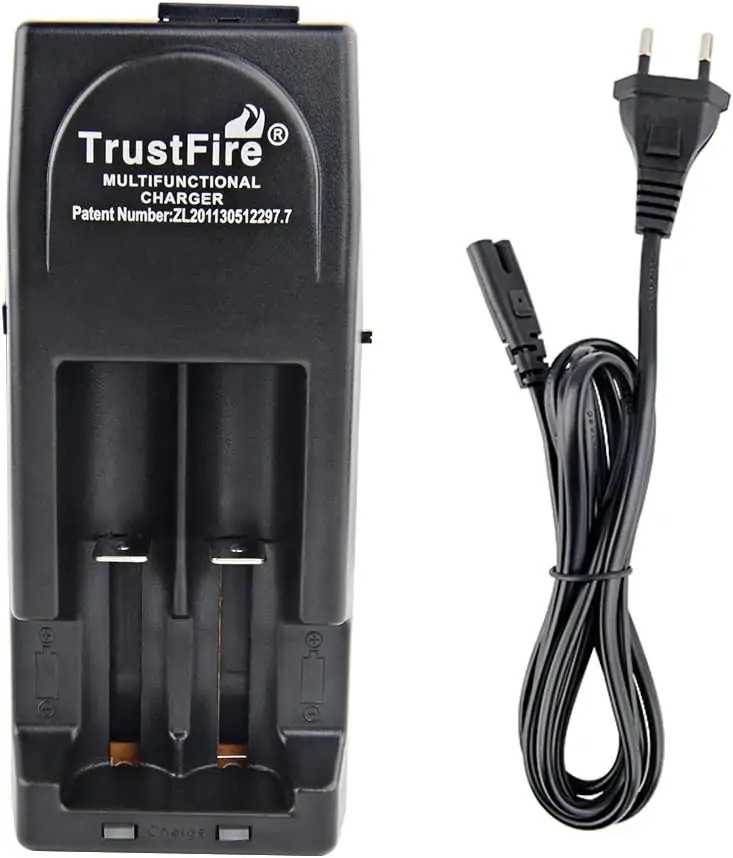

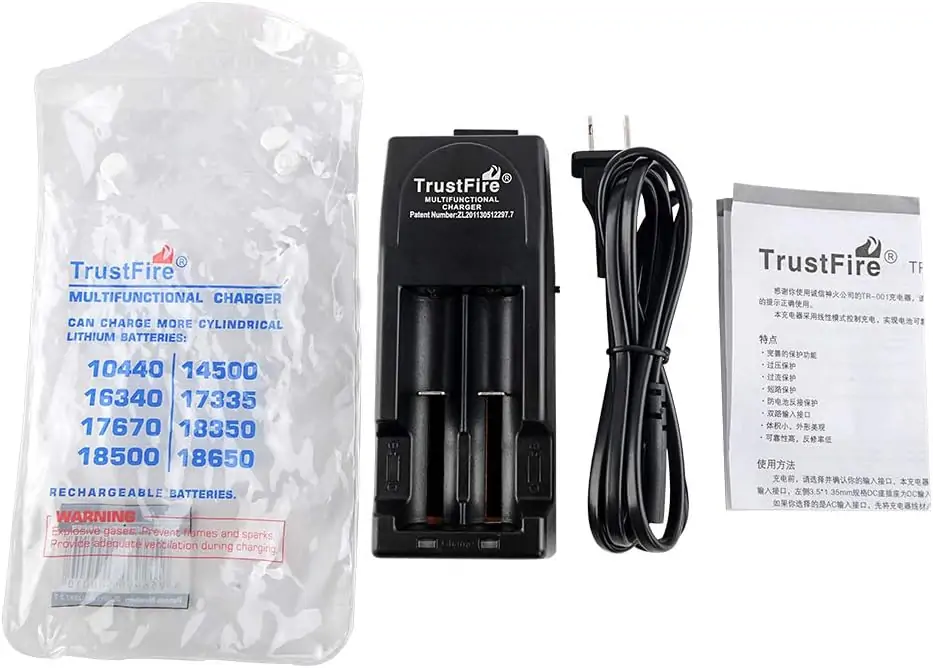

TrustFire TR-001 Dual-Slot Smart Li-ion Charger

The TrustFire TR-001 is a versatile and compact dual-slot smart charger engineered for a wide range of cylindrical lithium-ion (Li-ion) batteries. Designed with independent charging channels, each bay monitors and charges cells separately using a reliable Constant-Current/Constant-Voltage (CC/CV) algorithm. With its broad compatibility and global voltage support, it is an essential tool for maintaining the high-capacity batteries used in robotics, professional flashlights, and portable DIY electronics.

Key Features

•


  Dual Independent Bays: Charge one or two batteries simultaneously with separate LED indicators for each slot.





•


  Wide Compatibility: Supports a vast array of 3.7V/4.2V Li-ion sizes, including 18650, 18500, 18350, 17670, 16340, 14500, and 10440.





•


  Smart Charging Logic: Automatically stops charging once the cells reach a full charge (≈4.2V) to prevent overcharging.





•


  Dual Power Inputs: Features a rear AC socket (100–240V) for wall outlets and a DC barrel jack for 12–24V car adapters or external power supplies.





•


  Safety Protections: Built-in safeguards against reverse-polarity, short-circuits, and overcharging, housed in a vented, non-slip ABS body.




Technical Specifications

Dimensions

Applications

•


  Robotics & Lab Work: Maintaining battery rotations for autonomous platforms like ATLAX or general mechatronics prototyping.





•


  Professional Equipment: Charging cells for high-output flashlights, bike lights, and portable test gear.





•


  Travel & Field Maintenance: Utilizing the DC input for in-car charging during fieldwork.





•


  DIY Projects: Preparing flat-top cells for spot-welding into custom battery packs.
