أفوميتر سيارات محمول متعدد الأغراض يوني تي UT107

Name: أفوميتر سيارات محمول متعدد الأغراض يوني تي UT107
Brand: UNI-T
SKU: 57831
Price: 1450.00 EGP
Availability: InStock

☆☆☆☆☆ 0.0 (مفيش تقييمات) رمز المنتج: 57831

1,450 ج.م

متاح للطلب

الكمية:

اسألنا - نرد عليك على واتساب

يوصلك خلال 72 ساعة

دفع آمن. نقبل: بطاقة بنكية محفظة إلكترونية تقسيط بنكي الدفع عند الاستلام إنستا باي

يُشترى معاً عادةً

هذا المنتج

أفوميتر سيارات محمول متعدد الأغراض يوني تي UT107

1,450 ج.م

الإجمالي

5,710 ج.م

الوصف المواصفات التقييمات (0) الأسئلة الشائعة (0)

عن هذا المنتج

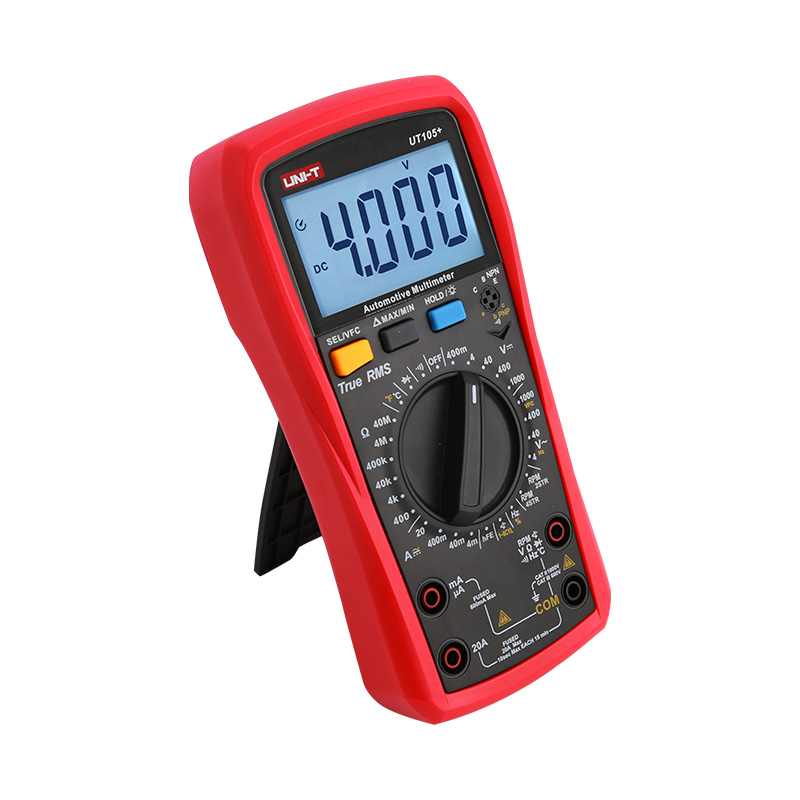

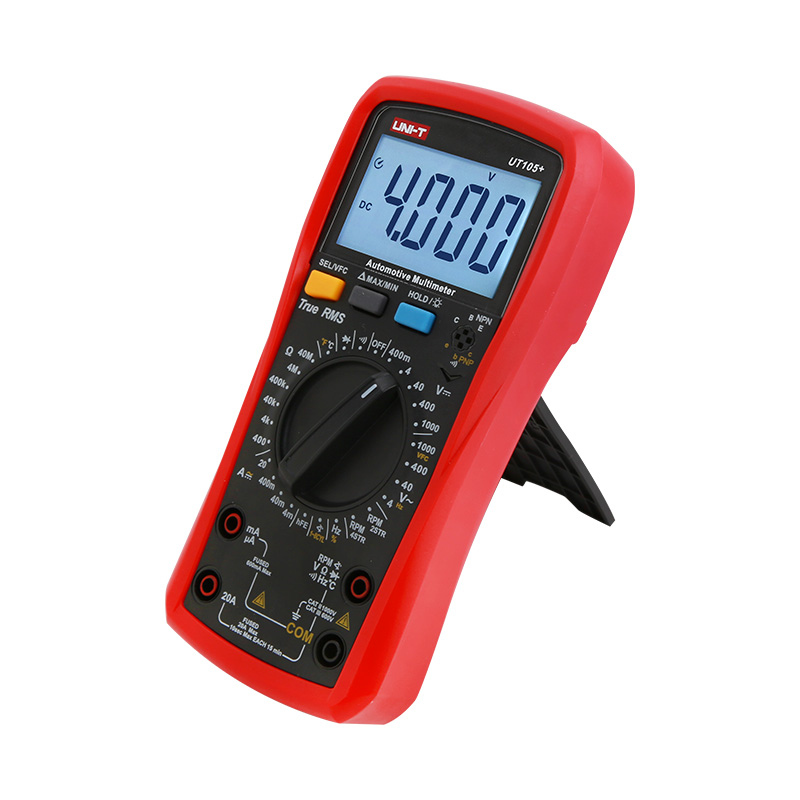

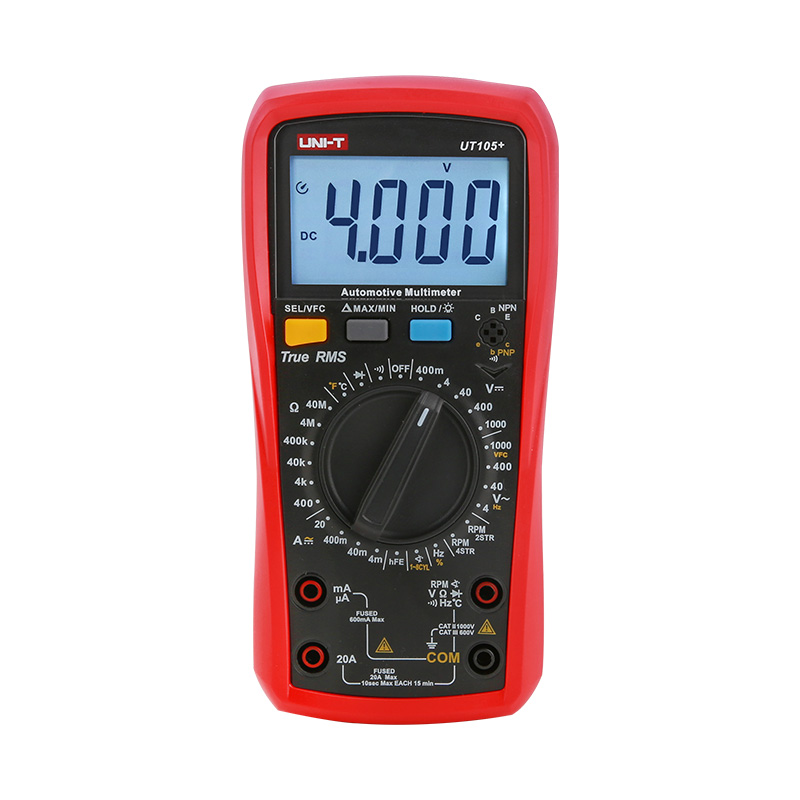

UT105+ and UT107+ Automotive Multimeters have updated measurement functions, accuracy, and meter shell to test conventional and hybrid vehicles. This series contains all the reliable functions of the traditional multimeter and offers RPM, dwell angle, pulse width, and battery test as well.

1000V AC/DC voltage and 10A AC/DC current (20A for 10s max) measurement range is suitable for most of the vehicle and electrical facilities maintenance. Up to 1000V VFC mode enables users to take accurate measurements on variable-frequency motor drives, water pumps, HVAC systems.

UT105+ and UT107+ are both True RMS automotive multimeters that meet CAT II 1000V/CAT III 600V safety rating. UT105+ is designed for basic vehicle troubleshooting with 4000 counts display. UT107+ supports some extra functions, such as battery test, pulse width, capacitance with 6000 counts display.

Features of UT105+/UT107+ Automotive Multimeters

Certificates: CE, UKCA, cETLus

● High-precision: 60000 counts

● True RMS measurement

● AC/DC current: 10A

● AC/DC voltage: 600V

● LoZ, LPF & Auto Volt function

● Audible & Visual Warning

● Bluetooth app supported

● External current clamp supported

● Compact design, easy & convenient operation

● Drop test: 2m

● Magnetic hanger supported (optional)

● Overvoltage category: CAT III 600 V

Specifications of UT105+/UT107+ Automotive Multimeters

Specifications	Range	UT105+	UT107+
DC voltage (V)	400mV/4V/40V/400V/1000V	±(0.5%+3)
600mV/6V/60V/600V/1000V		±(0.5%+3)
AC voltage (V)	4V/40V/400V/1000V	±(0.8%+3)
6V/60V/600V/1000V		±(0.8%+3)
AC current (A)	4mA/40mA/400mA/10A (20A for 10s max)	±(1.0%+8)
6mA/60mA/600mA/10A (20A for 10s max)		±(1.0%+8)
DC current (A)	4mA/40mA/400mA/10A (20A for 10s max)	±(0.8%+8)
6mA/60mA/600mA/10A (20A for 10s max)		±(0.8%+8)
Resistance (Ω)	400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ	±(0.8%+3)
600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ		±(0.8%+3)
Capacitance (F)	6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF		±(3%+10)
Frequency (Hz)	10Hz~10MHz	±(0.1%+5）	±(0.1%+5)
Temperature (℃)	-40℃~1000℃	±(1.0%+3)	±(1.0%+3)
Temperature (℉)	-40℉~1832℉	±(1.5%+5)	±(1.5%+5)
VFC	1000V	±(2.0%+10)	±(2.0%+10)
RPM	2STR	±(3.0%+5)	±(3.0%+5)
4STR	±(3.0%+3)	±(3.0%+3)
Dwell angle	1CYL(0～356.4°)/2CYL(0～178.2°)/3CYL(0～118.8°)/4CYL(0～89.1°)/5CYL(0～71.3°)/6CYL(0～59.4°)/8CYL(0～44.5°)	±(3.0%+5)	±(3.0%+5)
Pulse width	999.9mS		±(1.5%+10)
Features
Display count		4000	6000
Manual range		√	√
Continuity/diode/transistor		√	√
Duty cycle		√	√
High voltage alarm		√	√
High voltage overload alarm		√	√
Large current alarm		√	√
Low battery indication	＜ Approximately 2.4V	√	√
Backlight		√	√
Auto power off	Approximately 15 minutes	√	√
Data hold		√	√
Max/Min/Relative mode		√	√
VFC		√	√
12V battery test			√
Safety rating	CAT II 1000V/CAT III 600V
General Characteristics
Power	AAA 1.5V x2
Product color	Red+Gray
Product net weight	348g (Including batteries)
Product size	183 x 88 x 56mm
Standard accessories	English manual,test leads,batteries,temperature probe
Standard individual packing	Gift box,carrying bag
Standard quantity per carton	20 pcs
Standard carton measurement	420×320×300mm
