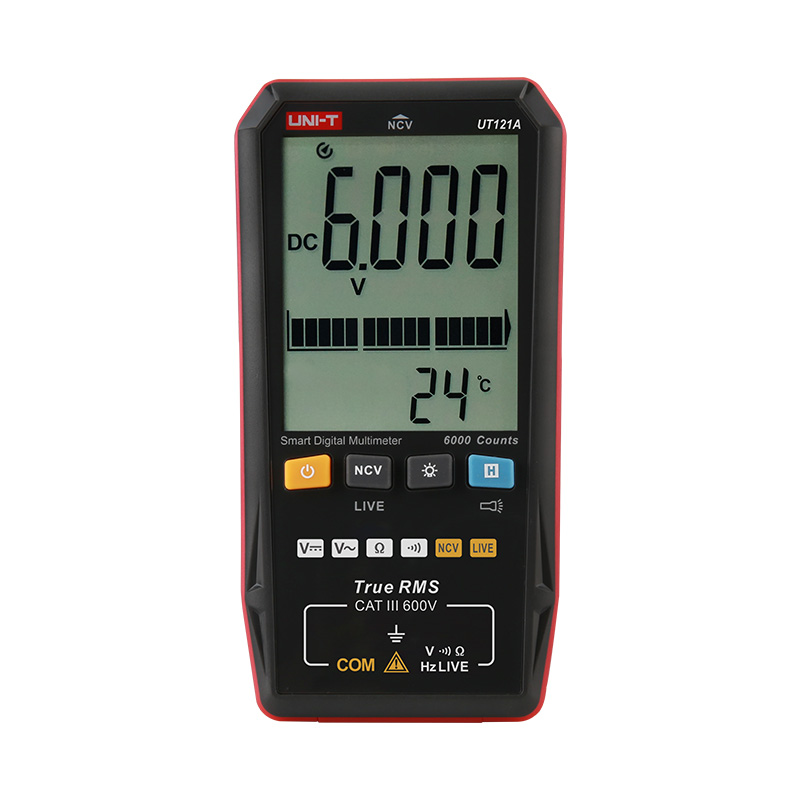

UNI-T UT121A Digital Multimeter

Detailed Overview of the UNI-T UT121A Digital Multimeter

The UNI-T UT121A is a smart digital multimeter designed for a variety of electrical measurement tasks. It combines advanced features with a user-friendly interface, making it suitable for both professionals and hobbyists.

Key Specifications

• Display:
  • Type: 6000-count LCD
  • Dual display capability allows for simultaneous viewing of two measurement results, enhancing usability.
  • Backlight feature for easy reading in low-light conditions.
• Measuring Ranges:
  • DC Voltage: Up to 600V
  • AC Voltage: Up to 600V
  • DC Current: Up to 10A
  • AC Current: Up to 10A
  • Resistance: Up to 60MΩ
  • Capacitance: Up to 99mF
  • Frequency Measurement: Up to 10MHz
  • Temperature Measurement: -40°C to 1000°C (with appropriate thermocouple)

Features

• True RMS Measurement: Provides accurate readings for both AC and DC signals, particularly useful for non-sinusoidal waveforms.
• Auto-Ranging Functionality: Automatically selects the appropriate measurement range based on the input signal, simplifying the measurement process.
• Non-Contact Voltage (NCV) Detection: Safely identifies live wires without direct contact, enhancing user safety during electrical work.
• Data Hold Function: Allows users to freeze the current reading on the display for easier analysis.
• Diode and Continuity Testing: Built-in functions for testing diodes and checking circuit continuity, essential for troubleshooting.
• Full-Scale Input Protection: Protects the multimeter from overloads, ensuring durability and reliability.
• Low Battery Indicator: Alerts users when the battery needs to be replaced.

Build and Design

• Ultra-Thin Profile: The slim design makes it easy to carry and store, ideal for fieldwork.
• Durable Construction: Built to withstand the rigors of daily use in various environments.
• User-Friendly Interface: Simple controls and layout make it accessible for users of all skill levels.

Applications

• Electrical Maintenance: Perfect for electricians and technicians for troubleshooting and repair tasks.
• Home Use: Suitable for DIY enthusiasts working on home electrical projects.
• Educational Purposes: A great tool for students learning about electronics and electrical engineering.

Conclusion

The UNI-T UT121A digital multimeter is a versatile and reliable tool that meets the needs of a wide range of users. With its advanced features, robust design, and accurate measurement capabilities, it is an excellent choice for anyone involved in electrical and electronic work. Whether you’re performing routine measurements or troubleshooting complex systems, the UT121A is equipped to deliver reliable performance.
