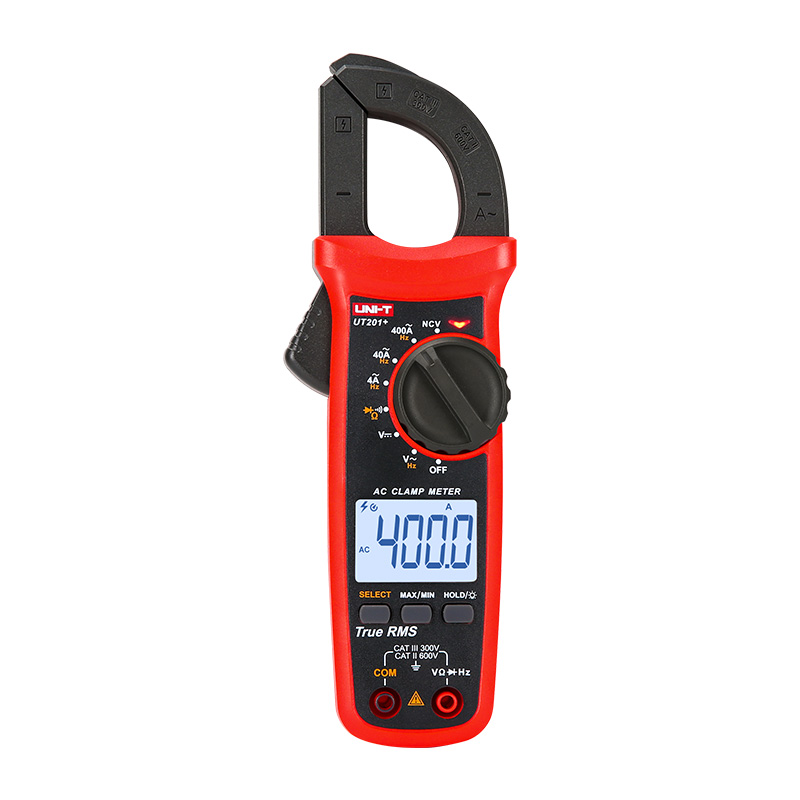

UNI-T UT201+ Digital Clamp Meter

Detailed Overview of the UNI-T UT201+ Digital Clamp Meter

The UNI-T UT201+ is a versatile digital clamp meter designed for measuring electrical parameters in various applications. It is particularly useful for electricians and technicians who require reliable and accurate measurements of AC and DC currents, voltages, and other electrical properties.

Key Specifications

• Display:
  • Type: 4000-count LCD
  • Features a large screen for easy reading of measurements.
• Measuring Ranges:
  • AC Current: Up to 400A
  • DC Voltage: Up to 600V
  • AC Voltage: Up to 600V
  • Resistance: Up to 40MΩ
  • Capacitance: Up to 1000µF
  • Frequency Measurement: 50Hz to 100Hz

Features

• True RMS Measurement: Ensures accurate readings for both AC and DC signals, especially in non-linear loads, which is crucial for modern electrical systems.
• Auto-Ranging Functionality: Automatically selects the appropriate measurement range based on the input signal, simplifying the measurement process.
• Non-Contact Voltage (NCV) Detection: Safely identifies live wires without direct contact, enhancing user safety during electrical work.
• Data Hold Function: Allows users to freeze the current reading on the display for easier analysis.
• Diode and Continuity Testing: Built-in functions for testing diodes and checking circuit continuity, essential for troubleshooting.
• Overvoltage and Overcurrent Protection: Features built-in protection to prevent damage to the meter during high voltage or current measurements.

Build and Design

• Compact and Lightweight: The UT201+ is designed for portability, making it easy to carry and use in various environments.
• Durable Construction: Built to withstand the rigors of daily use, ensuring longevity and reliability.
• User-Friendly Interface: Simple controls and layout make it accessible for users of all skill levels.

Applications

• Electrical Maintenance: Ideal for electricians and technicians for troubleshooting and repair tasks.
• Home Use: Suitable for DIY enthusiasts working on home electrical projects.
• Industrial Applications: Effective for measuring electrical parameters in industrial settings, including HVAC systems and machinery.

Conclusion

The UNI-T UT201+ digital clamp meter is a powerful and reliable tool that meets the needs of a wide range of users. With its advanced features, robust design, and accurate measurement capabilities, it is an excellent choice for anyone involved in electrical and electronic work. Whether you’re performing routine measurements or troubleshooting complex systems, the UT201+ is equipped to deliver dependable performance.
