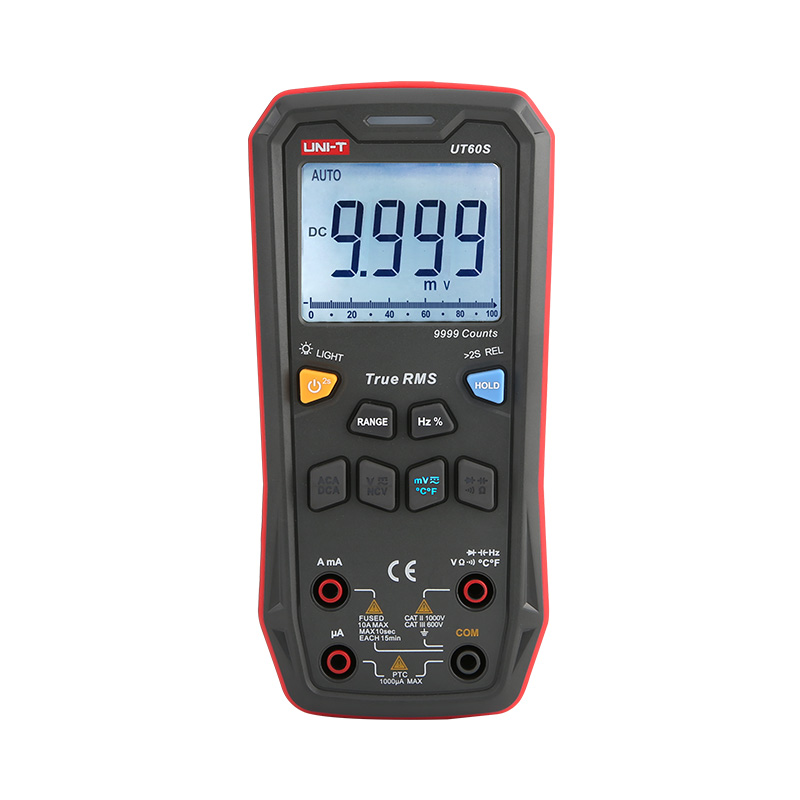

UNI-T UT60S Digital Multimeter

Detailed Overview of the UNI-T UT60S Digital Multimeter

The UNI-T UT60S is a versatile and advanced digital multimeter designed for a wide range of electrical measurement tasks. It is particularly well-suited for both professional and DIY applications, offering a variety of features that enhance its usability and accuracy.

Key Specifications

• Display:
  • Type: 9999-count LCD
  • Features an analog bar graph for visual representation of measurements, making it easier to interpret readings.
  • Backlight for visibility in low-light conditions.
• Measuring Ranges:
  • DC Voltage: Up to 1000V
  • AC Voltage: Up to 1000V
  • DC Current: Up to 10A
  • AC Current: Up to 10A
  • Resistance: Up to 100MΩ
  • Capacitance: Up to 100mF
  • Frequency Measurement: Up to 10MHz
  • Temperature Measurement: -40°C to 1000°C (with appropriate thermocouple)

Features

• True RMS Measurement: Provides accurate readings for both AC and DC signals, especially useful for non-sinusoidal waveforms, ensuring reliable performance in various applications.
• Auto-Ranging Functionality: Automatically selects the appropriate measurement range based on the input signal, simplifying the measurement process for users.
• Non-Contact Voltage (NCV) Detection: Safely identifies live wires without direct contact, enhancing user safety during electrical work.
• Data Hold Function: Allows users to freeze the current reading on the display for easier analysis.
• Diode and Continuity Testing: Built-in functions for testing diodes and checking circuit continuity, essential for troubleshooting electrical issues.
• Low Battery Indicator: Alerts users when the battery needs to be replaced, ensuring the multimeter is always ready for use.

Build and Design

• Compact and Lightweight: The UT60S is designed for portability, making it easy to carry and use in various environments.
• Durable Construction: Built to withstand the rigors of daily use, ensuring longevity and reliability.
• User-Friendly Interface: Simple controls and layout make it accessible for users of all skill levels.

Applications

• Electrical Maintenance: Ideal for electricians and technicians for troubleshooting and repair tasks.
• Home Use: Suitable for DIY enthusiasts working on home electrical projects.
• Educational Purposes: A great tool for students learning about electronics and electrical engineering.

Conclusion

The UNI-T UT60S digital multimeter is a powerful and reliable tool that meets the needs of a wide range of users. With its advanced features, robust design, and accurate measurement capabilities, it is an excellent choice for anyone involved in electrical and electronic work. Whether you’re performing routine measurements or troubleshooting complex systems, the UT60S is equipped to deliver dependable performance.
