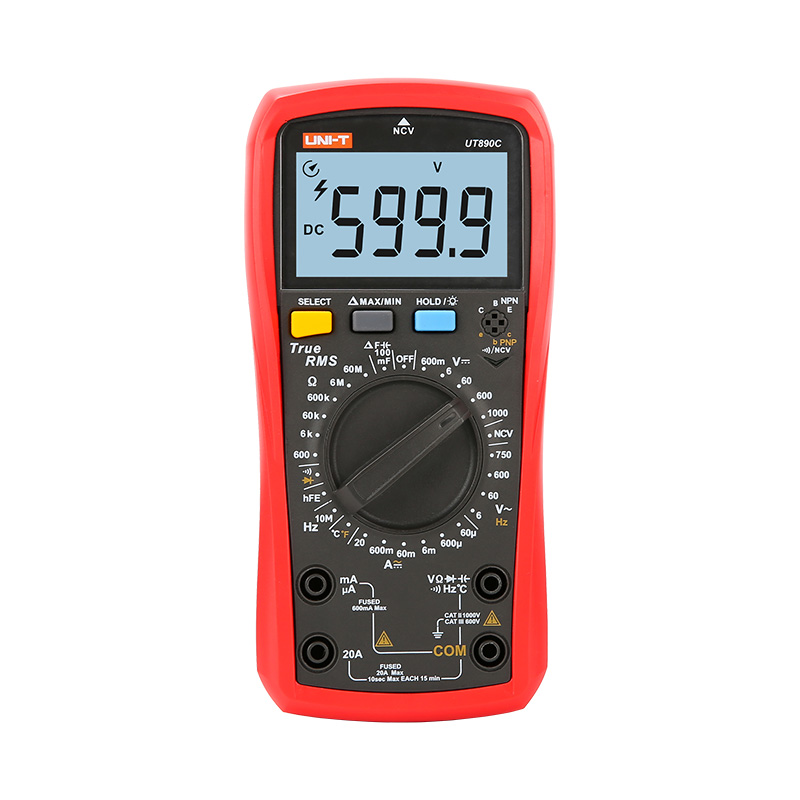

UNI-T UT890C Digital Multimeter

Detailed Overview of the UNI-T UT890C Digital Multimeter

The UNI-T UT890C is a versatile and reliable digital multimeter designed for both professional and industrial applications. It features a true RMS measurement capability, making it suitable for accurately measuring both AC and DC signals, especially in non-linear loads.

Key Specifications

• Display:
  • Type: 6000-count LCD
  • Large display for easy reading of measurements
  • Sampling Rate: Approximately 3 times per second
• Measuring Ranges:
  • DC Voltage: Up to 1000V
  • AC Voltage: Up to 1000V
  • DC Current: Up to 20A
  • AC Current: Up to 20A
  • Resistance: Up to 60MΩ
  • Capacitance: Up to 100mF
  • Frequency Measurement: Up to 10MHz
  • Temperature Measurement: -40°C to 1000°C (with appropriate thermocouple)

Features

• True RMS Measurement: Ensures accurate readings for both AC and DC signals, particularly for non-sinusoidal waveforms, which is essential for modern electrical applications.
• Manual Range Selection: Allows users to select the appropriate measurement range for enhanced accuracy and flexibility.
• Non-Contact Voltage (NCV) Detection: Quickly identifies live wires without direct contact, enhancing safety during electrical work.
• Data Hold Function: Freezes the current reading on the display for easier analysis.
• Audible and Visual Alarms: Alerts users to specific conditions, such as continuity or voltage presence.
• Auto Power Off: Conserves battery life by automatically shutting down after a period of inactivity.
• Diode and Continuity Testing: Built-in functions for testing diodes and checking circuit continuity, essential for troubleshooting.

Build and Design

• Durable Construction: The UT890C is designed to withstand tough working conditions, making it suitable for field use.
• User-Friendly Interface: Simple layout and controls make it accessible for users of all skill levels.
• Compact Size: While not as small as some palm-sized models, it remains portable and easy to handle.

Applications

• Electrical Maintenance: Ideal for electricians and technicians for troubleshooting and repair tasks.
• Industrial Use: Suitable for various industrial applications requiring reliable measurements.
• HVAC Systems: Effective for measuring and diagnosing HVAC equipment.
• Educational Purposes: A great tool for students learning about electronics and electrical engineering.

Conclusion

The UNI-T UT890C digital multimeter is a powerful and versatile tool that meets the needs of a wide range of users. With its advanced features, robust design, and accurate measurement capabilities, it is an excellent choice for anyone involved in electrical and electronic work. Whether you’re performing routine measurements or troubleshooting complex systems, the UT890C is equipped to deliver reliable performance.
