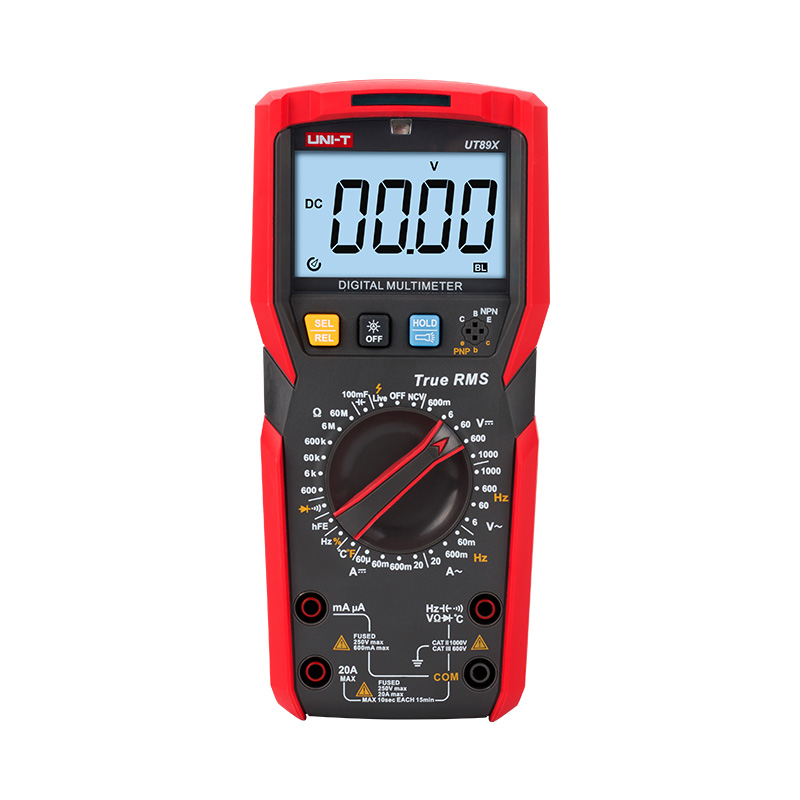

Detailed Overview of the Uni-T Digital Multimeter UT89X

The Uni-T UT89X digital multimeter is a versatile tool widely used in various electrical and electronic applications. Below are detailed specifications, features, and functionalities of the UT89X, providing a comprehensive look at what this multimeter offers.

Key Specifications

• Display:



  • Type: 3 5/6 digit LCD


  • Maximum Display: 19999 counts


  • Backlight: Available for low-light conditions






• Measuring Ranges:



  • DC Voltage: 200mV, 2V, 20V, 200V, 1000V


  • AC Voltage: 200V, 750V (True RMS)


  • DC Current: 20μA, 200μA, 2mA, 20mA, 200mA, 10A


  • AC Current: 20μA, 200μA, 2mA, 20mA, 200mA, 10A (True RMS)


  • Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ


  • Capacitance: 20nF, 200nF, 2μF, 20μF, 200μF, 2000μF


  • Frequency: 10Hz to 10MHz


  • Temperature: -20°C to 1000°C / -4°F to 1832°F (with appropriate thermocouple)





Features

• True RMS Measurement: Ensures accurate measurement of AC signals, especially for non-sinusoidal waveforms.


• Data Hold Function: Allows for holding the current reading on the display for easier analysis.


• MAX/MIN Function: Records the maximum and minimum values during measurements.


• Auto Power Off: Saves battery life by turning off the multimeter after a period of inactivity.


• Relative Measurement Mode: Enables users to perform relative measurements against a set reference value.


• Diode Test & Continuity Test: Built-in functionality for testing diodes and checking continuity in circuits.


• Data Logging: Some models may support data logging features to track measurements over time.


• Low Battery Indicator: Alerts users when the battery needs to be replaced.

Build and Design

• Construction: The UT89X is designed with a robust casing that can withstand drops and tough working conditions.


• Size and Weight: Compact and lightweight, making it easy to carry and handle.


• Input Protection: Features built-in protection against overvoltage conditions to ensure user safety.

Accessories Included

• Test Leads: High-quality probes for accurate measurements.


• Thermocouple: For temperature measurement (if applicable).


• User Manual: Comprehensive guide for using the multimeter effectively.

Applications

• Electrical Work: Ideal for electricians and technicians for troubleshooting and repair.


• Electronics: Useful for hobbyists and professionals in electronics design and testing.


• Industrial Use: Suitable for use in industrial settings for maintenance and repair tasks.

Conclusion

The Uni-T UT89X digital multimeter is an advanced tool that caters to a wide range of measurement needs. With its comprehensive set of features and robust design, it's an excellent choice for both professionals and enthusiasts in the electrical and electronics fields. Whether you're performing routine measurements or troubleshooting complex systems, the UT89X is equipped to deliver reliable performance.
