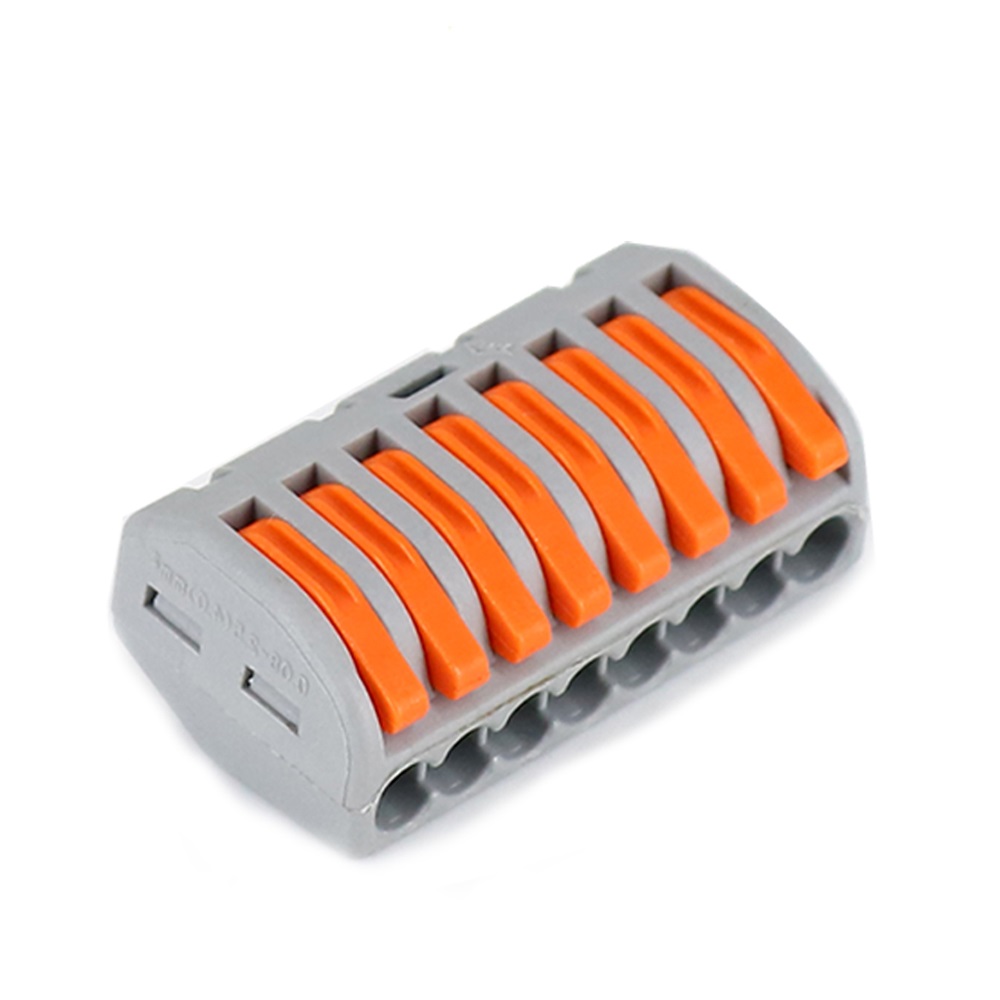

WAGO Connector PCT-218 Push-In Terminals for Cable Connection 8 Pin

Overview of WAGO Connector PCT-218 Push-In Terminals

The WAGO Connector PCT-218 is a highly efficient push-in terminal designed for cable connections, featuring an 8-pin configuration. This connector is ideal for applications that require connecting multiple wires securely and effectively.

Key Specifications

• Configuration: The PCT-218 allows for one input wire and seven output wires, making it suitable for various wiring setups where multiple outputs are needed from a single source.
• Wire Compatibility: It accommodates wire sizes ranging from 0.08 mm² to 2.5 mm² for solid wires and up to 4.0 mm² for stranded wires, providing versatility for different applications.
• Voltage and Current Ratings: The connector is rated for a maximum voltage of 400V and can handle a peak current of 32A, ensuring safe and reliable electrical connections 1.

Features

• Push-In Technology: The push-in design allows for quick and tool-free wire insertion, significantly speeding up the installation process. This feature is particularly beneficial for projects requiring rapid assembly.
• Compact Size: The PCT-218’s compact dimensions of 41×20.5×14.5 mm make it easy to fit into tight spaces, which is essential for organized wiring in control panels and junction boxes.
• Flame-Retardant Material: Constructed from flame-retardant insulating materials, the connector ensures safety and durability in various electrical environments 2.

Applications

• Electrical Installations: Ideal for residential, commercial, and industrial electrical systems where multiple connections are needed from a single source.
• Control Panels: Commonly used in control panels for machinery and equipment, providing a secure and organized wiring solution.
• DIY Projects: Suitable for hobbyists and DIY enthusiasts looking to create custom electrical projects with ease.

Conclusion

The WAGO Connector PCT-218 push-in terminals are an excellent choice for anyone needing a reliable and efficient solution for cable connections. With its robust design, ease of use, and ability to handle various wire types, it is a valuable component for both professional and DIY electrical projects. Whether for industrial applications or home wiring, the PCT-218 ensures secure and efficient connections, simplifying wiring tasks.
