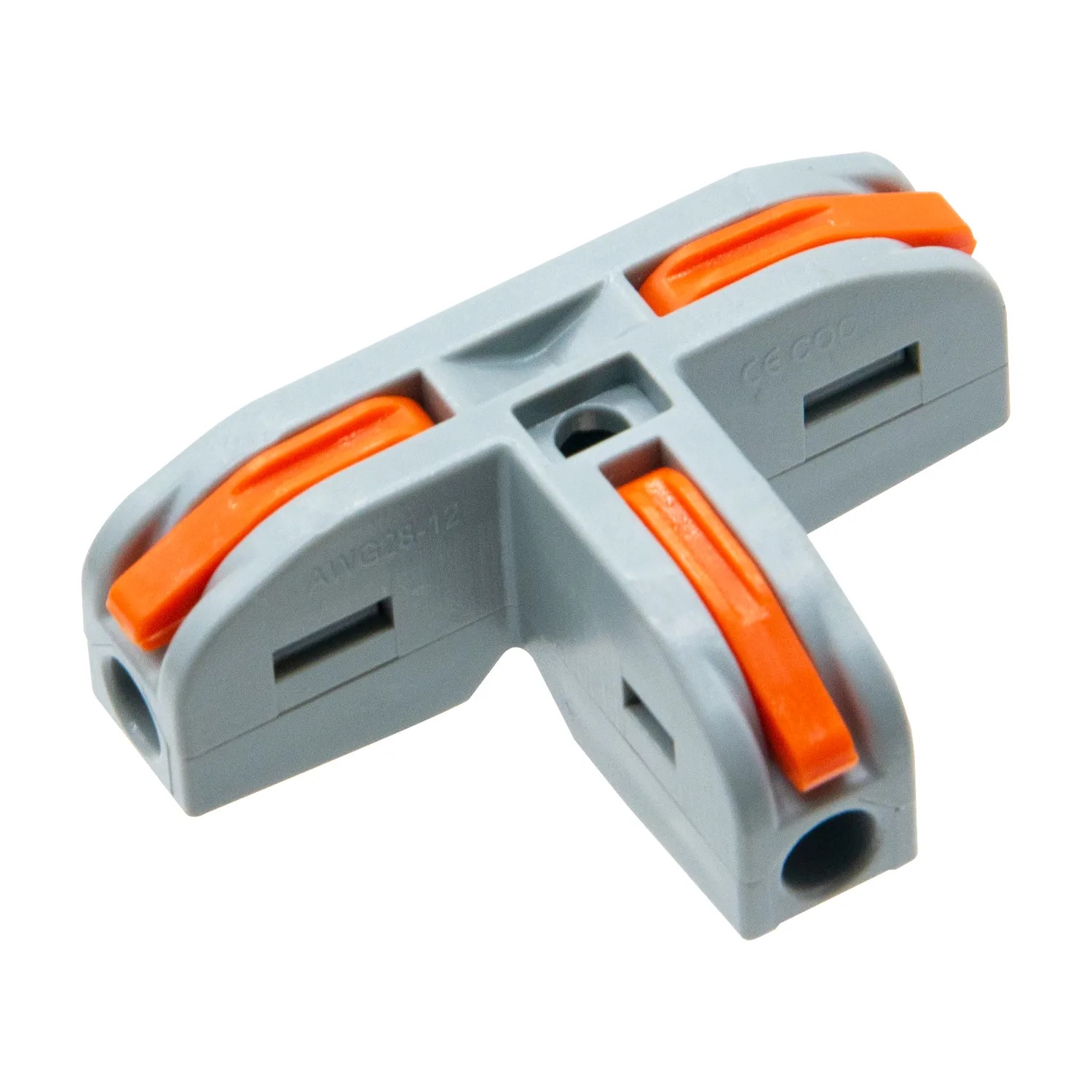

كونيكتور WAGO دفعي على شكل T مدخل 1 مخرج 2 موديل: PCT-112

Product Overview

The WAGO Connector T-Type PCT-112 Push-In Terminals for Cable Connection 1 In 2 Out is an innovative and reliable electrical connector designed for fast and secure cable connections. Featuring push-in technology, this connector allows for easy and tool-free wire insertion, ensuring a solid connection every time. With its T-type design, it splits a single input wire into two outputs, making it perfect for wiring installations that require branching or splitting. Ideal for electrical panels, junction boxes, and other applications requiring efficient and safe wire connections.

Key Features

1. Push-In Technology: Allows for quick, tool-free wire insertion and secure connections.


2. T-Type Design: Splits a single input connection into two output connections.


3. Versatile Use: Suitable for various wire sizes and types.


4. Compact Size: Space-efficient design for easy installation in tight spaces.


5. High Safety Standards: Designed to meet industry safety and performance standards.


6. Durable Material: Made from high-quality, long-lasting materials for reliability.

Technical Specifications

1. Type: T-Type connector with push-in terminals.


2. Input: 1 wire connection.


3. Output: 2 wire connections.


4. Wire Size Compatibility: 0.2 mm² to 4 mm² (24 AWG to 12 AWG).


5. Voltage Rating: Up to 400V.


6. Current Rating: Up to 24A.


7. Temperature Rating: -40°C to 85°C.


8. Material: Polyamide housing, brass contacts.


9. Color: Transparent housing for easy inspection.

Benefits

1. Tool-Free Installation: Quick and simple wire insertion without the need for tools.


2. Secure Connections: Push-in design ensures stable, vibration-resistant connections.


3. Space-Saving: T-type design optimizes space and simplifies wiring setups.


4. Wide Compatibility: Works with a variety of wire sizes for versatile applications.


5. Durability: Built to last with robust materials that withstand various environmental conditions.

Usage Instructions

1. Preparation: Strip the wire to the appropriate length (recommended 8-9 mm).


2. Insertion: Insert the stripped wire into the push-in terminal until it clicks into place.


3. Connection: Ensure the wire is fully inserted and securely connected.


4. Disconnection: To remove the wire, press the release tab and pull the wire out.

Safety & Storage

1. Handling: Handle the connector with care to avoid damaging the terminal.


2. Storage: Keep in a dry, cool place away from direct sunlight.


3. Precautions: Always ensure the connector is used within its rated voltage and current limits.

Applications

1. Electrical installations in residential and commercial buildings.


2. Junction boxes and distribution boards.


3. Industrial machinery and equipment wiring.


4. Automotive and transportation wiring.


5. DIY electrical projects and repairs.

Why Choose WAGO Connector T-Type PCT-112?

The WAGO Connector T-Type PCT-112 offers an efficient, easy-to-use solution for creating reliable and secure electrical connections. Its push-in technology, compact design, and versatility make it an ideal choice for a wide range of applications where reliable wiring and ease of use are critical.
