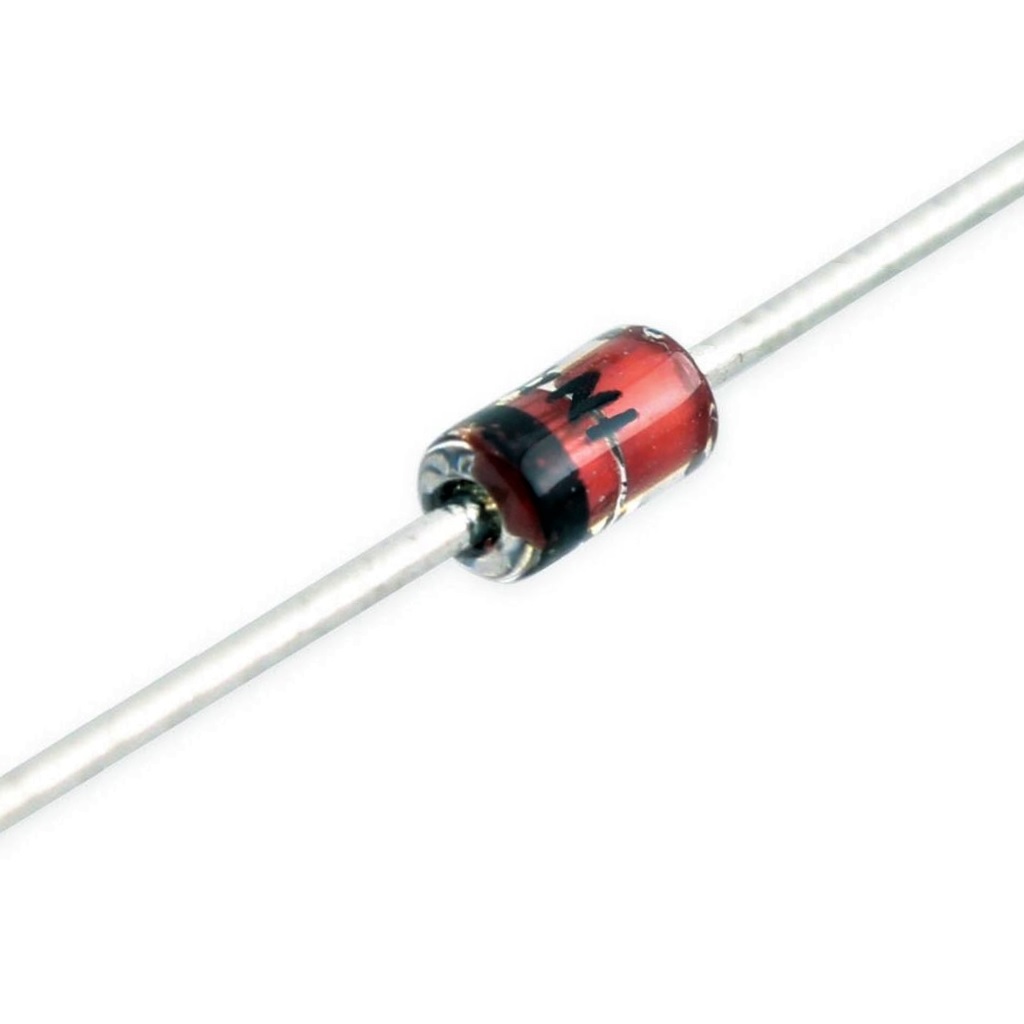

دايود زينر 8.2 فولت نصف وات

Product Overview

The 8.2V 1/2W Zener Diode is a reliable voltage regulator component designed for precise voltage clamping in electronic circuits. It is widely used in voltage regulation, protection circuits, and waveform shaping. With a power dissipation of 0.5W (1/2W), this diode is ideal for low to medium-power applications, ensuring stable operation in various electronic devices.

Key Features

• 8.2V Zener Voltage – Provides a stable 8.2V regulation.


• 1/2W Power Rating – Handles up to 0.5W of power dissipation.


• Low Leakage Current – Ensures minimal power loss in standby mode.


• High Reliability – Designed for long-term stability in electronic circuits.


• Compact DO-35 Package – Suitable for space-constrained PCB designs.


• Wide Operating Temperature Range – Performs well in varying environmental conditions.

Technical Specifications

• Zener Voltage: 8.2V


• Power Dissipation: 500mW (1/2W)


• Voltage Tolerance: ±5% (typical)


• Max Reverse Current (at VR): ≤ 5µA


• Operating Temperature: -55°C to 150°C


• Package Type: DO-35


• Mounting Type: Through-Hole

Applications

• Voltage Regulation – Provides stable reference voltage in circuits.


• Overvoltage Protection – Protects sensitive components from voltage spikes.


• Waveform Clipping – Shapes signal waveforms in communication circuits.


• Power Supply Circuits – Used for maintaining a constant voltage in DC power supplies.


• Electronic Testing & Calibration – Helps in setting reference voltages for test equipment.

Why Choose the 8.2V 1/2W Zener Diode?

This 8.2V Zener Diode is an essential component for engineers and hobbyists who need reliable voltage regulation and circuit protection. Its high stability, compact size, and wide range of applications make it a valuable addition to any electronic project.
