شاسيه روبوت بعجلتين (2WD) فقط

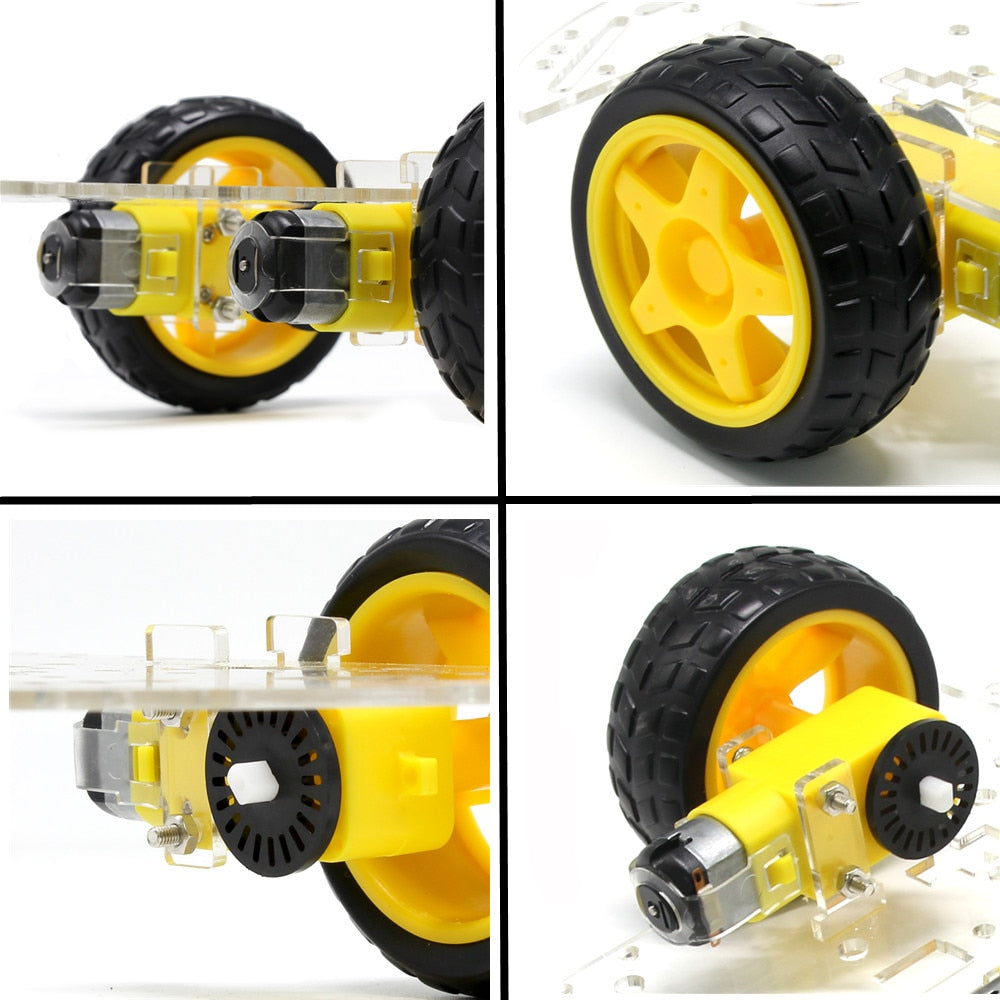

This is a Longer version of 4 wd double-layer smart car chassis. It comes with the four pairs of Geared Motors and Wheels. All the products included in this car kit are quality products. The chassis used in this kit is transparent to create dynamic handling of the components mounted on your robotic vehicle.

For more robotic vehicle kits, check out our Robots and Kits category.

Features :
Very handy and simple in assembling/disassembling.
Strong components to withstand extreme terrain conditions.
Transparent Car Chassis.
Attractive design.
Double-layer structure, much of mounting holes, enough space
Easy to install a variety of control panels, sensors
Educational toys, Ideal for the DIY platform
Specifications:

For BO Motor:
Operating Voltage: 3V~6V DC
Gear Ratio 1:48
No-load speed(5V): about 208RPM
Rated Torque: 0.8 Kg.cm @ 5V
Load current: 170mA (when it is 4.5V)
Size: 70 x 23 x 18 mm
Weight:28g
Shaft Length: 10 mm
Shaft Type: 6 mm, Double-D

For Wheel:
Loading Capacity: Max 2.5Kg
Double D-hole For BO Motor: 6 mm
Weight: 34g
Wheel Diameter: 65 mm
Color: Black (Tyre), Yellow (Rim)
Wheel width: 27 mm
Body Material: Plastic
Grip Material: Rubber

Package includes:

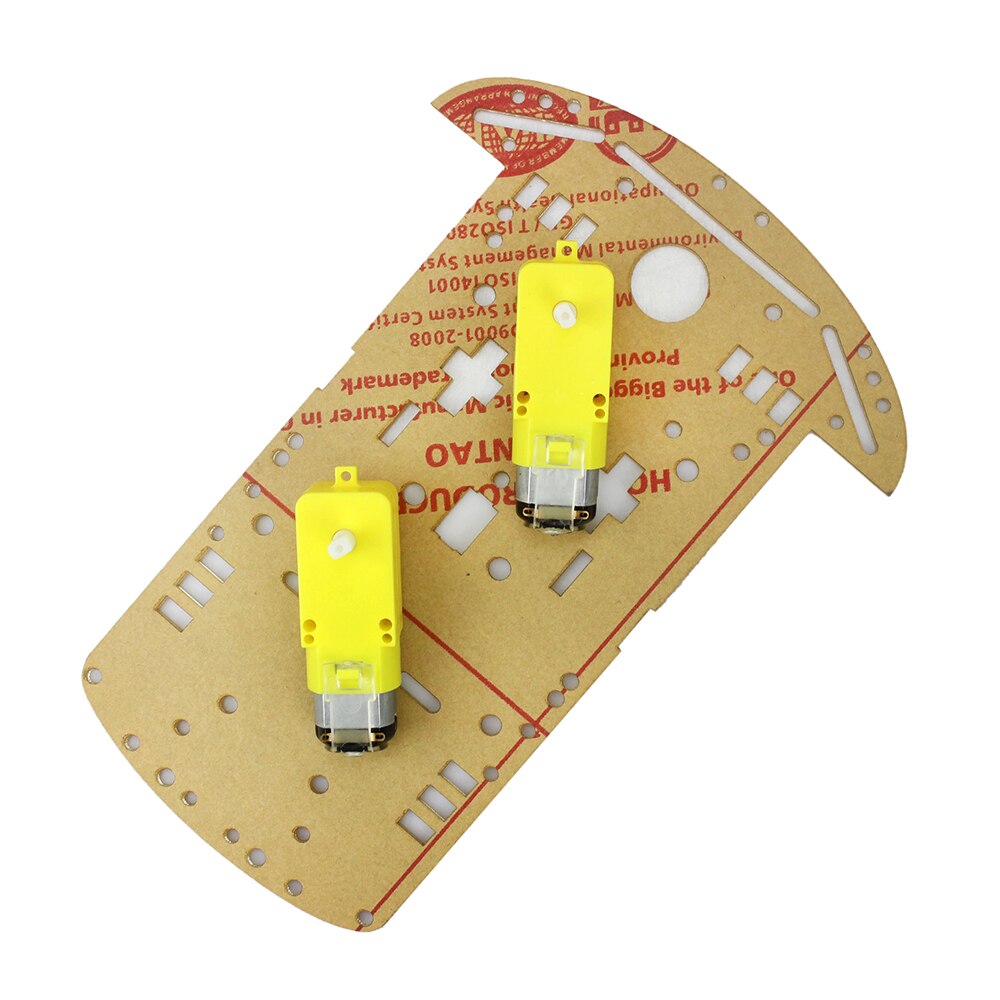

2 x Acrylic Transparent car floor
4 x Acrylic Fasteners
6 x M3 Flat-Head Bolt (Length: 3cm )
12 x M3 Nut

,
