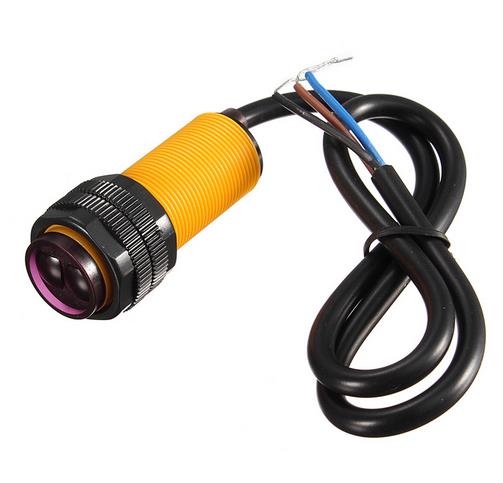

سينسور مسافة تقاربي بالأشعة تحت الحمراء E18-D80NK مدى 3 إلى 80 سم 5 فولت

E18-D80NK Infrared Obstacle Avoidance Photoelectric Sensor Proximity Switch 3-80cm Detection Range Adjustable Promotion

Description:

This is a set of transmitter and receiver in one of the photoelectric sensor.
The detection distance can be adjusted upon request.
The sensor has a detection distance and the visible light interference,
easy to assemble, easy to use features of robot obstacle avoidance,
and assembly line piece can be widely used in many occasions.
Electrical Characteristics:
U: 5V
I: The 100mA
Sn :3-80CM
Size:
Diameter: 17MM
Sensor length: 45MM
Lead Length: 45CM

Applications:

1, A production line goods automatic counting device
2, multi-functional reminder
3, the maze robot
photoelectric switch E18:
1, the output current, output, / SCR / Relay Control: 100mA/5V supply
2 Current consumption <25mA
3, response time <2ms
4, point angle: more than15 °, the effective distance is adjustable from 3-80CM
5,To detect objects: a transparent or opaque body
6, the working environment temperature: -25 °C ~ 55 °C
7, the standard detection object: sunlight 10000LX is the following incandescent 3000LX below
8, Case Material: Plastic

,,
