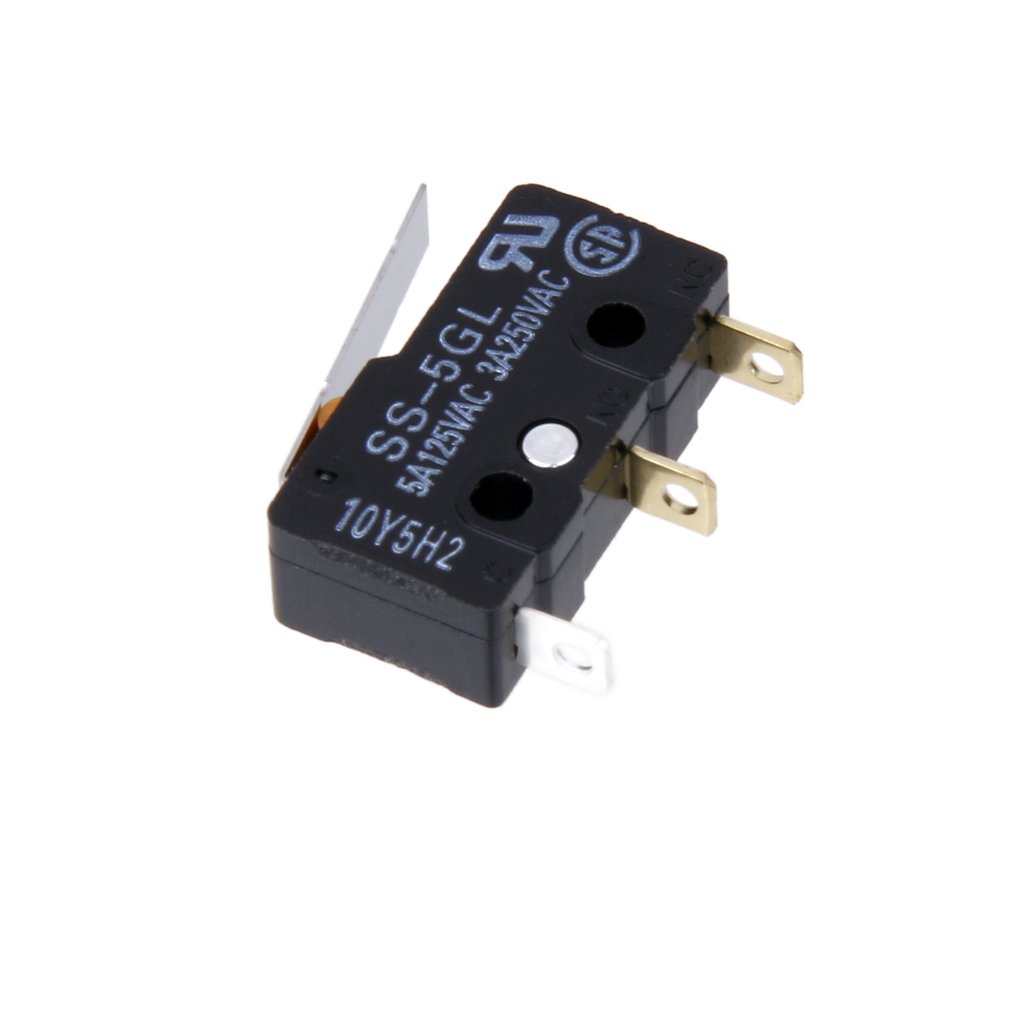

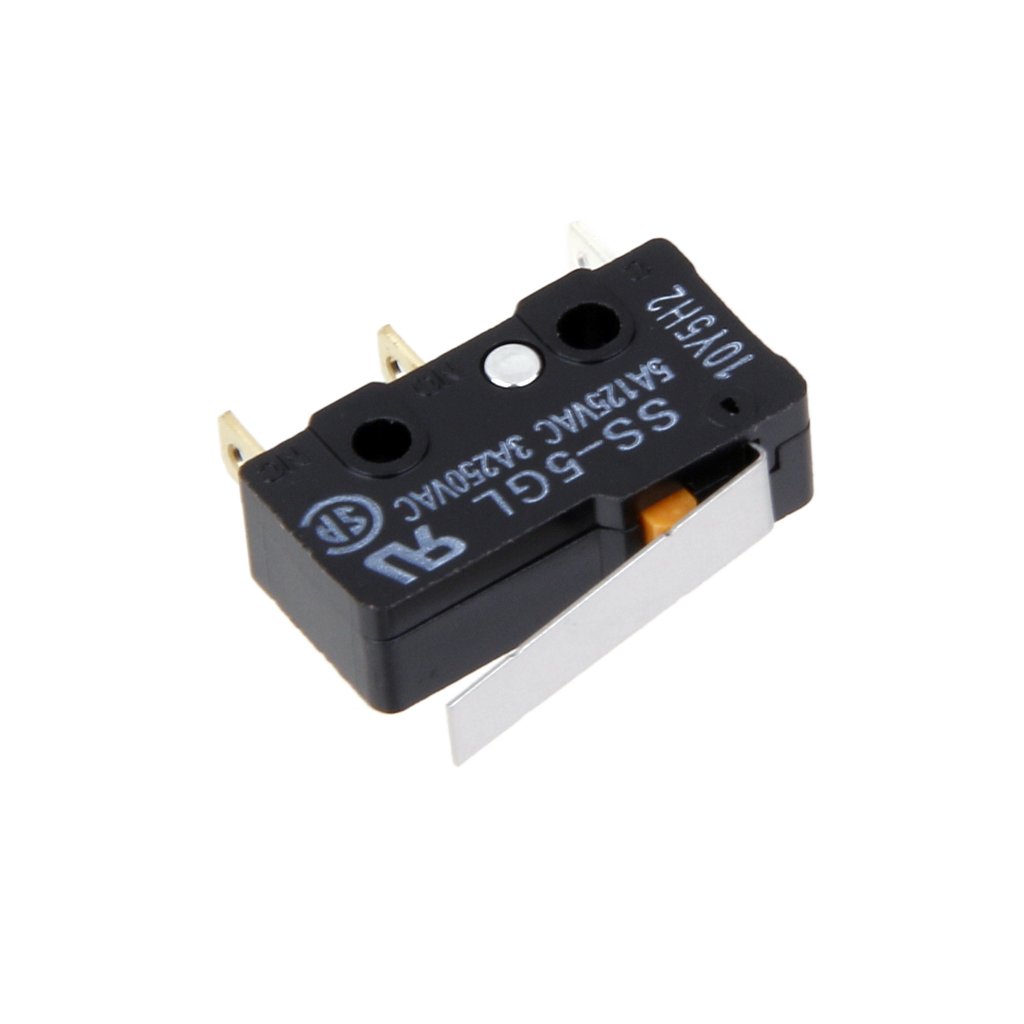

ليميت سويتش مايكرو طويل الذراع 17 مم SPDT 3 طرف 250 فولت 5 أمبير

Product Overview

The Arm Lever 17mm, 250V 5A SPDT 3-Pin Momentary Plastic Micro Limit Switch is a high-quality, reliable switch designed for use in various electronic and electrical applications. With a compact design and momentary action, this switch is ideal for controlling circuits in systems where brief contacts are required. It features a 17mm lever arm for easy activation and is rated for up to 250V and 5A. Its plastic construction ensures durability, making it suitable for long-term use in both industrial and consumer devices.

Key Features

1. Momentary Action: Provides a brief contact, ideal for temporary switching needs.


2. High Voltage and Current Rating: Rated for 250V and 5A, suitable for a wide range of applications.


3. SPDT (Single Pole Double Throw): Allows for switching between two outputs.


4. Compact and Durable Design: Plastic body and 17mm arm lever for durability and ease of use.


5. 3-Pin Configuration: Simple installation with three pins for easy wiring.


6. Wide Application: Perfect for use in industrial equipment, home appliances, and robotics.

Technical Specifications

1. Operating Voltage: 250V.


2. Current Rating: 5A.


3. Switch Type: SPDT (Single Pole Double Throw).


4. Pin Configuration: 3 Pins.


5. Lever Length: 17mm.


6. Material: Plastic body with metal lever.


7. Actuation Type: Momentary (press-and-release).


8. Temperature Range: -25°C to +85°C.

Benefits

1. Versatile: Works in a variety of circuits and devices, including robotics and household appliances.


2. Compact: Small size fits in tight spaces, making it ideal for compact applications.


3. Durable: Plastic body and robust design ensure a long lifespan.


4. High Current Capability: Can handle up to 5A, allowing for more powerful applications.


5. Easy Installation: The 3-pin configuration makes it simple to integrate into your systems.

Usage Instructions

1. Wiring: Connect the three pins to your circuit, ensuring correct polarity for proper operation.


2. Activation: Press the lever to temporarily activate the switch, and release it to return to its default position.


3. Mounting: Secure the switch in a suitable location within your system to ensure proper function.


4. Maintenance: Regularly check the switch for any signs of wear and tear to maintain optimal performance.

Safety & Storage

1. Handling: Handle with care to avoid damaging the switch.


2. Storage: Store in a dry and cool place to prevent any damage to the switch components.


3. Precautions: Avoid using the switch in environments where it may be exposed to extreme temperatures or moisture.

Applications

1. Robotics and automation systems.


2. Home appliances, such as microwaves and refrigerators.


3. Industrial machinery and control systems.


4. Circuit testing and DIY electronics projects.


5. Security systems and alarms.

Why Choose Arm Lever 17mm, 250V 5A SPDT 3-Pin Momentary Plastic Micro Limit Switch?

This switch is designed to meet the needs of a variety of applications requiring reliable and momentary switching action. Its compact design, high current handling, and easy installation make it an excellent choice for both industrial and consumer-grade products.
