شاشة TFT LCD مقاس 1.47 بوصة ST7789 واجهة SPI 8 طرف
يُشترى معاً عادةً
هذا المنتج
شاشة TFT LCD مقاس 1.47 بوصة ST7789 واجهة SPI 8 طرف
عن هذا المنتج

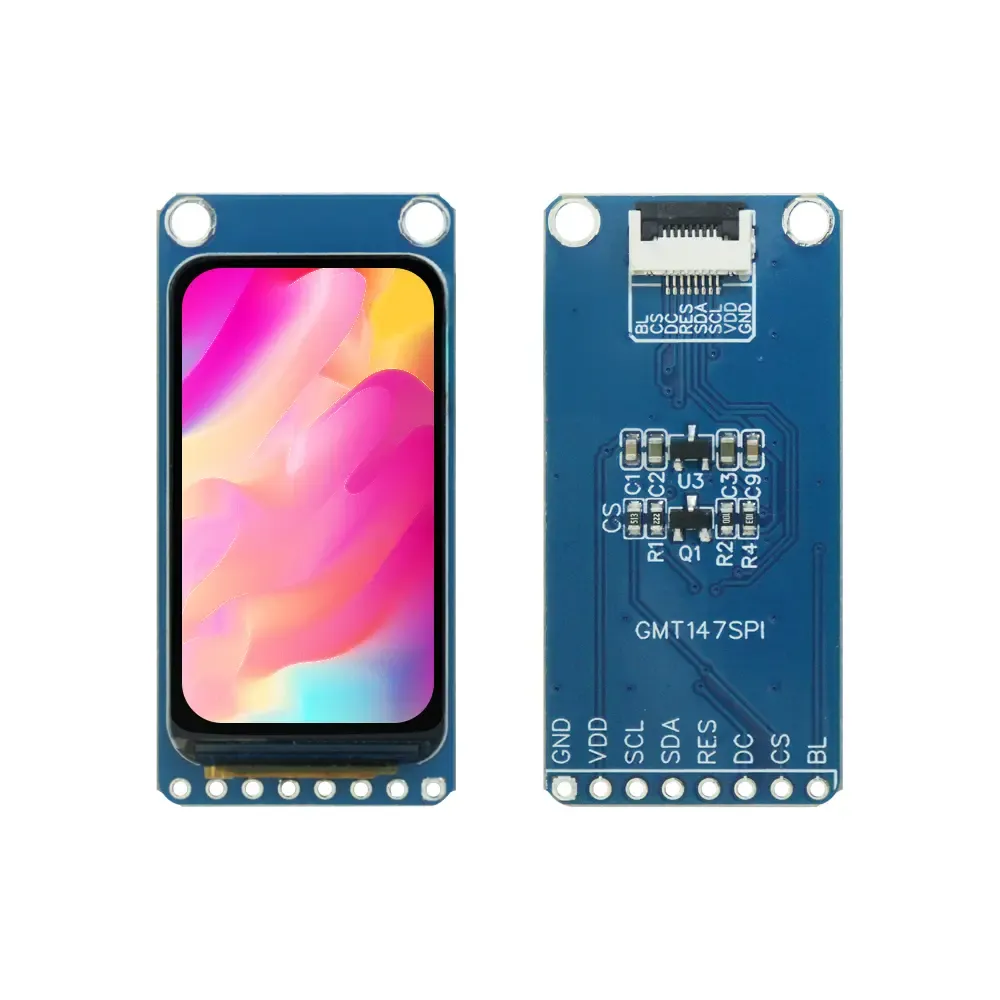

TFT LCD Display 1.47" (ST7789 SPI - 8 Pin)
The 1.47-inch TFT LCD is a high-performance, compact display module known for its elongated "stretched" aspect ratio and exceptional clarity. Utilizing IPS (In-Plane Switching) technology, it provides vibrant 18-bit color and superior viewing angles compared to standard TFT screens. Driven by the reliable ST7789 controller, it communicates via a high-speed SPI interface, making it perfect for modern microcontrollers like the ESP32, STM32, or Arduino.
Key Features
High Pixel Density: A resolution of 172 x 320 pixels in a small 1.47" frame ensures sharp text and detailed graphics.
IPS Technology: Offers 80°+ viewing angles from all directions with consistent color reproduction.
Full Color Depth: Supports up to 262,144 colors (18-bit), delivering rich and accurate visuals.
Flexible Integration: The unsoldered headers allow for a low-profile fit in custom enclosures or permanent soldering to PCBs.
Universal Power: Compatible with both 3.3V and 5V power supplies, simplifying your circuit design.

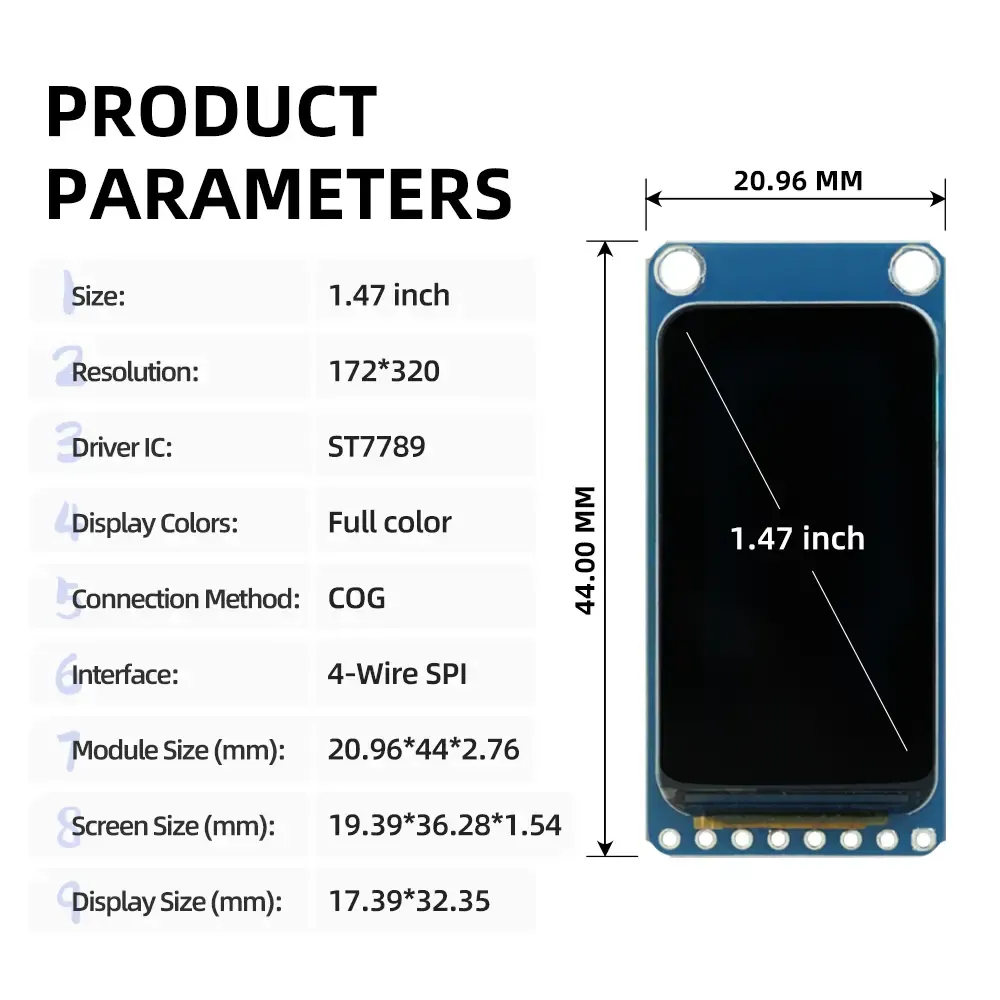

Technical Specifications
| Parameter | Value |
| Screen Size | 1.47 inches |
| Resolution | 172 x 320 Pixels |
| Driver IC | ST7789V3 / ST7789P3 |
| Interface | 4-wire SPI |
| Display Type | IPS (Full Color) |
| Supply Voltage | 3.3V – 5.0V DC |
| Active Area | 17.4 x 32.4 mm |
| Module Dimensions | 21.20 mm x 44.00 mm |
| Operating Temp. | -20°C to +70°C |
Pin Configuration (8-Pin SPI)
| Pin | Label | Function | Description |
| 1 | GND | Ground | Connect to system ground. |
| 2 | VDD | Power | Supply (3.3V is recommended for logic, 5V compatible). |
| 3 | SCL | SPI Clock | Serial Clock Line for SPI communication. |
| 4 | SDA | SPI Data | Serial Data Line for SPI communication. |
| 5 | RES | Reset | Global Reset pin (Active Low). |
| 6 | DC | Data/Command | Selects between Data (High) and Command (Low). |
| 7 | CS | Chip Select | Enables/Disables the display on the SPI bus. |
| 8 | BL | Backlight | PWM control for brightness (can be tied to VDD). |
Applications
Smart Wearables: Ideal for fitness trackers or DIY smartwatches due to its slim profile.
Industrial Panels: Compact readouts for sensors, battery status, or system diagnostics.
Portable Media: Small handheld game consoles or digital "business cards."
IoT Nodes: High-resolution interfaces for smart home controllers.
Package Contents
1x 1.47" TFT LCD Display (ST7789 Controller)
1x 8-Pin Header Strip (Unsoldered)
Recommended Libraries
Adafruit_ST7789
TFT_eSPI ( highly recommended for ESP32/ESP8266 )
