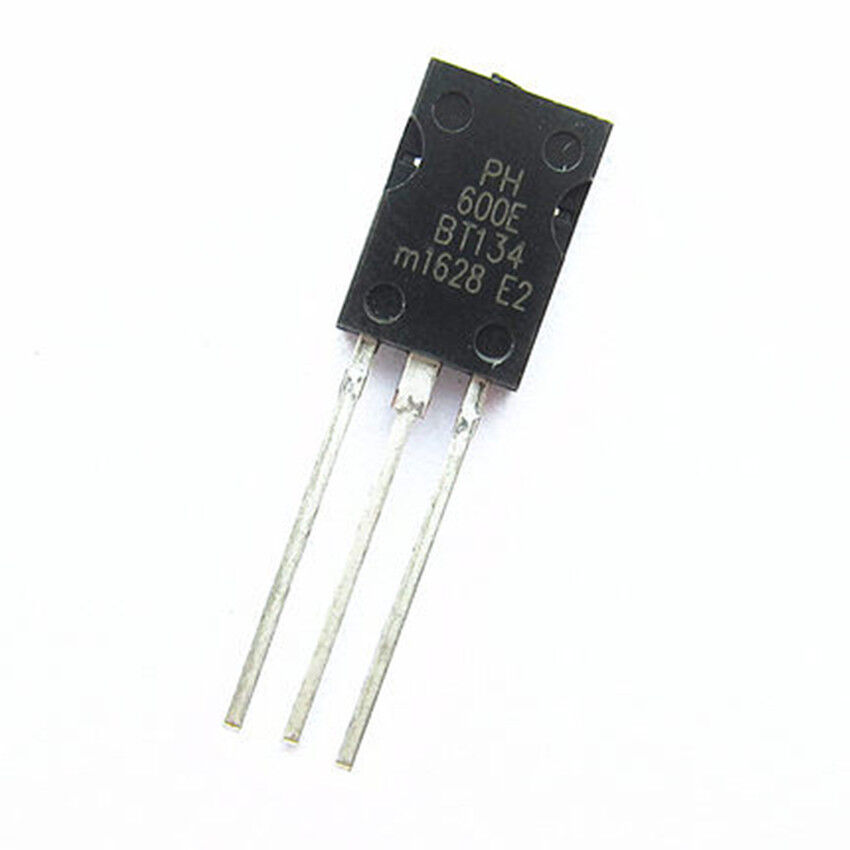

ثيريستور BT134 (مفتاح إلكتروني للتحكم في التيار)

Product Overview

The BT134 Thyristor is a versatile and reliable semiconductor device used primarily for controlling high-power AC circuits. With its robust construction and reliable performance, the BT134 is ideal for a wide range of applications, including light dimmers, motor control, and overvoltage protection. This thyristor features excellent switching characteristics and is capable of handling moderate currents, making it suitable for household and industrial power control systems. Its easy integration into electronic circuits makes it a popular choice for both professionals and hobbyists.

Key Features

• High Voltage Rating – Handles up to 400V RMS for effective AC circuit control.


• Low Gate Triggering Current – Requires minimal current to turn on, ensuring efficient operation.


• Excellent Switching Characteristics – Ensures fast switching times for reliable control.


• Compact and Reliable – Small form factor for easy integration into various applications.


• Suitable for Various Loads – Can be used with resistive and inductive loads, providing versatility in different systems.


• Temperature Stability – Designed to operate efficiently over a wide temperature range.

Technical Specifications

• Device Type: Triac (Bidirectional Thyristor)


• Voltage Rating: 400V RMS (Maximum)


• Current Rating: 4A RMS (Maximum)


• Gate Trigger Current: 10mA (Typical)


• Triggering Type: Gate


• Operating Temperature Range: -40°C to +125°C


• Package Type: TO-220


• Lead Configuration: 3 leads (Anode, Cathode, Gate)


• Mounting Type: Through-hole

Applications

• Light Dimming – Ideal for controlling the brightness of incandescent lights.


• Motor Control – Used in motor speed controllers and electronic motor drives.


• Overvoltage Protection – Helps in protecting circuits from voltage spikes.


• AC Power Switching – Used in controlling AC power supplies and other high-power devices.


• Phase Control – Suitable for phase control applications in AC circuits.

Why Choose BT134 Thyristor?

The BT134 Thyristor offers excellent performance for controlling high-power AC circuits. Its low gate current and high voltage rating make it perfect for home appliances, motor controls, and other power regulation systems. Reliable, durable, and easy to use, the BT134 is a solid choice for both industrial and DIY electronic applications.
