TCS3200/TCS230 Color Sensor Module

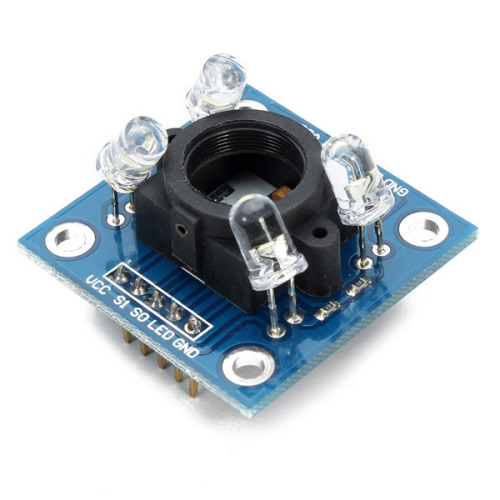

The TCS3200 Color Recognition Sensor Module uses a high-quality light sensor allowing you to sense any color through a combination of Red, Green, and Blue. The module provides all of the pins of the TCS3200 on convenient 0.1″ headers – ideal for use with PCBs, breadboards, or stripboards. Four white LEDs provide plenty of light for the color sensor and allow you to use the module in any ambient light. The module requires only a single supply voltage between 2.7V and 5.5V – making it compatible with nearly all common microcontrollers, including PICs, AVRs, ARM, Arduino, and more.

Header one on the left side of the board
S0: Output frequency scaling selection input (along with S1)
S1: Output frequency scaling selection input (along with S0)
OE: Output Enable – if held low, the output of the module is turned on
GND: Ground – connect to 0V
Header two on the right side of the board

S3: Photodiode type (along with S2)
S2: Photodiode type (along with S3)
OUT: Output – A square wave appears here showing the intensity of the detected color
VCC: Power – connect to 2.7V-5.5V
The Photodiode type pins allow you to pick which color light you are currently detecting:

S2 S3 Photodiode type

Low Low Only red light
Low High Only blue light
High Low No filter
High green light

Features/Specs:
Operating Voltage: 3 ~ 5VDC
High-resolution conversion of light intensity to frequency
Chip pins all have drawn for standard 100
Put the needle (2.54 mm)
Mil-convenient for bitmap board
Programmable color and full-scale output frequency
Communicate directly with a microcontroller
Low-profile surface-mount package
Best Detection Range: 100mm
Length: 32mm
Width: 25mm
Height: 11mm
Weight: 4gm
