موديول سنسور لهب 5 قنوات

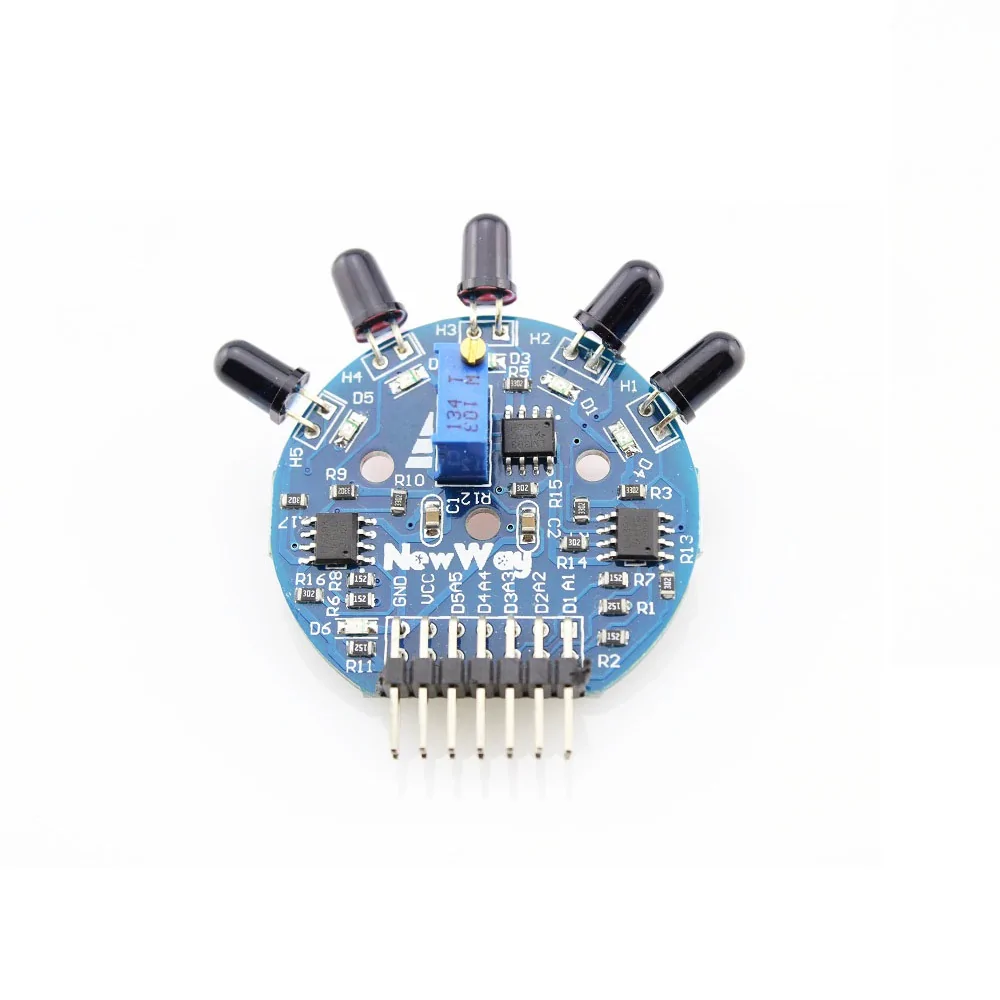

5-Channel Flame Sensor Module

The 5-Channel Flame Sensor Module is designed for high-precision, multi-directional fire detection. It utilizes five independent infrared sensors arranged at 30° intervals, providing a total detection field of more than 120°. The module is sensitive to short-wave near-infrared (SW-NIR) light, specifically identifying wavelengths between 700 nm and 1100 nm. This wide-angle coverage and reliable 1% precision resistor design make it an essential component for fire-fighting robots and advanced security alarms.

Key Features

•


  Multi-Directional Sensing: Five independent sensors provide a broad detection range of >120°.





•


  Dual Output Modes: Provides 5 analog outputs for measuring flame intensity and 5 digital outputs for easy microcontroller integration.





•


  Adjustable Sensitivity: An onboard potentiometer allows users to fine-tune the triggering threshold for the digital outputs.





•


  Visual Feedback: Includes 5 channel-specific LEDs for debugging and one power indicator.





•


  Reliable Construction: Built with 1% precision resistors and SMT components for improved accuracy and stable performance.




Technical Specifications

Connection Pinout

Applications

•


  Fire-Fighting Robotics: Enabling autonomous robots to locate and navigate toward fire sources.





•


  Industrial Safety: Multi-directional fire alarms for workshops or storage areas.





•


  Smart Home Systems: Integrated sensors for early fire detection and notification
