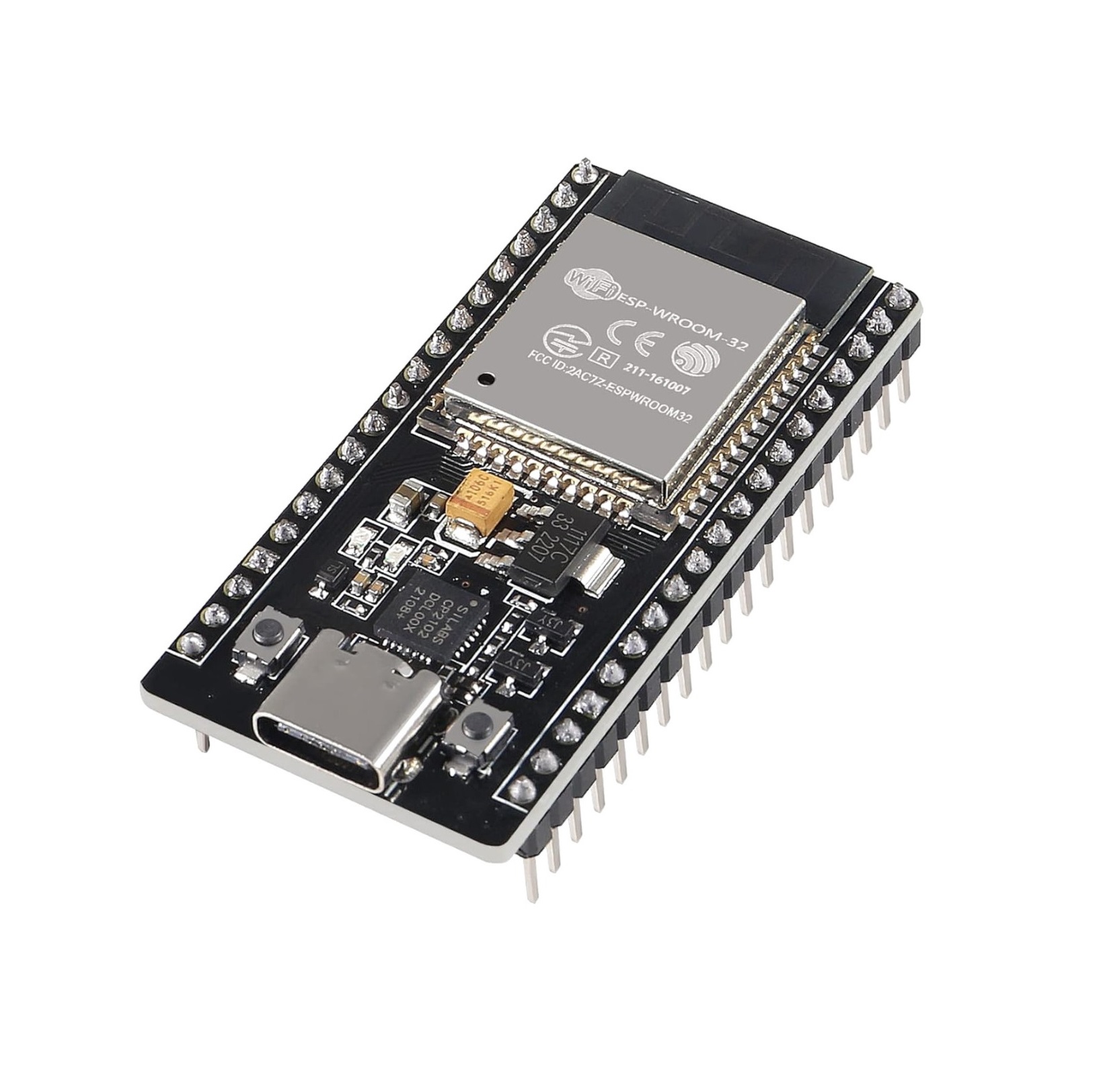

لوحة تطوير ESP32 تايب سي واي فاي وبلوتوث شريحة CH340

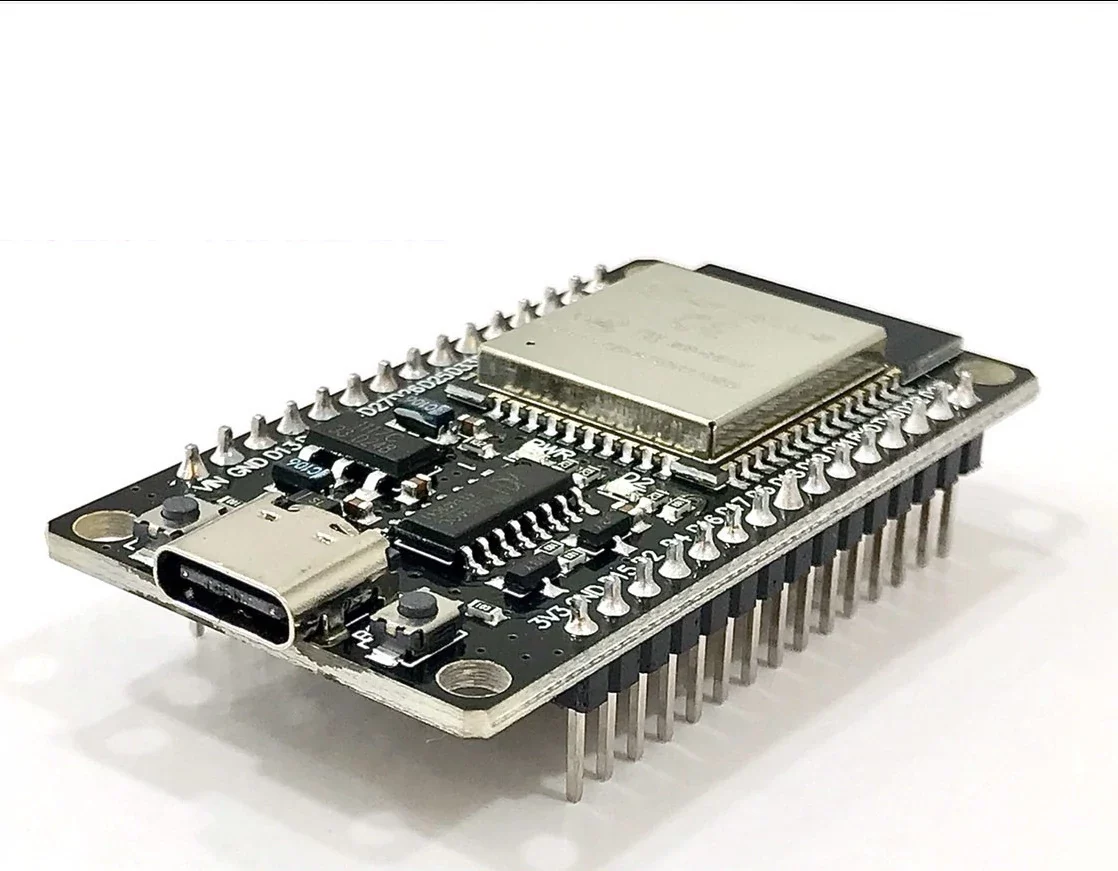

ESP32 Type-C Development Board – Wi-Fi & Bluetooth | CH340 USB Chip

The ESP32 Type-C Development Board is a versatile and high-performance microcontroller module featuring Wi-Fi and Bluetooth dual-mode connectivity, based on the powerful ESP32 SoC. It includes a USB Type-C interface for reliable and modern connectivity, and uses the CH340 USB-to-Serial chip for easy programming and debugging via the Arduino IDE or other platforms.

🔧 Key Features

•


  Processor: ESP32 Dual-Core Xtensa LX6 @ up to 240 MHz





•


  Connectivity:






  •


    Wi-Fi: 802.11 b/g/n





  •


    Bluetooth: v4.2 (Classic + BLE)









•


  USB Interface: Type-C (with CH340 USB-to-Serial chip)





•


  Flash Memory: Typically 4MB (varies by version)





•


  GPIO Pins: 30–38 I/O pins depending on model






  •


    Support for UART, SPI, I2C, PWM, ADC, DAC









•


  Operating Voltage: 3.3V (I/O level)





•


  Power Input: 5V via USB-C or VIN pin




📐 Technical Specifications

•


  Logic Level: 3.3V (do not connect 5V directly to GPIO)





•


  USB-to-Serial: CH340C chip for driver support across Windows, Linux, and macOS





•


  LED Indicator: Onboard programmable LED (usually on GPIO2)





•


  Reset and Boot Buttons: For firmware upload and manual flashing





•


  Dimensions: Approx. 58 × 25 mm





•


  Mounting: Breadboard-compatible design




🛠️ Applications

•


  IoT (Internet of Things) devices





•


  Home automation and smart systems





•


  Wireless sensor networks





•


  Bluetooth-based control systems





•


  DIY robotics and embedded projects





•


  Wi-Fi-enabled data loggers or remote monitoring




✅ Why Choose This Board?

•


  Modern USB-C interface for fast and reliable power/data





•


  CH340 chip ensures broad driver compatibility and simple flashing





•


  Full support in Arduino IDE, PlatformIO, and ESP-IDF





•


  Powerful dual-core CPU with built-in wireless stack





•


  Ideal for makers, developers, and students




⚠️ Note: Use 3.3V logic for external modules. Double-check CH340 drivers are installed for your OS before uploading code.
