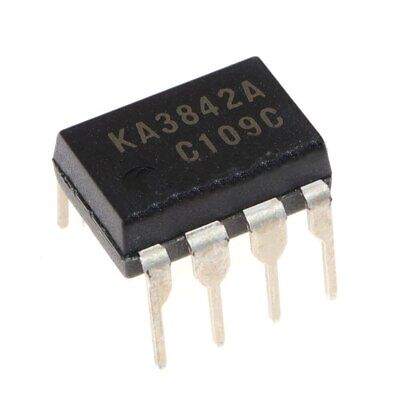

آي سي 3842 للتحكم في مصادر التغذية بنظام PWM

Product Overview

The IC 3842 is a high-performance PWM controller integrated circuit used in switching power supply designs. It is engineered to regulate DC-DC converters and AC-DC power supplies by modulating the duty cycle of the power switch. By integrating an internal oscillator, error amplifier, undervoltage lockout (UVLO), and current-mode control features, the IC 3842 ensures precise and stable output regulation for a variety of power conversion applications.

Key Features:

• PWM Control: Precisely modulates the output by adjusting the pulse width of the drive signal.


• Integrated Oscillator: Provides a fixed-frequency clock, typically adjustable within a certain range, for stable operation.


• Error Amplifier: Monitors and compares the output voltage to maintain accurate regulation through feedback.


• Undervoltage Lockout (UVLO): Protects the circuit by shutting down the controller if the supply voltage drops below a defined threshold.


• Current-Mode Control: Enhances transient response and loop stability, ensuring rapid adjustment to load changes.


• Versatile Package: Commonly available in DIP or SOIC packages, making it easy to integrate into various circuit designs.

Technical Specifications:

• Operating Voltage: Typically in the range of 12–30V (check datasheet for exact values).


• Oscillator Frequency: Adjustable; often within the range of 50 kHz to 200 kHz.


• PWM Output: Drives external power MOSFETs with a well-defined PWM signal.


• Feedback & Error Amplifier: Designed to maintain tight output voltage regulation.


• Packaging: Available in standard DIP or SOIC packages for easy mounting.


• Additional Features: Built-in compensation for loop stability and robust protection features.

Applications:

• DC-DC Converters: Provides regulation in step-down (buck) and other converter topologies.


• AC-DC Power Supplies: Used in switching regulators for off-line power supply designs.


• Switching Regulators: Ideal for applications requiring efficient power conversion with fast response.


• Industrial & Consumer Electronics: Powers devices where precise voltage control is critical.

Why Choose the IC 3842?

The IC 3842 combines multiple control and protection functions into one compact package, offering a cost-effective and reliable solution for power supply design. Its integration of PWM control, error feedback, and safety features ensures efficient, stable, and robust performance across a wide range of applications.
