موديول تتبع خط بالأشعة تحت الحمراء 4 قنوات

Specification:

• Working voltage: 3.3V-5V DC


• Working current: as far as possible to choose 1A above power supply


• Working temperature: – 3 DEG C – less


• Mounting aperture: M3 screw


• Detection range: 1mm to 60 CM can be adjusted, the more close to the performance of the more stable, white reflection distance.


• Operating voltage: 3.3V-5V DC


• Main board: 43×39×11mm


• sensor modules: 23 × 12 × 12 mm


• Diameter of the fastening holes: 3m


• Output interface: 6 wire system interface (4 for 1234 signal output end, + for positive power supply, – for negative power is also the ground)


• Output signal: TTL level (can be directly connected to the microcontroller I/0, sensing the sensor back when the infrared light, red light, the output low level; no infrared light, the indicator is not bright, the output high level).

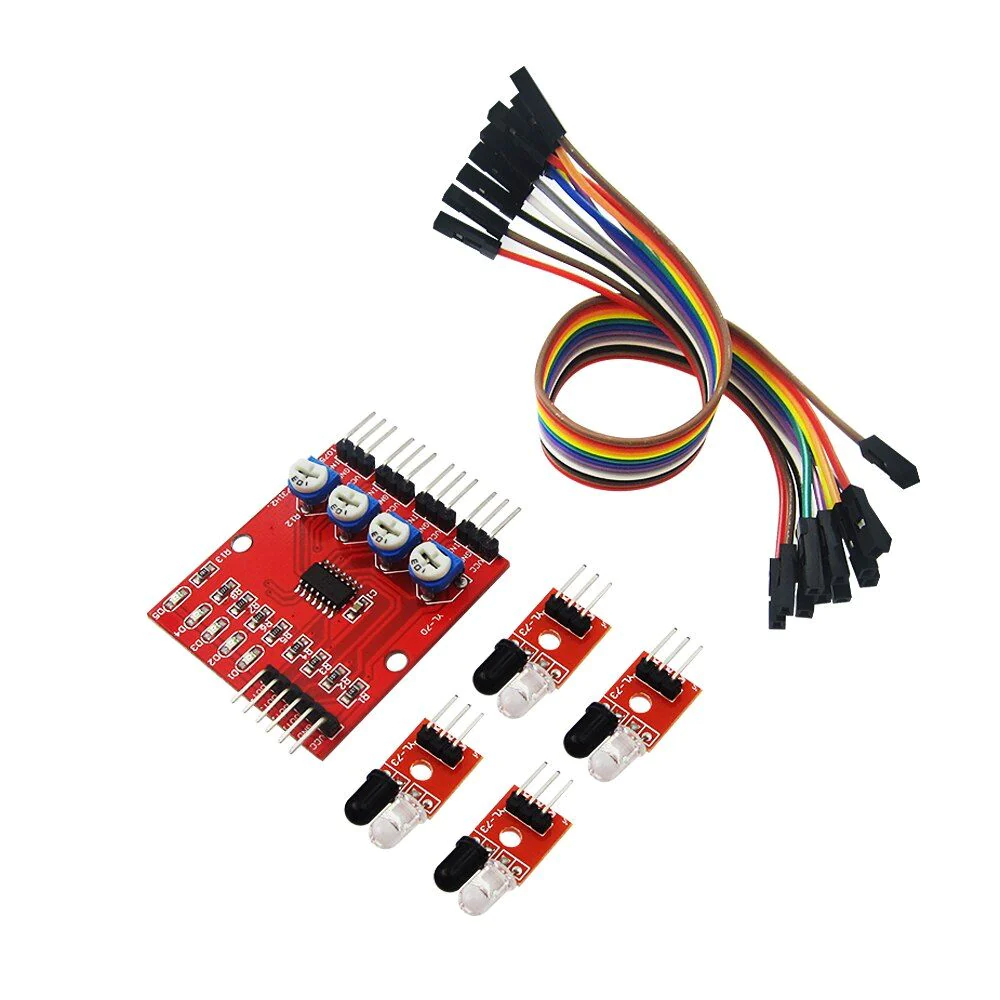

Package Includes:

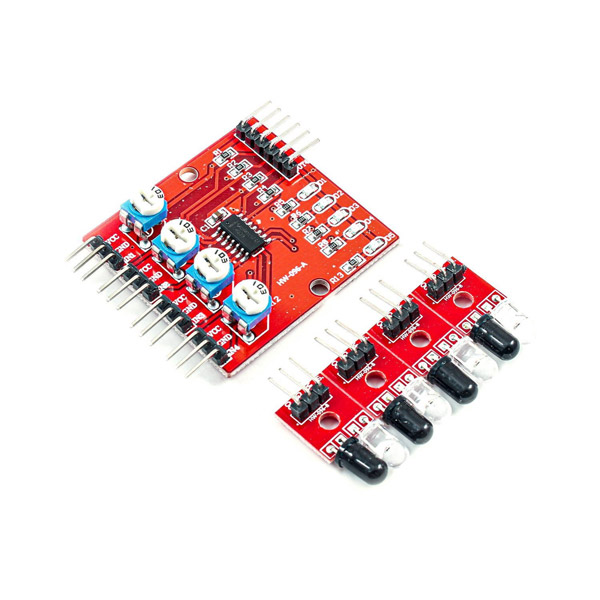

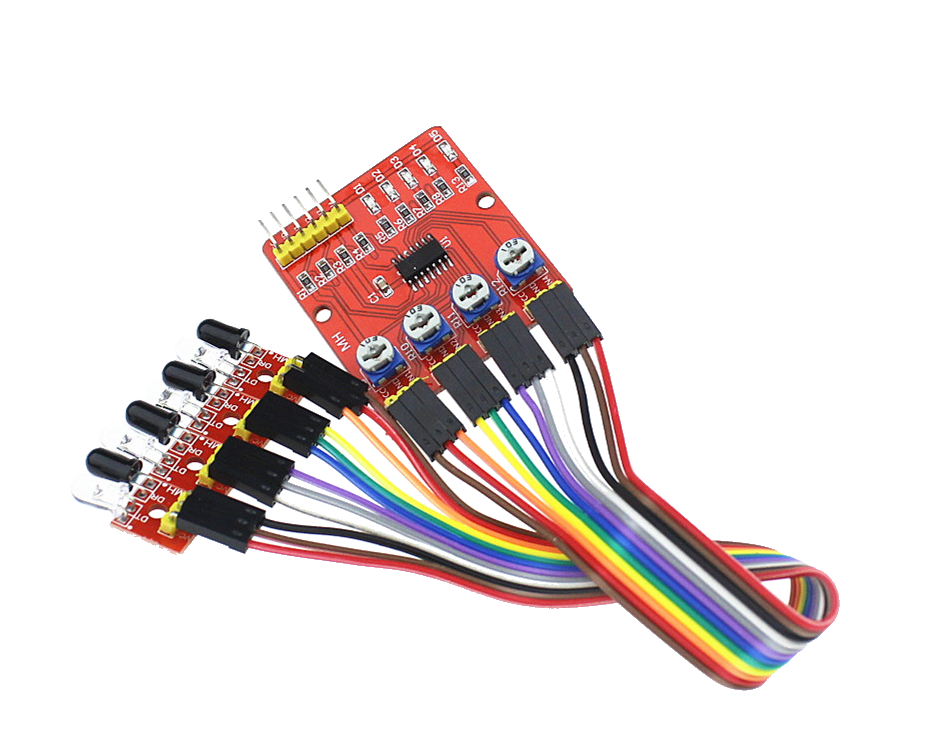

• 1 x Tracking Module (Hollow Board + Small Plate Forward).


• 12 X Female to Female Dupont Lines (10 cm).
