موديول ليزر 5 فولت 3 أطراف

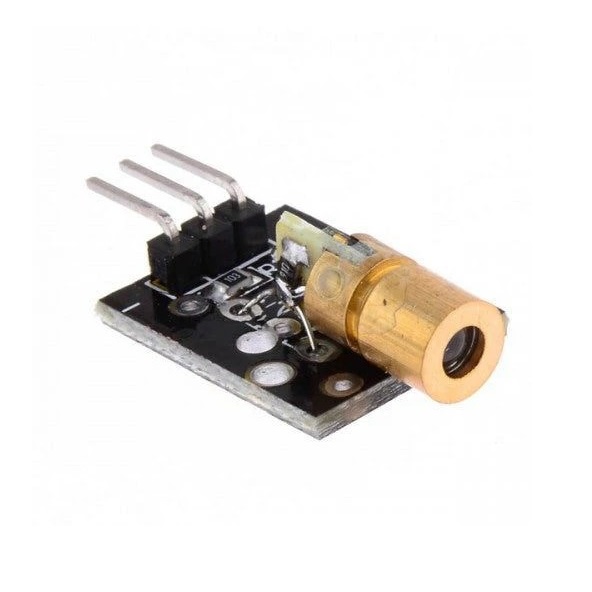

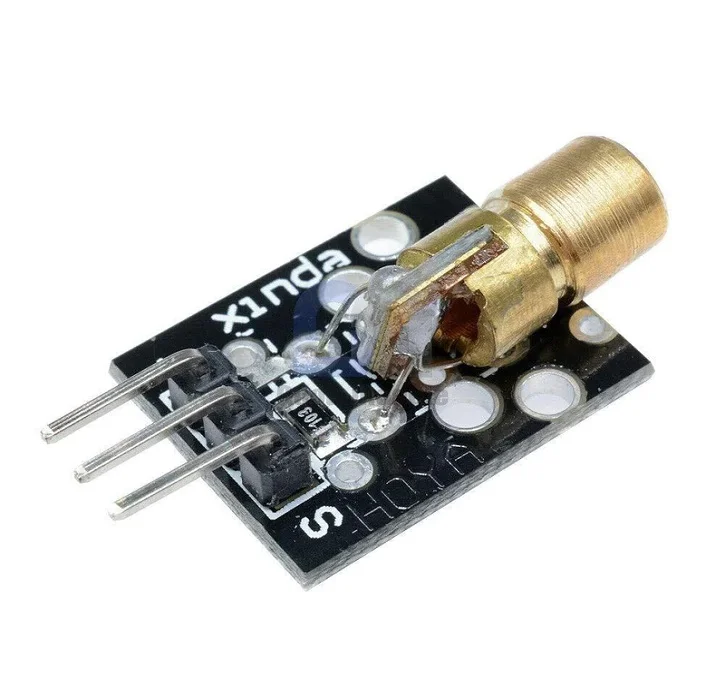

5V 3-Pin Laser Diode Module – Red Laser for Arduino and DIY Projects

The 5V 3-Pin Laser Module is a compact, low-power red laser emitter designed for Arduino, Raspberry Pi, robotics, and general electronics projects. Operating at 5 volts, this module is easy to integrate with most microcontrollers and features a 3-pin interface for simple control and connectivity.

🔧 Key Features

•


  Operating Voltage: 5V DC





•


  Laser Color: Red (wavelength typically ~650nm)





•


  3-Pin Interface:






  •


    VCC – Power (5V)





  •


    GND – Ground





  •


    SIG – Signal control (ON/OFF via microcontroller)









•


  Control Type: Digital HIGH/LOW to toggle the laser





•


  Laser Range: ~10–50 meters visible (for alignment or pointing)





•


  Power Output: <5mW (Class IIIa laser – safe for general use with precautions)




📐 Specifications

•


  Dimensions: Approx. 24 × 15 × 8 mm





•


  Mounting Holes: Available on some versions for fixed installations





•


  Weight: Very lightweight (~3g)





•


  Beam Diameter: ~1mm at 10m distance





•


  Module Type: Laser emitter with control circuit built-in




🛠️ Applications

•


  Line or point laser for alignment or positioning





•


  Targeting or aiming systems in robotics





•


  DIY laser tripwires and security systems





•


  Laser-based communication or signaling





•


  Visual indicators in school or hobby projects




✅ Advantages

•


  Plug-and-play with Arduino, ESP32, STM32, etc.





•


  Simple ON/OFF control via digital output pin





•


  Compact size for embedded designs





•


  Long range visibility indoors and at night





•


  Low current consumption (~30–50mA)




⚠️ Safety Note: Do not point the laser at eyes or reflective surfaces. Use responsibly and keep away from children without supervision.
