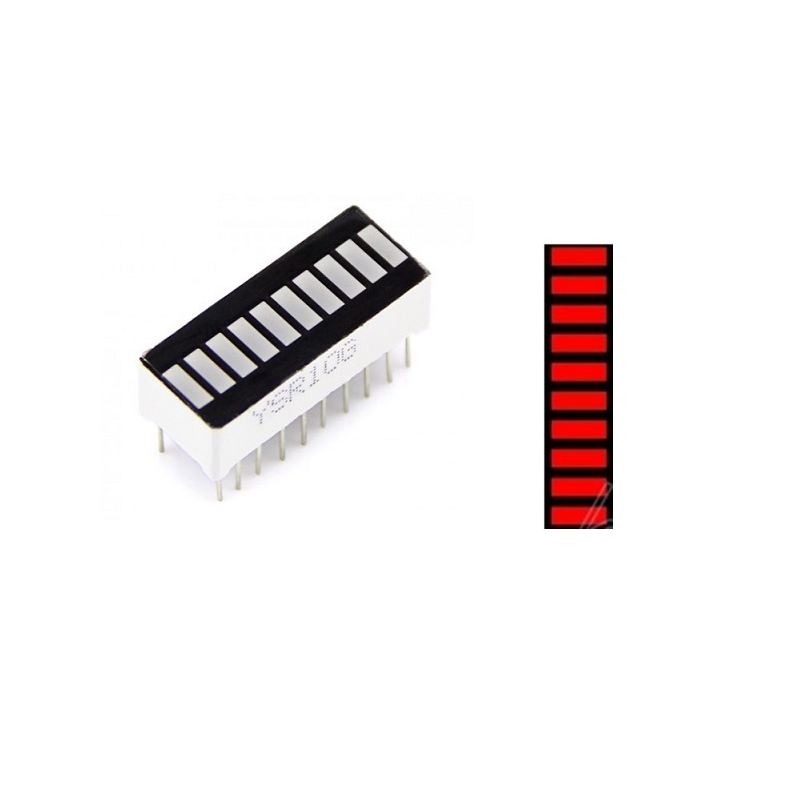

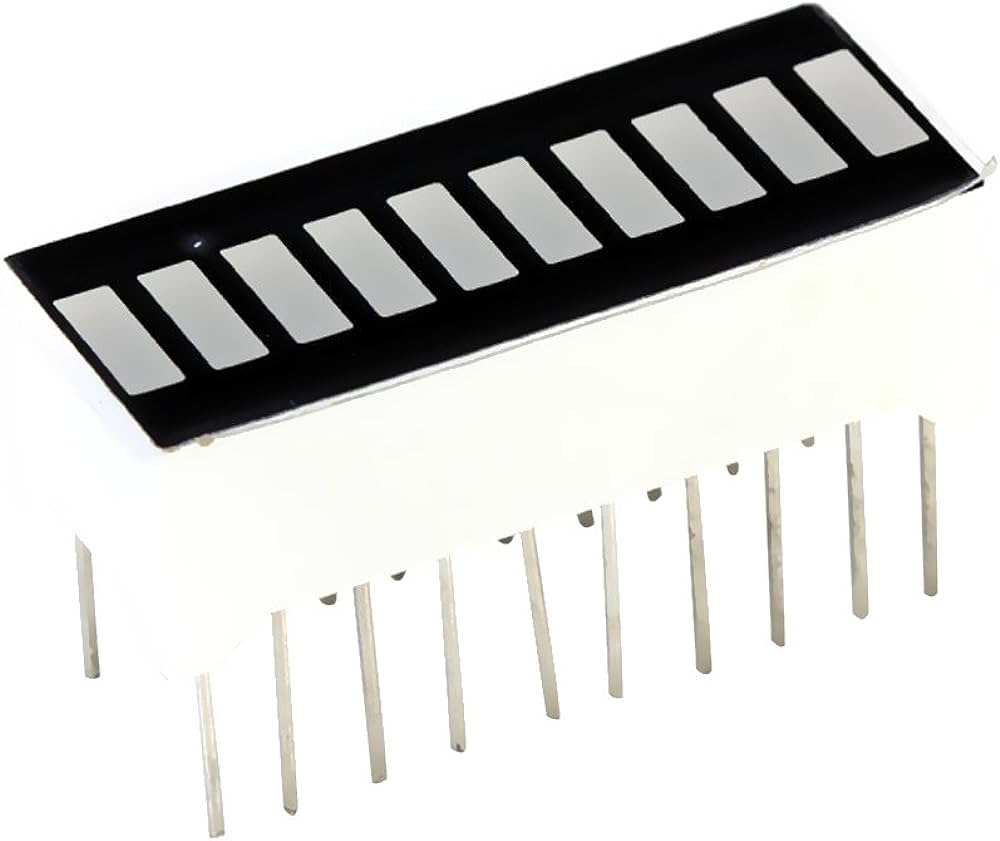

10-segment LED display 10 x Red. It can be used for example as a temperature gauge or liquid level.
Specification
- Display type: LED range
- Mounting: THT
- Color: Red
- Forward Current: 20mA
- Forward Voltage: 2.0V to 2.2V (maximum)
- Operating Temperature: -25℃ to 85℃
- Storage Temperature: -30℃ to 85℃
- Soldering Temperature: 260℃ for 5sec.
- Dimensions: 25.5 mm x 10 mm x 6.5 mm
- Height with pins: 14.5 mm
Features
- 10 LEDs with individual control
- High Luster
- High Intensity
- Economically Priced
- Breadboard or Perf board friendly
- RoHS Compliant
- Wide viewing angle
Pin Configuration
| Pin No. | Pin Name | Description |
| 1 to 10 | Anode | All are anode pins of the respected LED |
| 11 to 20 | Cathode | All are cathode pins of the respected LED |
