موتور اهتزاز ميكرو 0408 مقاس 4×8 مم 3.7 فولت

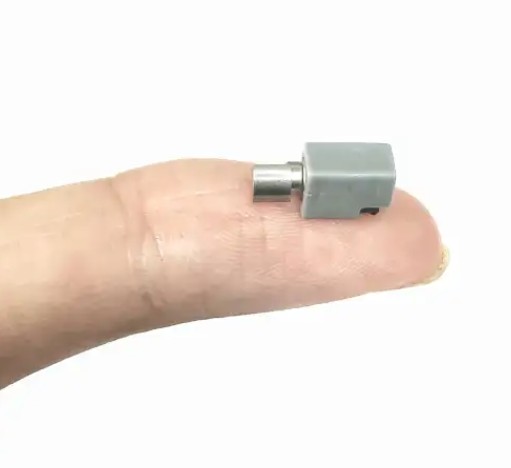

Coreless Micro Vibration Motor (3.7V)

The Coreless Micro Vibration Motor is a compact, high-speed haptic feedback component designed for small-scale electronics. Operating on a 3.7V supply, it utilizes an offset weight on its shaft to create high-frequency mechanical oscillations. Its lightweight, coreless design ensures a fast response time and low power consumption, making it the standard choice for haptic alerts in wearable technology and portable handheld devices.

Key Features

•


  Compact Coreless Design: Features a miniature cylindrical body that provides high-speed rotation with minimal electrical inertia.





•


  Haptic Feedback: Equipped with an eccentric rotating mass (ERM) to generate consistent vibration alerts.





•


  Low Power Consumption: Operates at a rated current of only 0.05A, ideal for battery-powered projects.





•


  Versatile Voltage Range: While rated at 3.7V, the motor functions effectively across a range of 1.5V to 3.7V.





•


  Wide Temperature Tolerance: Built to perform reliably in environments ranging from -20°C to +70°C.




Technical Specifications

Dimensions:

Applications

•


  Wearable Electronics: Haptic notifications for smartwatches, fitness trackers, and medical monitors.





•


  Handheld Devices: Silent vibration alerts for mobile phones, pagers, and handheld game consoles.





•


  Robotics: Providing tactile feedback or "rumble" effects in robotic controllers.





•


  STEM Education: Simple demonstrations of converting electrical energy into mechanical vibration and haptic technology.
