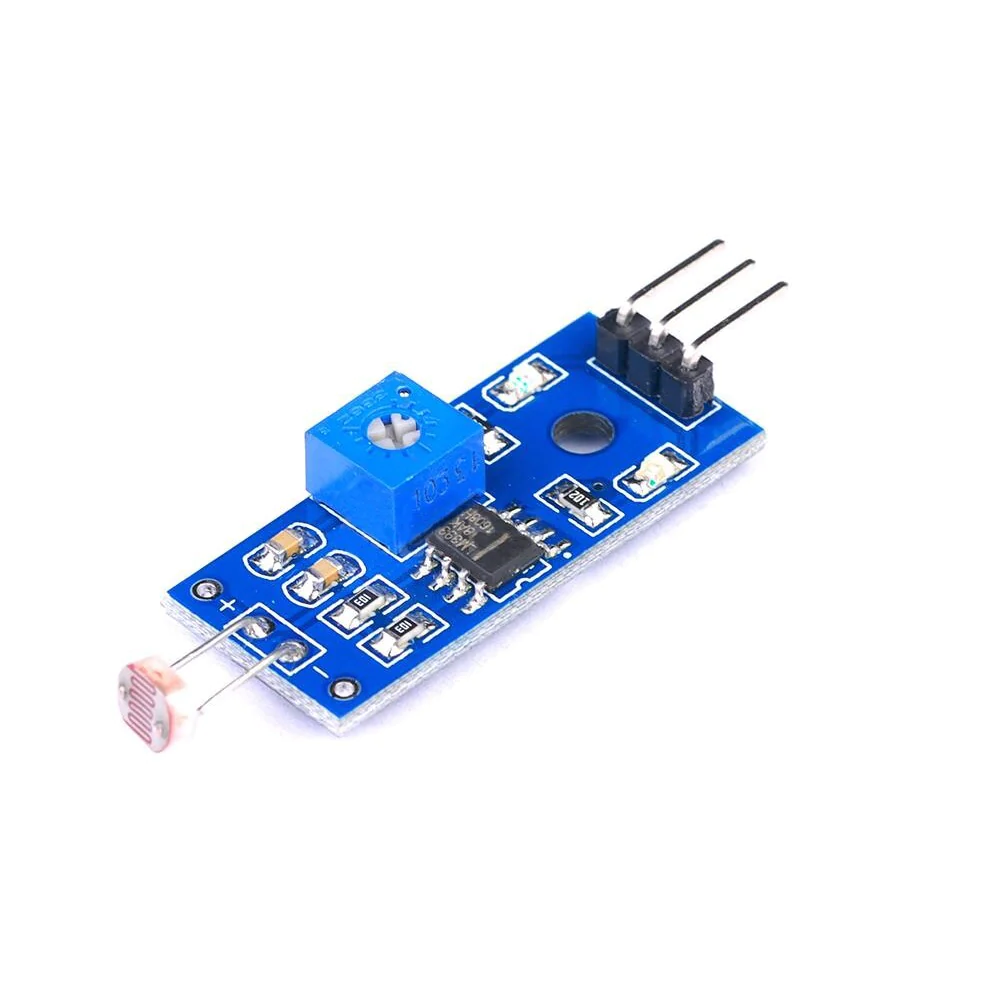

Module with photoresistor for Arduino. It is controlled by a digital signal, it is powered with the voltage from 3.3 V to 5 V. On board placed was a potentiometer to adjust the sensitivity of photoresistor.
Description
Module with photoresistor for Arduino. It is controlled by a digital signal, it is powered with the voltage from 3.3 V to 5 V. On board placed was a potentiometer to adjust the sensitivity of photoresistor.
Pins
The module is controlled by a digital signal.
| PIN | DESCRIPTION |
|---|---|
| D0 | Digital signal. |
| GND | GND – ground of the system. |
| VCC | VCC – supply voltage from 3.3 V to 5V. |
Specification
- Supply voltage: from 3.3 V to 5 V
- Type: digital
- Able to detect ambient brightness and light intensity
- Adjustable sensitivity (via blue digital potentiometer adjustment)
- Operating voltage 3.3V-5V
- With fixed bolt hole for easy installation
- Power indicator (Red) and the digital switch output indicator (Green)
- Dimensions: 32 x 14 mm
