Specifications

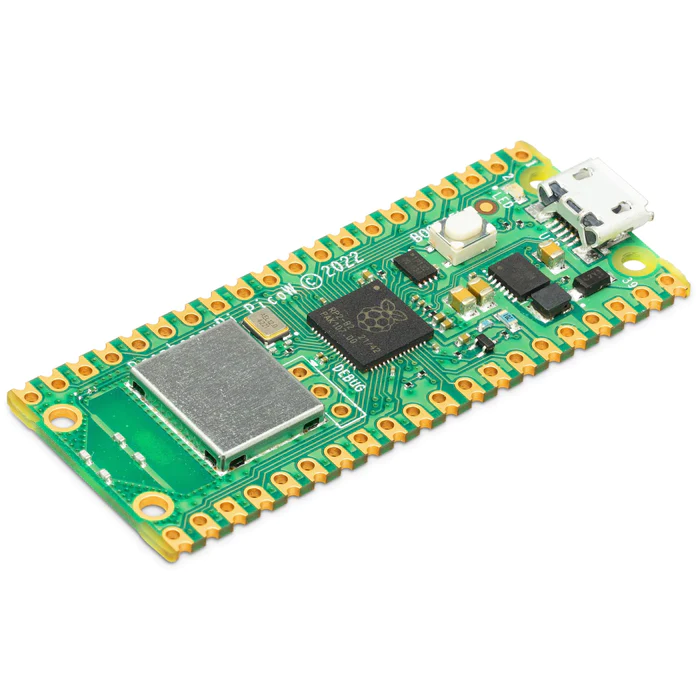

The main chip on board is the RP2040 made by Raspberry Pi (their first in-house microcontroller chip!) and is a dual-core ARM Cortex M0+ processor, with a flexible clock running up to 133MHz. WiFi is enabled via the use of an Infineon CYW43439.

•


  RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom





•


  Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz





•


  264kB of SRAM, and 2MB of onboard Flash memory





•


  Infineon CYW43439 wireless chip





  •


    IEEE 802.11n wireless LAN





  •


    Bluetooth 5.2





  •


    WPA3





  •


    SoftAP (up to 4 clients)





  •


    Onboard antenna licenced from ABRACON (connected via SPI to the RP2040)









•


  Castellated module allows soldering directly to carrier boards





•


  USB 1.1 Host and Device support





•


  Low-power sleep and dormant modes





•


  Drag & drop programming using mass storage over USB





•


  26 multi-function GPIO pins





•


  2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels





•


  Real-time clock (RTC)





•


  Temperature sensor





•


  Accelerated floating-point libraries on-chip





•


  8×Programmable IO (PIO) state machines for custom peripheral support





•


  Dimensions (WxLxH)





  •


    Pico W: 21mm x 51.3mm x 3.9mm





  •


    Pico WH: 21mm x 51.3mm x 12.9mm









•


  Weight





  •


    Pico W: 4g





  •


    Pico WH: 6g









•


  Country of origin





  •


    Pico W: Japan





  •


    Pico WH: Great Britain









•


  Product number:





  •


    Pico W: SC0918





  •


    Pico WH: SC0919








Raspberry Pi Pico W Pinout

A few RP2040 GPIO pins are used for internal board functions:

•


  GPIO29 OP/IP wireless SPI CLK/ADC mode (ADC3) to measure VSYS/3





•


  GPIO25 OP wireless SPI CS - when high also enables GPIO29 ADC pin to read VSYS





•


  GPIO24 OP/IP wireless SPI data/IRQ





•


  GPIO23 OP wireless power on signal





•


  WL_GPIO2 IP VBUS sense - high if VBUS is present, else low





•


  WL_GPIO1 OP controls the on-board SMPS power save pin (Section 3.4)





•


  WL_GPIO0 OP connected to user LED




Apart from GPIO and ground pins, there are seven other pins on the main 40-pin interface:

•


  PIN40 VBUS





•


  PIN39 VSYS





•


  PIN37 3V3_EN





•


  PIN36 3V3





•


  PIN35 ADC_VREF





•


  PIN33 AGND





•


  PIN30 RUN
