شاشة LCD دائرية TFT SPI مقاس 1.28 بوصة - RGB 240×240 مع فتحة microSD
عن هذا المنتج

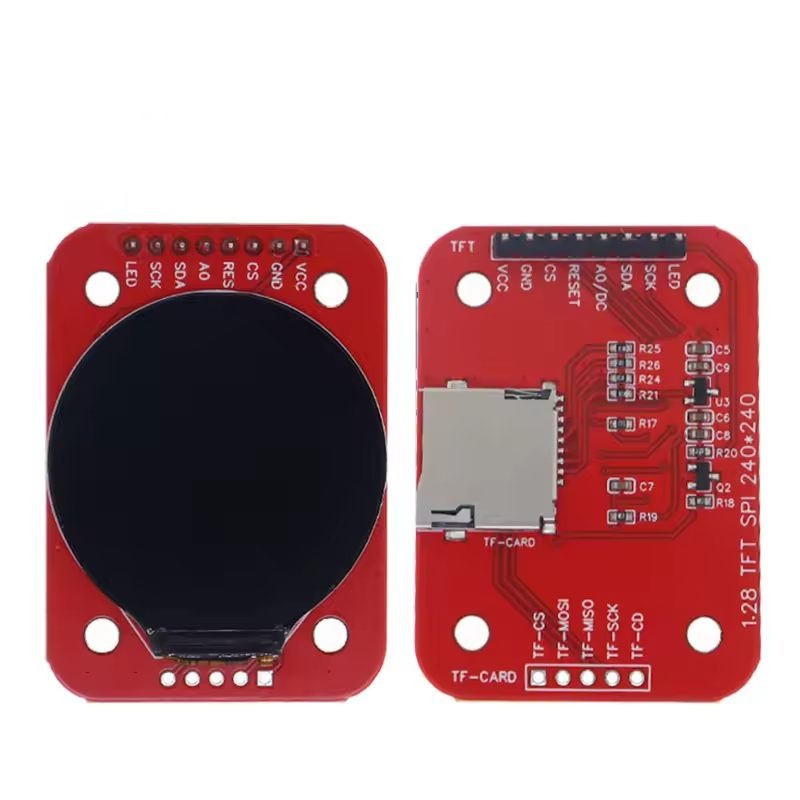

TFT SPI 1.28" Round LCD Module with microSD Slot
The 1.28-inch Round TFT LCD Module is a high-resolution circular display featuring the GC9A01 driver IC and a built-in microSD card slot. With a sharp 240x240 RGB resolution and IPS "All View" perspective, it provides vibrant color rendering and excellent visibility from any angle. Its 4-wire SPI interface makes it universally compatible with microcontrollers such as the ESP32, Arduino, and Raspberry Pi, which is ideal for the advanced graphical interfaces you've developed for your student robotics community.
Key Features
Circular Design: Specifically designed for modern aesthetics in smartwatches, automotive dashboards, and medical meters.
Integrated Storage: Features an onboard microSD card slot, allowing for the easy storage and retrieval of complex images, icons, or data logs.
High-Speed Rendering: The GC9A01 IC supports fast refresh rates, ensuring smooth graphics with minimal flickering.
Logic Compatibility: Supports an operating voltage of 3.3V to 5V, making it safe for use with both standard and low-power logic levels.
Low Power Consumption: Optimized for battery-powered IoT and wearable applications.
Technical Specifications
| Parameter | Value |
| Display Type | TFT LCD (Normally Black, IPS) |
| Size / Shape | 1.28 inches / Round |
| Resolution | 240 × 240 pixels (RGB 65K colors) |
| Driver IC | GC9A01 |
| Interface | 4-wire SPI |
| Active Area (Dia.) | 32.4 mm |
| Operating Voltage | 3.3V – 5V |
| Module Dimensions | Approx. 38mm x 45.5mm x 3.2mm |
| Temperature Range | -20°C to +70°C (Operating) |
Dimensions
Typical Pinout (8-Pin Configuration)
| Pin | Name | Description |
| 1 | VCC | Power Supply (3.3V Recommended) |
| 2 | GND | Ground |
| 3 | CS | Chip Select (Active Low) |
| 4 | RES | Reset (Active Low) |
| 5 | DC/A0 | Data/Command Selection |
| 6 | SDA | SPI Data (MOSI) |
| 7 | SCK | SPI Clock |
| 8 | LED | Backlight Control (3.0V – 3.3V) |
Applications
Smart Wearables: Fitness trackers and smartwatch prototypes.
Robotics & IoT: Compact user interfaces and sensor dashboards.
Industrial Monitoring: Digital gauges and control panels for machinery.
Embedded Systems: Custom handheld devices and educational project displays.
