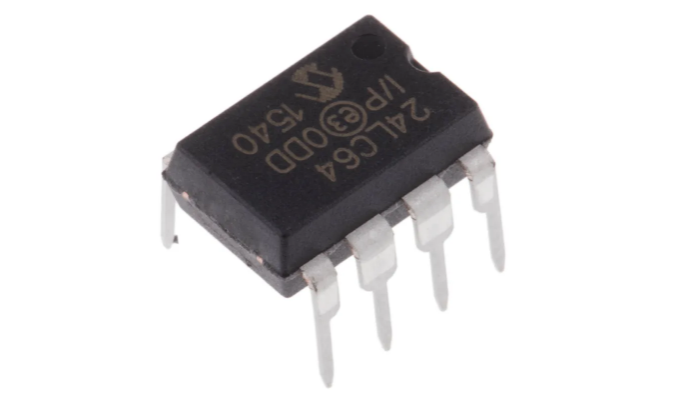

24C64 EEPROM Serial-2Wire 64K-bit IC

• Low-Voltage and Standard Voltage Operation:
– 1.8V (VCC = 1.8V to 5.5V)
– 2.7V (VCC = 2.7V to 5.5V)
• Internally Organized as 8,192 x 8 (64K)
• Industrial Temperature Range: -40°C to +85°C
• I2C-Compatible (Two-Wire) Serial Interface:
– 100 kHz Standard mode, 1.8V to 5.5V
– 400 kHz Fast mode, 1.8V to 5.5V
• Schmitt Triggers, Filtered Inputs for Noise Suppression
• Bidirectional Data Transfer Protocol
• Write-Protect Pin for Upper 16 Kb Quadrant Hardware Data Protection
• Ultra Low Active Current (3 mA maximum) and Standby Current (6 μA maximum)
• 32-byte Page Write Mode:
– Partial page writes allowed
• Random and Sequential Read Modes
• Self-Timed Write Cycle within 5 ms Maximum
• High Reliability:
– Endurance: 1,000,000 write cycles
– Data retention: 100 years
• Green Package Options (Lead-free/Halide-free/RoHS compliant)
• Die Sale Options: Wafer Form and Bumped Wafers
