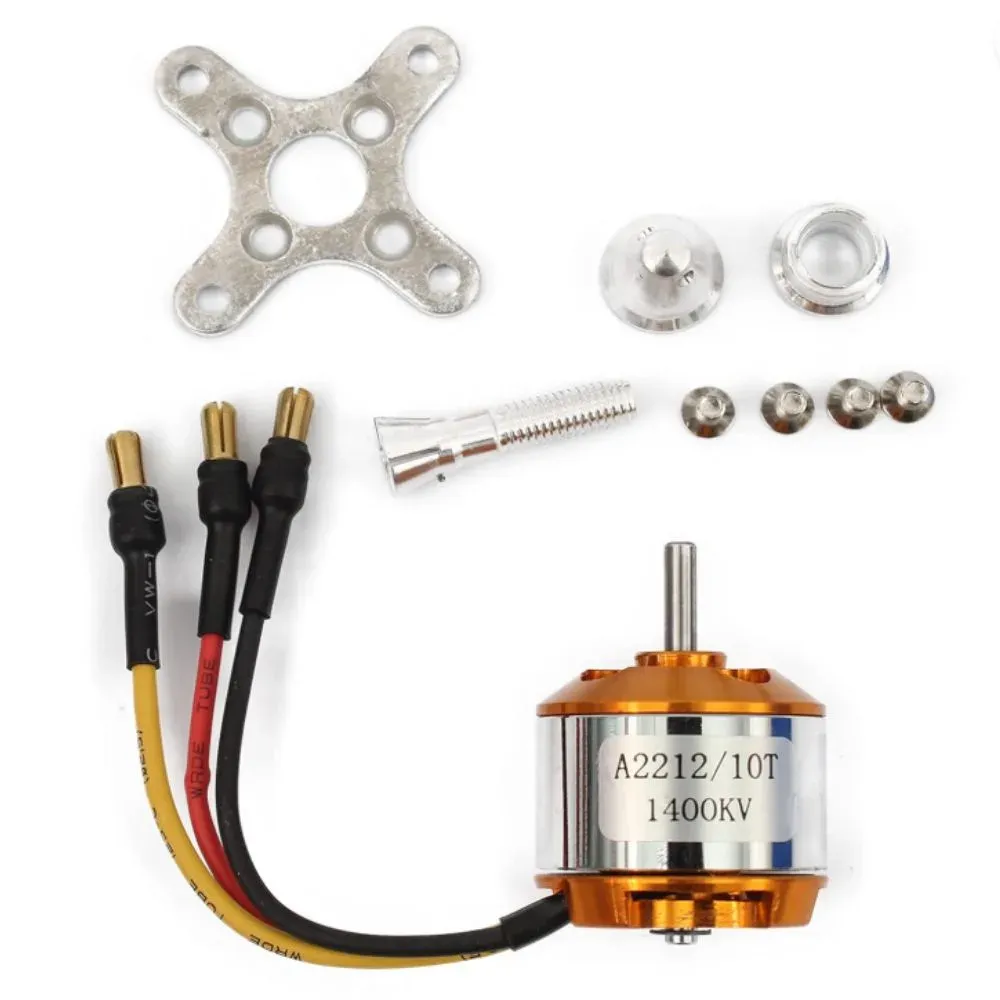

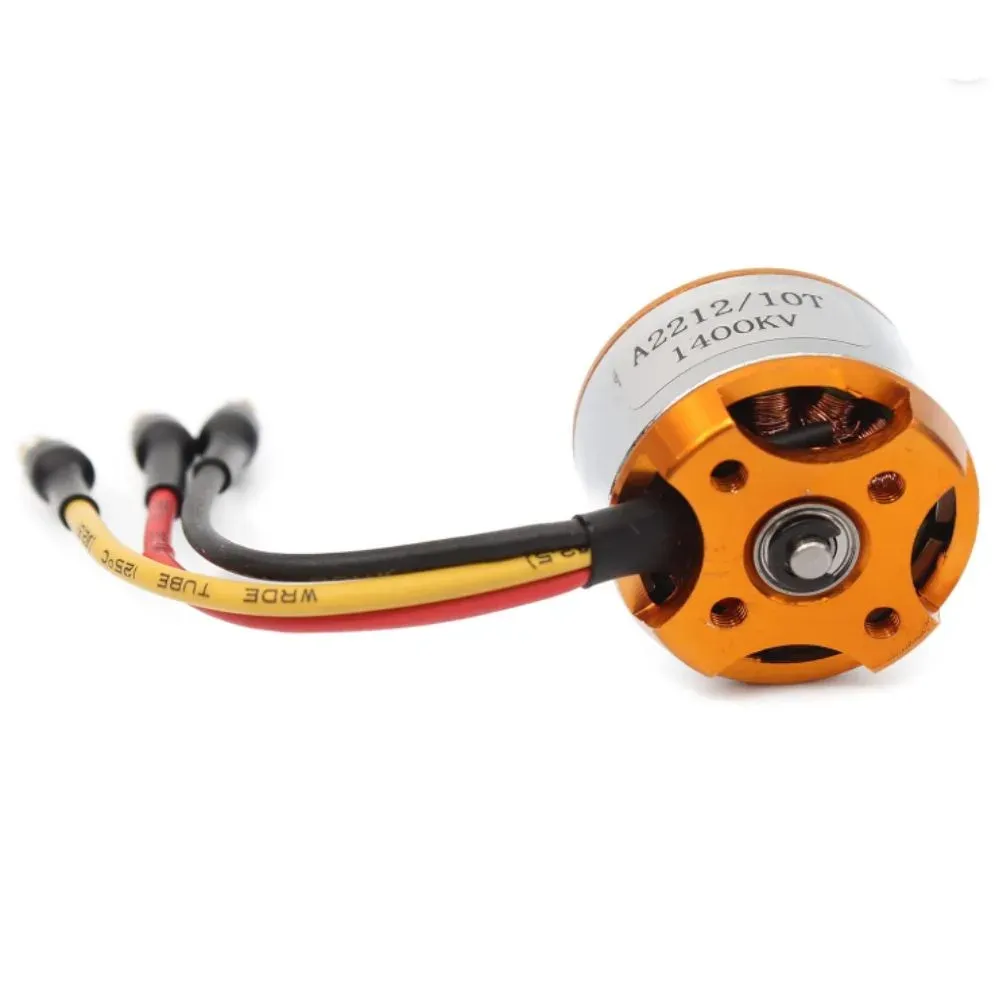

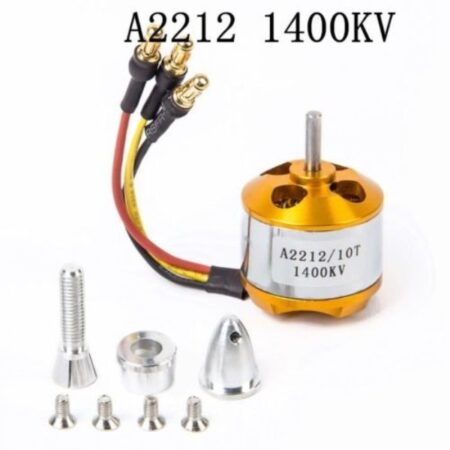

موتور بدون فرش (براش ليس) A2212 1400KV

The A2212 1400KV is a high-performance, cost-effective brushless DC (BLDC) motor designed for RC aircraft and multi-rotors. As an outrunner motor, the outer shell rotates around the coils, providing high torque and smooth throttle response. This motor comes pre-soldered with 3.5mm male banana bullet plugs, allowing for a direct, "plug-and-play" connection to your Electronic Speed Controller (ESC).

Key Features

•


  Optimized for 3S Power: Best suited for 2-3 cell Li-Po batteries, delivering a strong balance of thrust and efficiency.





•


  Durable Construction: Features a solid metal casing and steel components designed to withstand competitive flight conditions.





•


  Plug-and-Play: Equipped with pre-installed 3.5mm bullet connectors to simplify wiring with standard 30A ESCs.





•


  Versatile Compatibility: The lightweight and compact design makes it a standard choice for F450/S500 drone frames and fixed-wing airplanes.





•


  High Efficiency: Maintains over 80% efficiency for longer flight times and reduced heat buildup.




Technical Specifications

Dimensions

Applications

•


  Multirotors: Ideal for Quadcopters (F450/S500 frames) and Hexacopters.





•


  RC Aircraft: Suitable for fixed-wing planes, gliders, and helicopters.





•


  UAV Prototyping: A reliable, low-cost solution for academic and research drone projects.




Recommended Setup

•


  ESC: 30A Brushless ESC





•


  Propeller: 1045 (10-inch) Propeller Set
