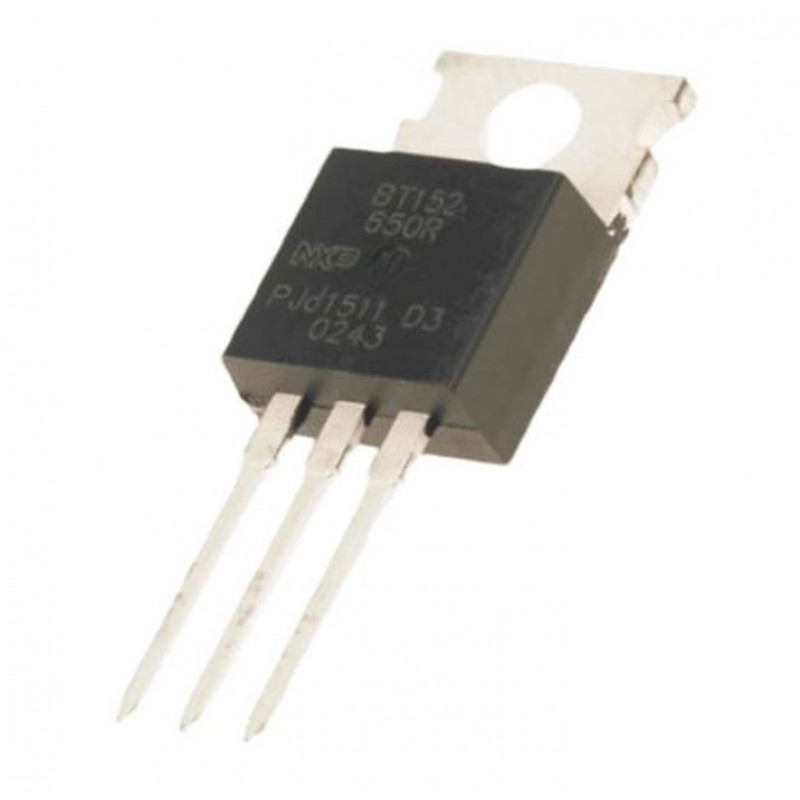

BT152 Thyristor

Product Overview

The BT152 Thyristor is a silicon-controlled rectifier (SCR) designed for reliable AC power control. Engineered for precision triggering and robust conduction in high-voltage circuits, it is ideal for applications such as light dimming, motor speed control, and other industrial switching tasks. Its stable performance under varying load conditions makes it a trusted component in many power regulation systems.

Key Features:

• High-Voltage Operation: Suitable for use in AC circuits where high voltage control is essential.
• Robust Performance: Offers reliable triggering and conduction, ensuring stable operation in power control applications.
• Low On-State Voltage Drop: Helps reduce power loss and improves efficiency during conduction.
• Sensitive Gate Triggering: Requires only a small gate current to initiate conduction, simplifying circuit design.
• Compact Packaging: Typically available in standard packages (e.g., TO-220) for easy mounting and integration.

Technical Specifications:

• Type: Thyristor (Silicon-Controlled Rectifier)
• Voltage Rating: Approximately around 400V (verify with datasheet for exact values)
• Current Rating: Suitable for moderate power applications (e.g., around 1–2A; check datasheet)
• Gate Trigger Voltage: A few volts (exact value depends on the manufacturer)
• Gate Trigger Current: Low, facilitating easy activation
• Package Type: Standard package (commonly TO-220 or similar)

Applications:

• AC Power Control: Used in phase angle control circuits for regulating AC power.
• Light Dimming: Ideal for controlling lamp brightness in lighting systems.
• Motor Speed Control: Applied in variable speed motor controllers.
• Industrial Automation: Utilized in various industrial circuits for reliable switching.

Why Choose the BT152 Thyristor?

The BT152 Thyristor offers precise control and reliable performance in high-voltage AC applications. Its low gate current requirement, robust construction, and efficient conduction make it an excellent choice for engineers and designers looking for a dependable SCR solution in both industrial and consumer electronics.
