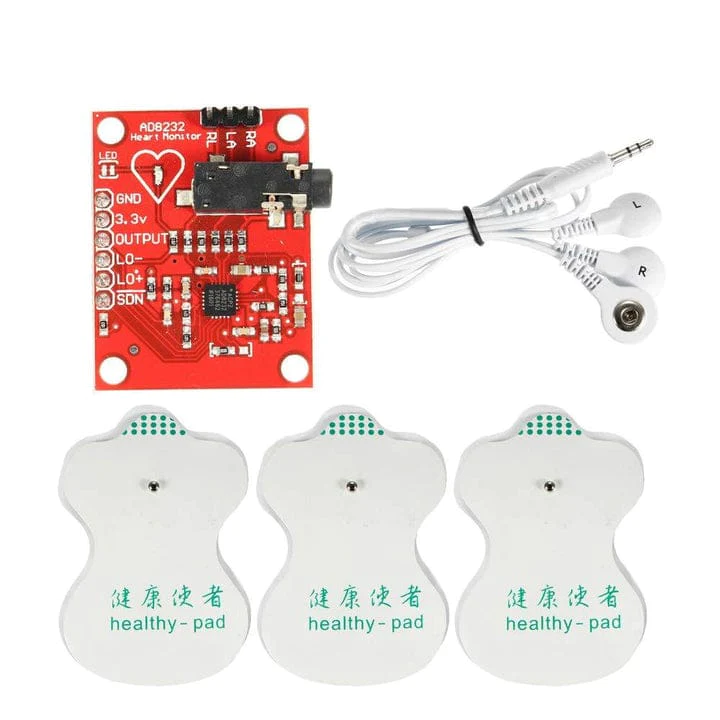

بوردة سنسور مراقبة معدل ضربات القلب ECG موديل: AD8232

Product Overview

The Heart Rate Monitor ECG AD8232 is an integrated circuit designed to measure electrocardiogram (ECG) signals from the heart. It is an ideal solution for wearable health devices, medical applications, and fitness monitoring systems. The AD8232 provides a low-noise, high-precision ECG signal with minimal external components required for operation. This module is perfect for monitoring heart rate, detecting abnormal heart conditions, and providing feedback in real-time health tracking applications.

Key Features

• High Precision ECG Measurement – Provides accurate heart rate monitoring with low noise and high sensitivity.


• Low Power Consumption – Ideal for portable and battery-powered applications.


• Integrated Amplifier – Amplifies ECG signals with a high input impedance.


• Single Supply Operation – Operates with a single supply voltage, simplifying the power design.


• Filter for Noise Reduction – Built-in filters to remove power line noise and other interference.


• Compact Design – Small form factor makes it suitable for integration into wearable devices.


• Output Signal – Provides analog output that can be easily interfaced with microcontrollers and other processing systems.


• Adjustable Gain – Customizable gain to suit different ECG signal strengths and applications.

Technical Specifications

• Operating Voltage: 3.3V to 5V


• Power Consumption: Approximately 160 µA (typical)


• ECG Signal Input Range: ±1.8V


• Frequency Response: 0.5 Hz to 150 Hz


• Output Type: Analog signal (can be fed to microcontrollers with ADC)


• Signal-to-Noise Ratio (SNR): High SNR for clear ECG signals


• Filtering: Built-in low-pass and high-pass filters to remove noise


• Size: 32mm x 19mm (for the module)

Applications

• Wearable Health Monitors – Used in fitness trackers, smartwatches, and other wearable devices for continuous heart rate monitoring.


• Medical ECG Systems – Ideal for portable ECG devices used for diagnosis and health monitoring.


• Fitness Tracking – Used in fitness devices to monitor heart rate during exercise and physical activity.


• Home Healthcare – Suitable for home health devices that track and record heart activity for wellness monitoring.


• Telemedicine – Helps in remote monitoring of patients, providing ECG data for health professionals.

Why Choose AD8232 Heart Rate Monitor?

The AD8232 Heart Rate Monitor is a cost-effective, compact, and precise solution for ECG measurement. Its low power consumption, ease of integration, and ability to provide clear ECG signals make it an excellent choice for health and fitness applications, medical monitoring, and wearable technology.
