آي سي 4002 بوابة NOR مزدوجة بأربعة مداخل

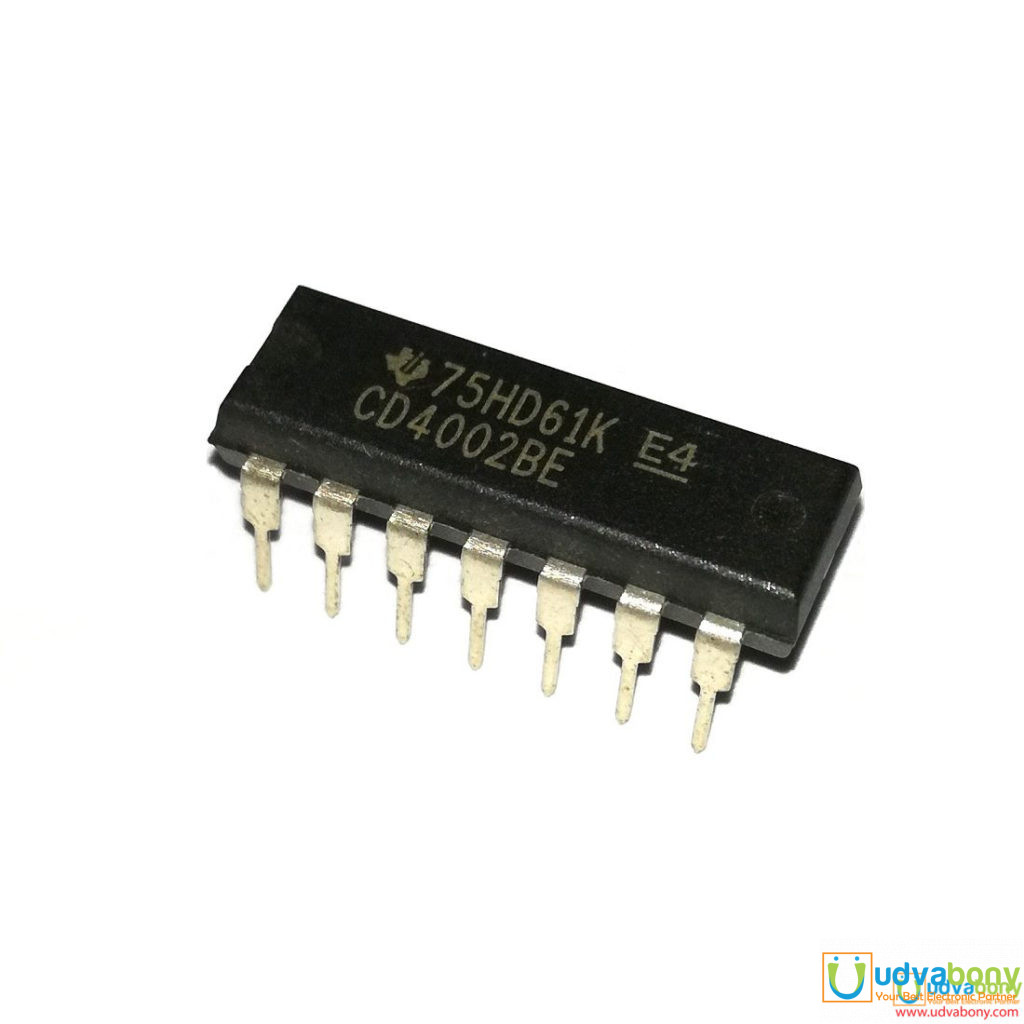

Description: CD4002 IC CD 4002 DIP 14 Pin IC

CD4002BE CD4002 CD-4002 4002 DIP-14 Pin Dual In Package Dual 4-Input NOR Gate IC Breadboard Friendly IC

CD4002 belongs to the CD4000 IC series. CD4002 consists of two monolithic 4 – input NOR gates made by using the complementary MOS (CMOS) technology, integrated with p-type and n-type enhancement mode transistors. The IC is always available in a 14 – pin hermetically sealed dual in line package (DIP). The IC offers a wide array of working voltages, numerous working conditions, and directly interfaces with CMOS, NMOS, and TTL devices. CD4002 offers features such as ESD barring and high noise immunity. Each output is protected against static damage by using clamping diodes.

What is NOR Gate?

An OR gate followed by a NOT gate in a cascade is called a NOR gate. The inclusive NOR (Not – OR) gate has an output that is normally at logic level “1” and only goes “LOW” to a logic level “0” when any of its inputs are at logic level “1”. The Logic NOR Gate is the reverse or complementary form of the inclusive OR gate.

CD4001 Key Features

• Wide supply voltage range 3.0V to 15V


• Low power 10 nW (typ.)


• High noise immunity 0.45 VDD (typ.)


• Buffered Inputs and Outputs


• Standard Symmetrical Output Characteristics


• 100% Tested for Maximum Quiescent Current at 20V


• 5V, 10V and 15V Parametric Ratings


• Maximum Input Current of 1µA at 18V Over Full Package-Temperature Range; 100nA at 18V and +25oC

CD4002 Pinout

PIN NO	PIN NAME	DESCRPITION
1	Q1	output of gate 1
2	A2	input 1 of gate 1
3	B3	input 2 of gate 1
4	C4	input 3 of gate 1
5	D5	input 4 of gate 1
6	NC	normally closed
7	VSS	source supply
8	NC	normally closed
9	E9	input 1 of gate 2
10	F10	input 2 of gate 2
11	G11	input 3 of gate 2
12	H12	input 4 of gate 2
13	Q2	output of gate 2
14	VCC	Collector supply voltage

Application

• Automotive


• Alarm system


• Data terminals


• Industrial controls


• Instrumentation


• Remote metering


• Medical Electronics


• Computers
