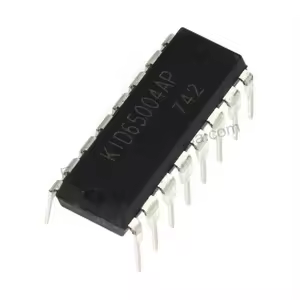

آي سي دارلينجتون لتشغيل الريلاي والمواتير موديل: KID650047

Product Overview

The IC KID65004 is a 7-circuit Darlington transistor array designed to interface low-level logic signals with high-power loads. Manufactured by KEC (Korea Electronics), it is ideal for driving devices such as relays, lamps, motors, and other inductive loads. With integrated clamp diodes to protect against voltage spikes, this IC ensures robust and reliable operation in a variety of applications.

Key Features:

• 7 Darlington Transistor Channels – Each channel provides high current gain for effective load driving.


• High Output Capability – Each channel supports up to 500 mA and can handle sustaining voltages up to 50V.


• Integrated Clamp Diodes – Protects the circuit from inductive voltage transients.


• Logic Compatibility – Accepts TTL and CMOS logic levels for versatile interfacing.


• Flexible Package Options – Available in DIP-16 and FLP-16 packages to suit different design requirements.

Technical Specifications:

• Number of Channels: 7


• Output Sustaining Voltage (V_CE(sus)): 50V


• Output Current (I_out): 500 mA per channel


• Input Voltage Range: 0 to 30V (logic input)


• Clamp Diode Specs: Reverse voltage 50V, forward current 500 mA


• Power Dissipation:



  • DIP-16 Package: 1.47W


  • FLP-16 Package: 0.54W (free air) or 1.25W (on PCB)






• Operating Temperature Range: –40°C to +85°C

Applications:

• Relay and Solenoid Drivers – Efficiently controls electromechanical devices.


• Lamp and LED Drivers – Suitable for driving high-power lamps and LED arrays.


• Motor Control – Can drive small DC motors in automation and robotics.


• Logic Buffer and Signal Amplification – Interfaces low-level logic with high-power loads.

Why Choose the IC KID65004?

The IC KID65004 offers a robust and efficient solution for controlling high-power loads with low-power logic signals. Its high current capability, built-in protection features, and flexible packaging options make it an excellent choice for both industrial and consumer electronic applications.
