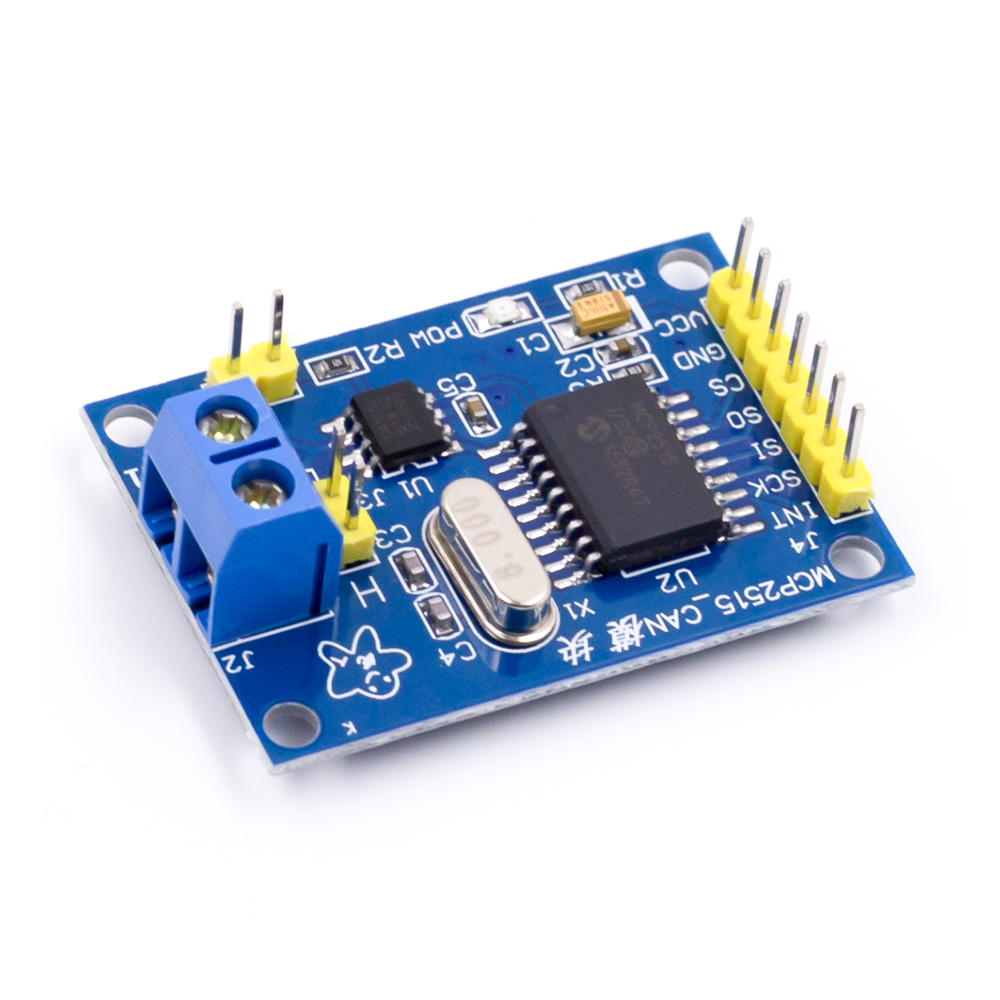

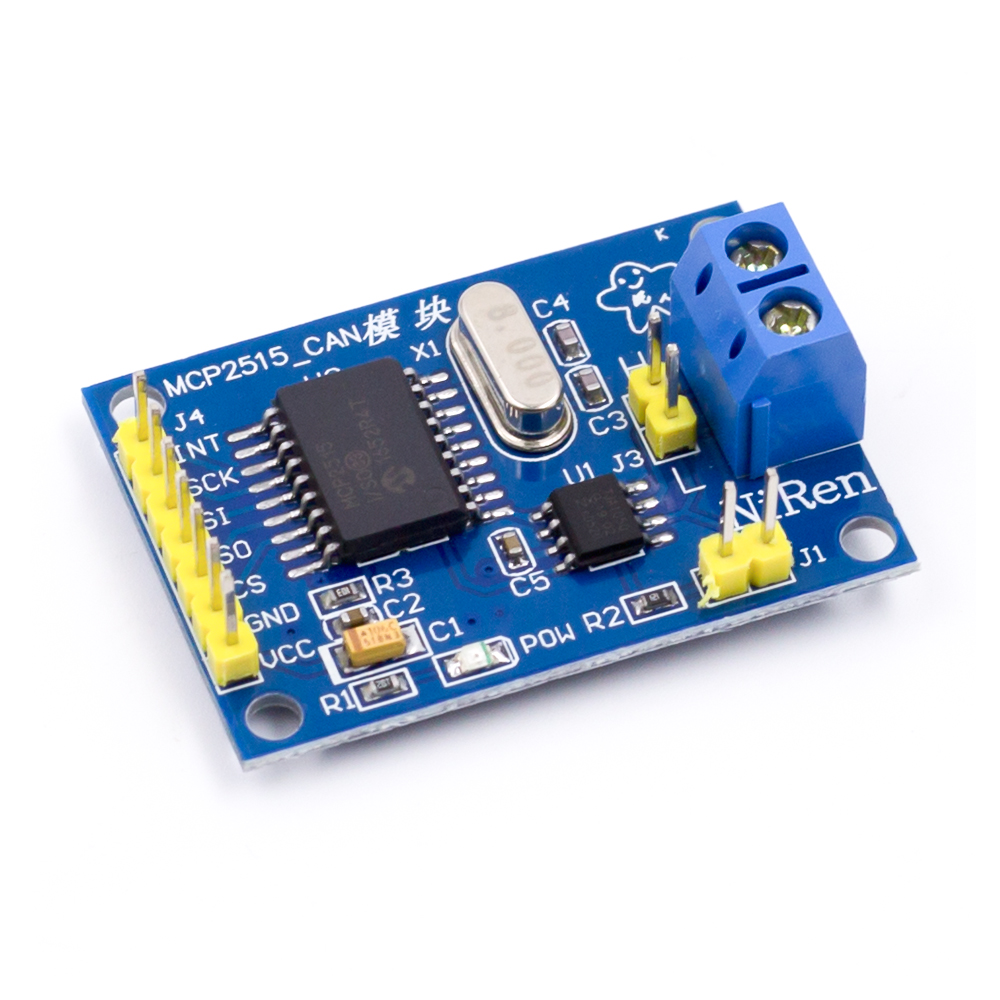

MCP2515 CAN Bus Module TJA1050 Receiver SPI For ARM Controller

Features:

This is a brand new MCP2515 CAN bus module TJA1050 receiver SPI protocol

Compatible with based micro-controller projects.

Specifications:

Support CAN V2.0B specification, the communication speed 1Mb / S

0 to 8-byte data field

Three frames – standard, expand the frame and remote

DC5V power supply module & SPI interface protocol control

120 ohm termination resistors, Impedance matching, ensure drive capacity, long-distance data transmission against signal radiation

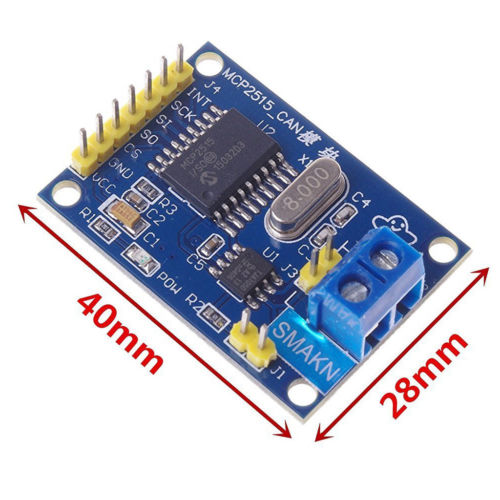

Module dimensions 4. 4 x 2.8 cm/1.57*1.1″ (approx.)

Working Current – typ. 5mA & 1μA standby current

Working Temperature – (Industrial grade) -40°C – +85°C

Package includes:

1* MCP2515 CAN bus module TJA1050 receiver

,
