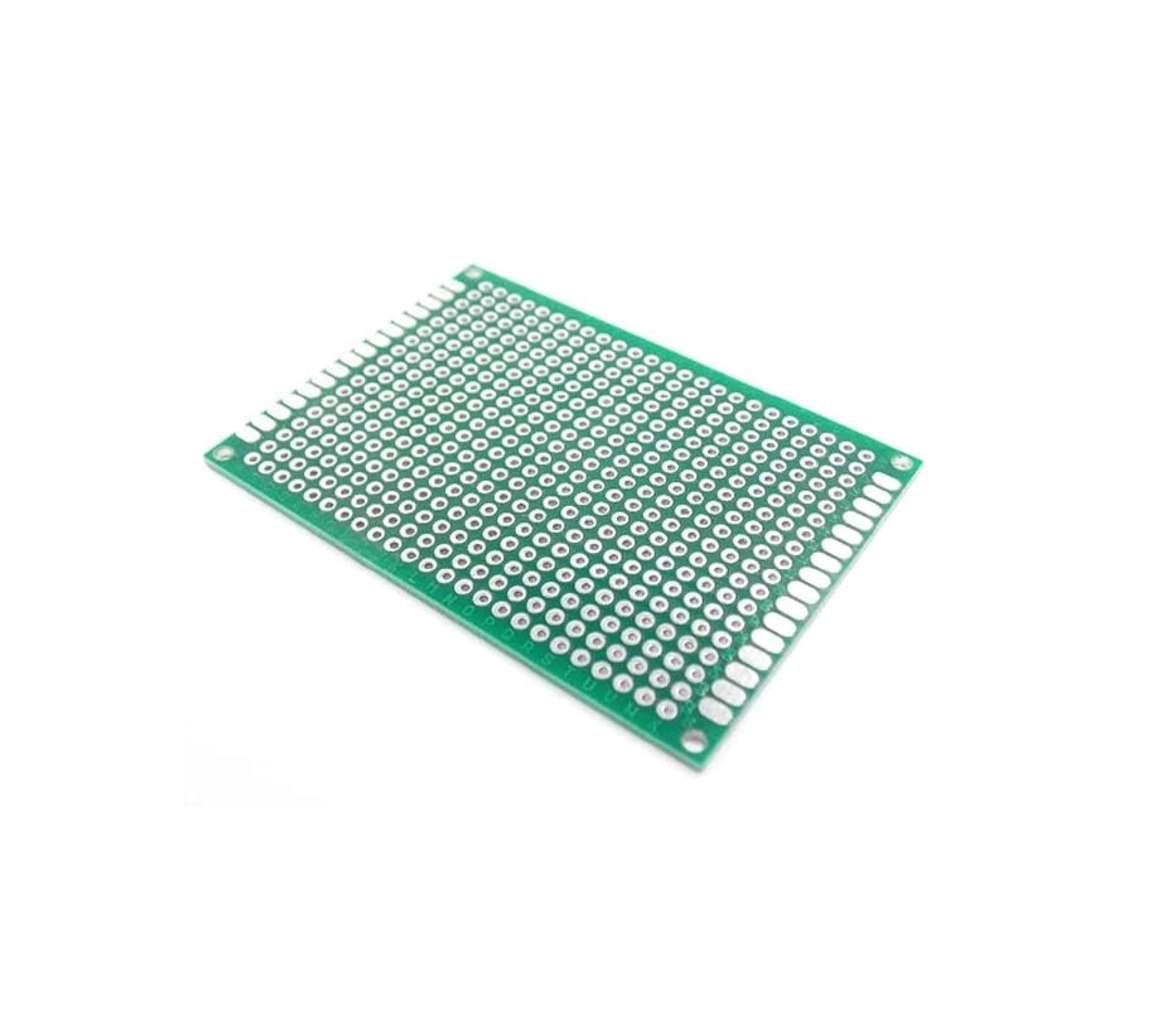

بوردة نحاس PCB فيرو مزدوجة الطبقات (دبل لاير) FR-4 مقاس 6×8 سم

Product Overview

The Universal PCB Prototype Board Double-Sided with a 2.54mm hole pitch and dimensions of 7x9 cm is an ideal board for designing and testing electronic circuits. It features high quality and a versatile design, making it suitable for educational projects, prototyping, and various electronic applications. The double-sided board provides flexibility in connections and supports standard electronic components.

Key Features

• Universal Design: 2.54mm (0.1 inch) hole pitch compatible with most electronic components.


• Double-Sided: Two copper layers for increased connection flexibility.


• High Quality: Made from durable and heat-resistant materials.


• Ideal Size: 7x9 cm, perfect for small to medium-sized projects.


• Ease of Use: Great for quick prototyping and testing.


• Component Compatibility: Supports both manual and automated connections.

Technical Specifications

• Board Type: Double-Sided.


• Hole Pitch: 2.54mm (0.1 inch).


• Dimensions: 7 cm × 9 cm.


• Base Material: FR4 Fiberglass.


• Copper Layer: 1 oz copper per layer.


• Hole Type: Non-plated (ideal for manual connections).


• Color: Standard green.

Benefits

• High Flexibility: Allows for easy design of complex circuits.


• Versatile: Suitable for students, hobbyists, and professionals.


• Easy Modifications: Connections can be easily adjusted without the need for custom boards.


• Cost-Effective: An affordable solution for prototyping.


• Tool Compatibility: Supports both manual and automated assembly tools.

Usage Instructions

• Planning: Plan your electronic circuit before starting the connections.


• Component Placement: Secure electronic components in the appropriate holes.


• Connections: Use wires or solder to connect components according to your design.


• Testing: Test the circuit after completing the connections.


• Modifications: Easily adjust connections if errors are found.

Safety & Storage

• Handling: Avoid exposing the board to physical shocks or bending.


• Storage: Store in a dry and cool place, away from moisture.


• Electrical Safety: Ensure power is disconnected before making any modifications.


• Maintenance: Regularly check connections to ensure their integrity.

Applications

• Education: Ideal for electronics engineering students and hobbyists.


• Prototyping: Used for designing and testing circuits before production.


• Small Projects: Suitable for home-based electronic projects.


• Experimentation: Great for quickly testing new ideas.


• Repairs: Helps in repairing complex electronic circuits.

Why Choose the 7x9 cm Double-Sided Universal PCB Prototype Board?

This board is an ideal solution for quick and efficient prototyping. Its universal design and standard hole pitch make it compatible with most electronic components, while the double-sided copper layers provide greater connection flexibility. Whether you're a student, hobbyist, or professional, this board meets your needs with high quality and affordability.
