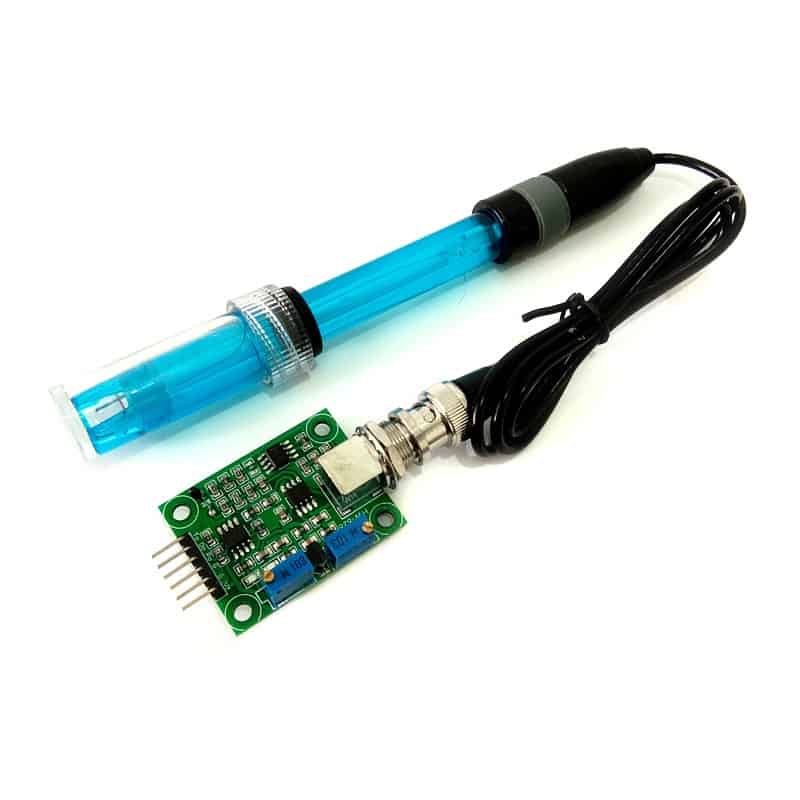

موديول سنسور قياس درجة الحموضة pH (من 0 إلى 14) - أزرق

Product Overview

The PH Testing Sensor Module (0-14 pH) is a high-precision module designed for measuring the pH value of various liquids. It is ideal for applications in water quality monitoring, environmental testing, aquariums, hydroponics, and laboratory experiments. The sensor provides an analog voltage output proportional to the pH level, making it compatible with microcontrollers such as Arduino, ESP32, and Raspberry Pi.

Key Features:

• Wide Measurement Range (0-14 pH) – Covers the full pH scale.


• High Accuracy & Stability – Provides precise readings for reliable pH measurement.


• Analog Voltage Output – Easily interfaces with microcontrollers.


• Compatible with Arduino & Other MCUs – Works with ESP32, Raspberry Pi, and other development boards.


• BNC Probe Connector – Allows for easy and secure sensor attachment.


• Long Lifespan Electrode – Durable design ensures extended use.

Technical Specifications:

• Measurement Range: 0 to 14 pH


• Output Voltage: 0-5V analog signal


• Working Voltage: 3.3V - 5V


• Accuracy: ±0.1 pH (with proper calibration)


• Response Time: ≤ 1 second


• Operating Temperature: 0°C to 60°C


• Electrode Type: Glass electrode with BNC connector


• Compatible Microcontrollers: Arduino, ESP32, Raspberry Pi, STM32, etc.


• Calibration Method: Two-point calibration (acidic and neutral solutions)

Applications:

• Water Quality Monitoring – Ideal for environmental testing and industrial use.


• Hydroponics & Agriculture – Helps maintain optimal soil and nutrient pH levels.


• Aquarium & Fish Tanks – Ensures safe pH conditions for aquatic life.


• Laboratory Experiments – Suitable for educational and research purposes.


• Food & Beverage Industry – Used for monitoring pH in dairy, brewing, and fermentation.

Why Choose the PH Testing Sensor Module?

The PH Testing Sensor Module (0-14 pH) is an easy-to-use, highly accurate, and reliable solution for pH measurement across multiple industries. Its wide compatibility with microcontrollers makes it ideal for automation and IoT applications.
