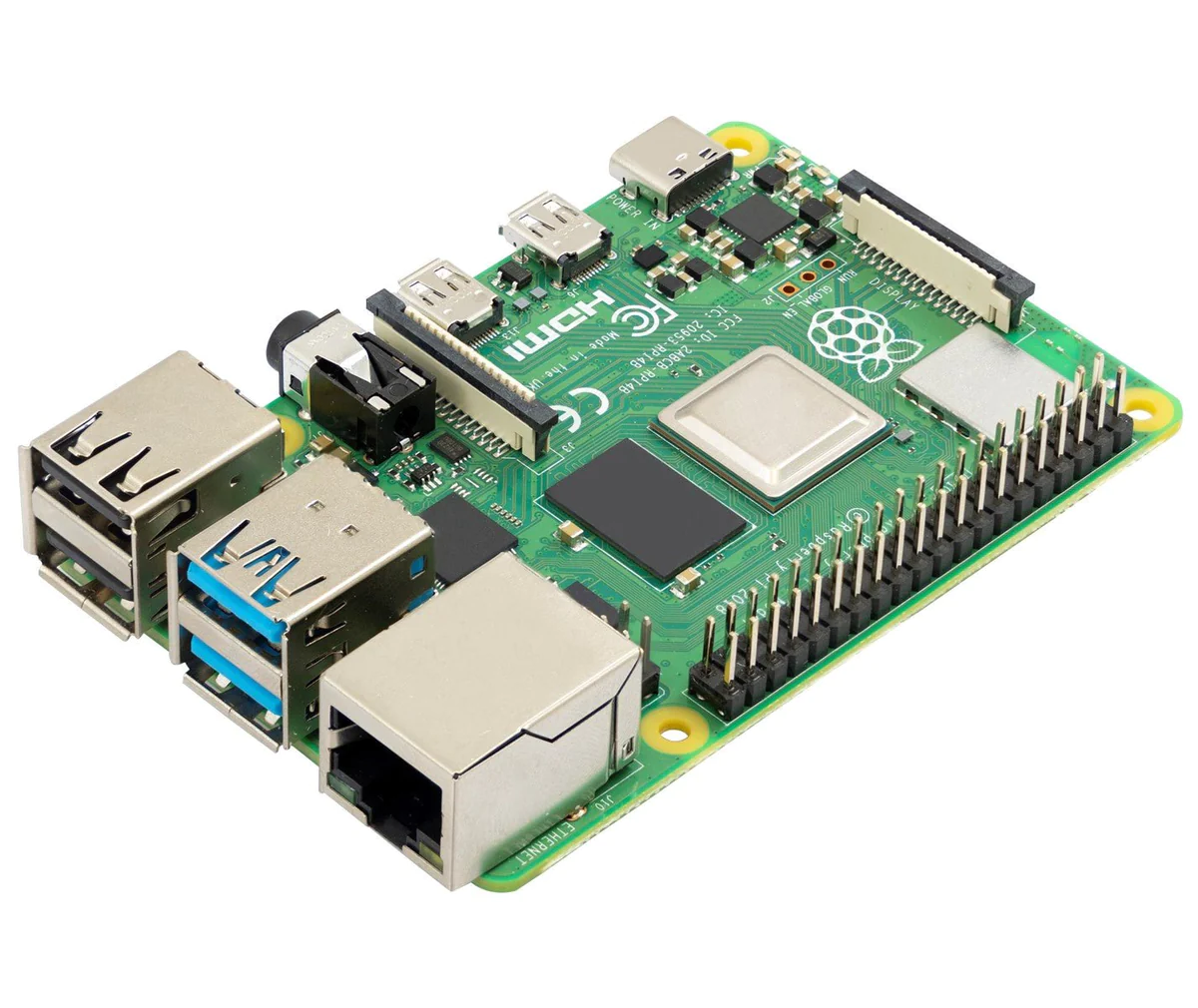

  Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.8GHz





•


  4GB LPDDR4-3200 SDRAM





•


  2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE





•


  Gigabit Ethernet





•

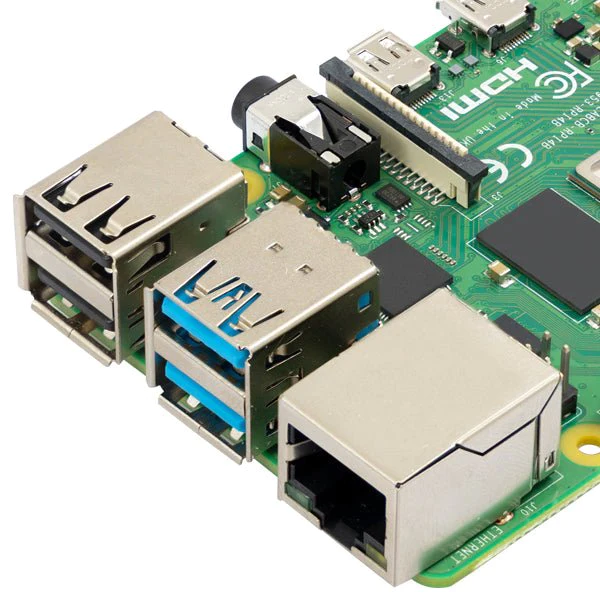

  2 USB 3.0 ports; 2 USB 2.0 ports.





•

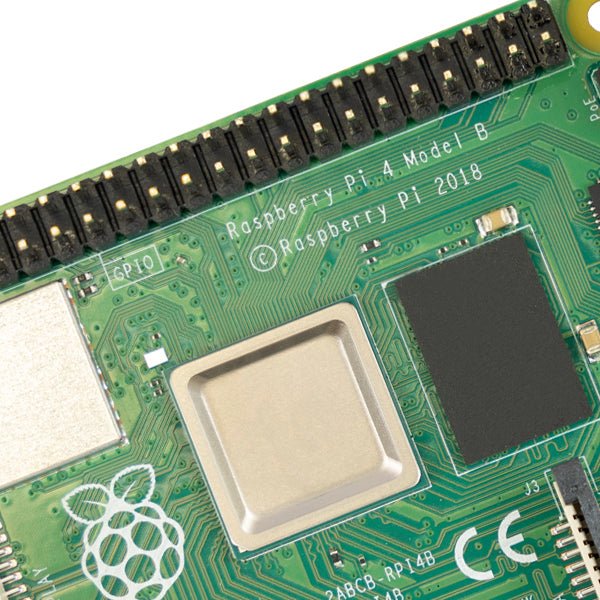

  Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)





•

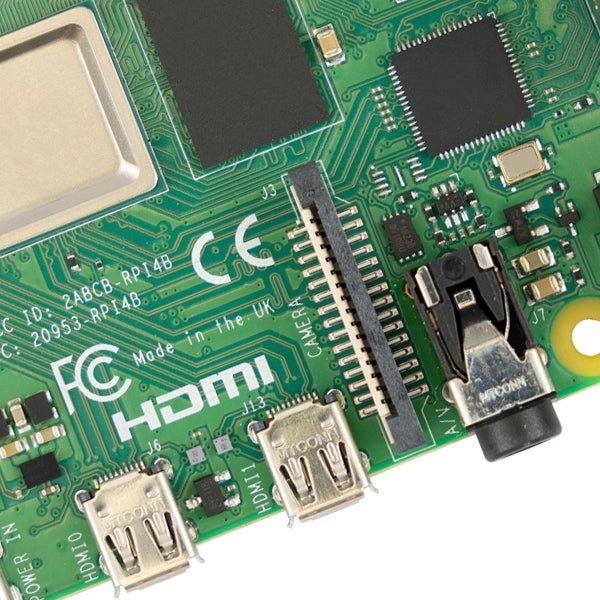

  2 × micro-HDMI® ports (up to 4kp60 supported)





•


  2-lane MIPI DSI display port





•


  2-lane MIPI CSI camera port





•


  4-pole stereo audio and composite video port





•


  H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)





•


  OpenGL ES 3.1, Vulkan 1.0





•

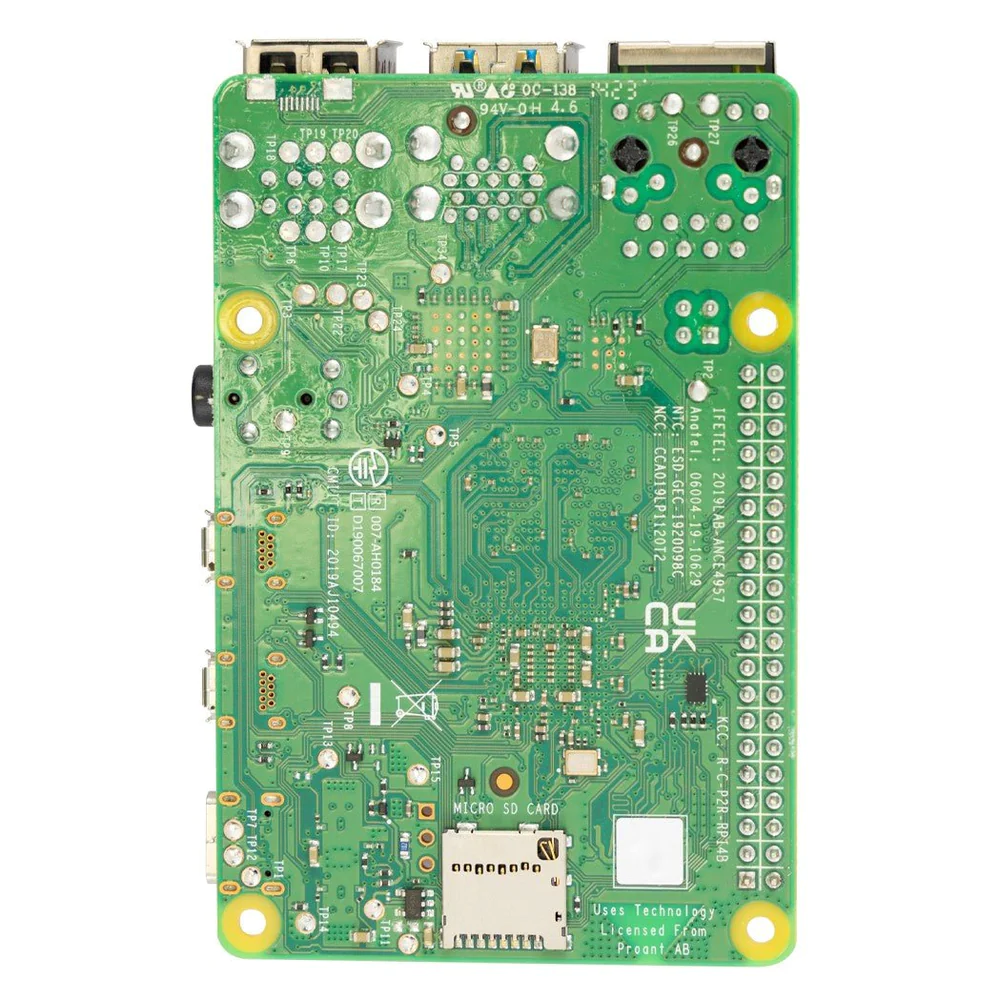

  Micro-SD card slot for loading operating system and data storage





•


  5V DC via USB-C connector (minimum 3A*)





•


  5V DC via GPIO header (minimum 3A*)





•


  Power over Ethernet (PoE) enabled (requires separate PoE HAT)





•


  Operating temperature: 0 – 50 degrees C ambient




* A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total.

To get started with your Raspberry:

• Raspberry Pi 4 Model B product brief


• Raspberry Pi 4 Model B schematic diagrams


• Raspberry Pi 4 Model B mechanical drawing


• Documentation including hardware and configuration
