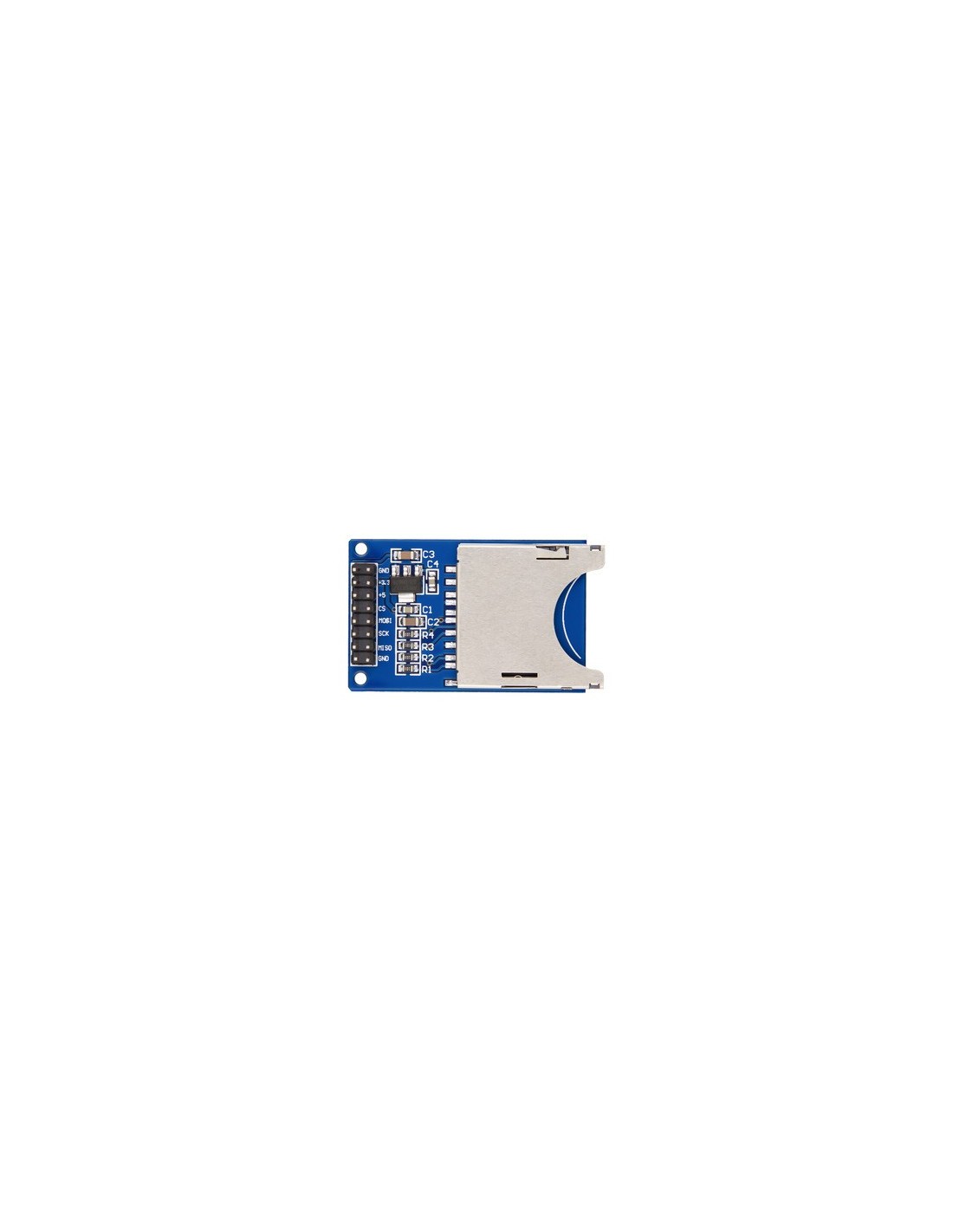

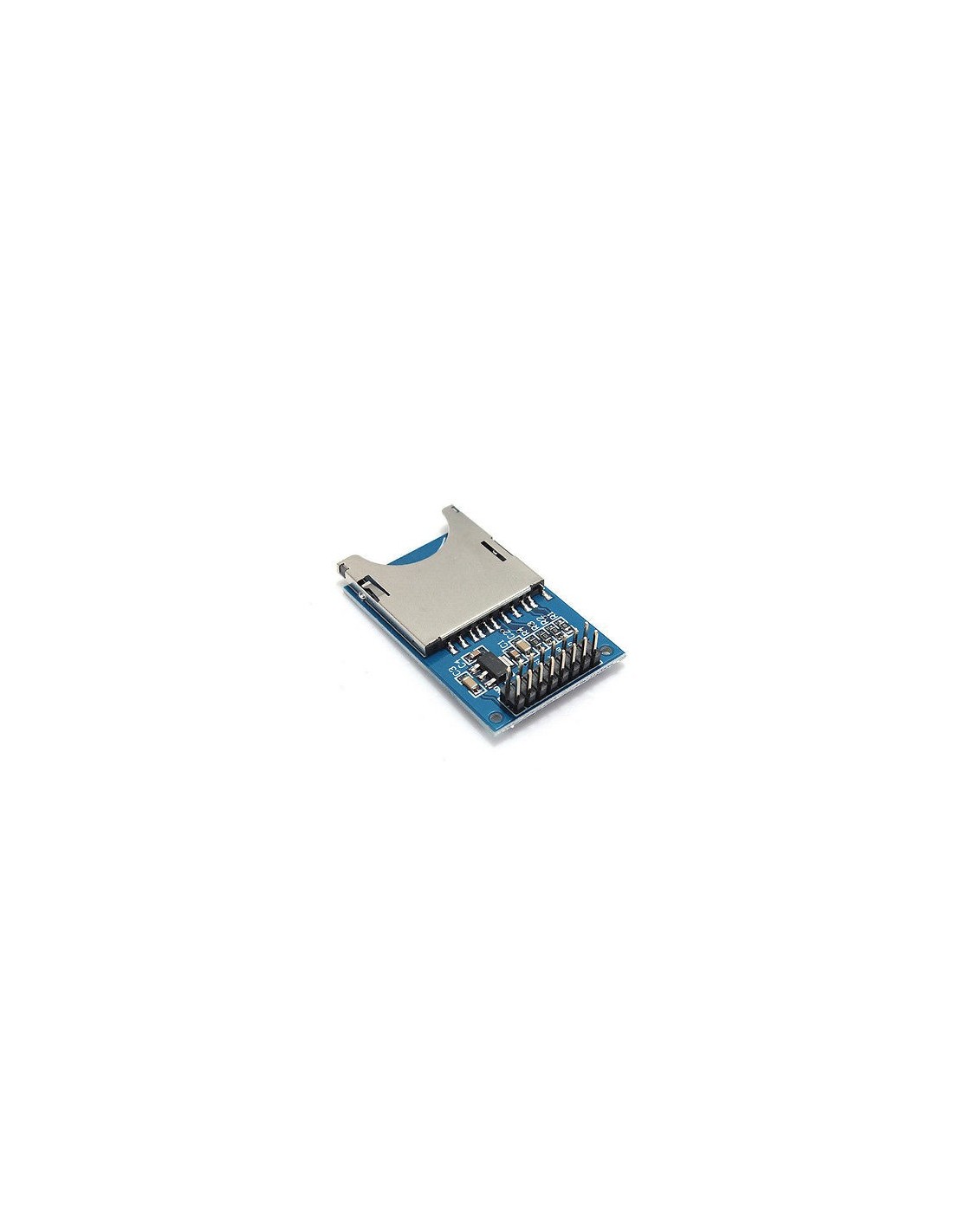

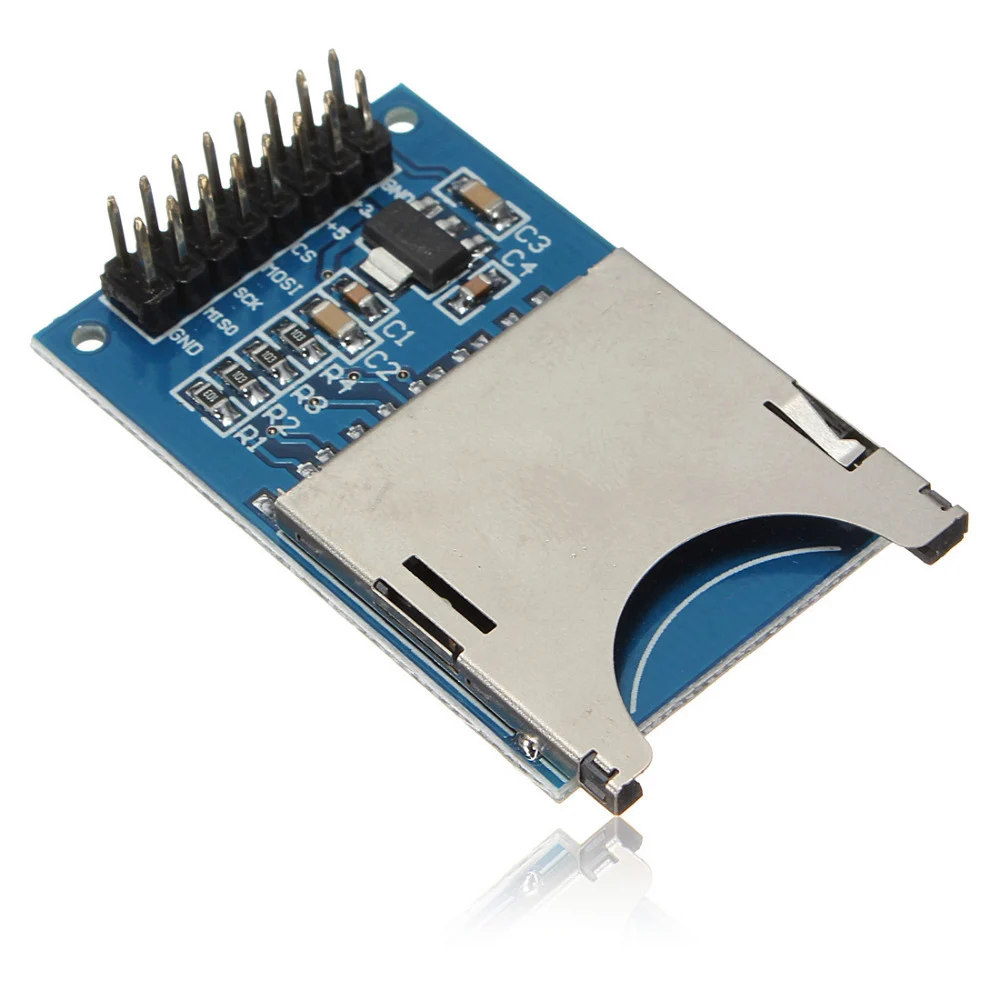

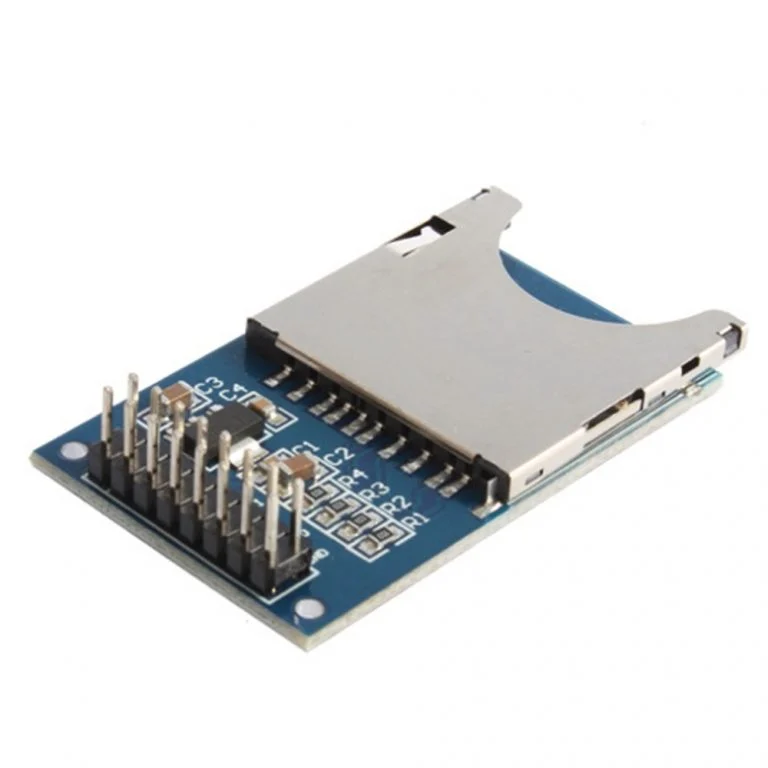

موديول قراءة وكتابة بطاقة SD لأردوينو

SD Card Reading Writing Module for Arduino with the onboard 3.3V regulator. This SD Card module can make your SD application easier and simple. Through programming, you can read and write to the SD card using your Arduino. With the help of this module, it can use for SD Card more easily, such as for MP3 Player, MCU/ARM system control.

It can be easily interfaced as a peripheral to your Arduino, and other embedded boards and microcontrollers. Through programming, you can read and write to the SD card over the SPI interface. This module can handle 2GB SD cards.

Note: Package Does NOT include a memory card.

Specifications and Features:

1. SD Card module can make your SD application easier and simple.


2. This module can handle 2GB SD cards.


3. It easily interfaces as a peripheral to your Arduino sensor shield module.


4. Through programming, you can read and write to the SD card using your Arduino.


5. Can use for SD Card more easily, such as for MP3 Player, MCU/ARM system control.


6. All SD SPI pins output, MOSI, SCK, MISO, and CS.


7. Support 5V/3.3V input.


8. LED indicator.


9. SD Card Holder.


10. Onboard 3.3V regulator (AMS1117-3.3) for +5v to 3.3V generation. 3.3V is also available as output.


11. A land pattern for USD interface (USD holder is not mount).

The SD card module has 6 pins to establish connection: 2 for power and 4 to establish a SPI connection (Serial Peripheral Interface).

• 5V or 3.3V for powering the module


• GND for the ground


• CS or Chip Select to activate communication


• MISO (Master Input, Slave Output) transmission pin, equivalent to Serial port pin Tx. Module output.


• MOSI (Master Output, Slave Input) Reception pin equivalent to Serial port pin Rx. Module input.


• SCK Clock to synchronize the devices

Size:5.1cm x 3.1cm
