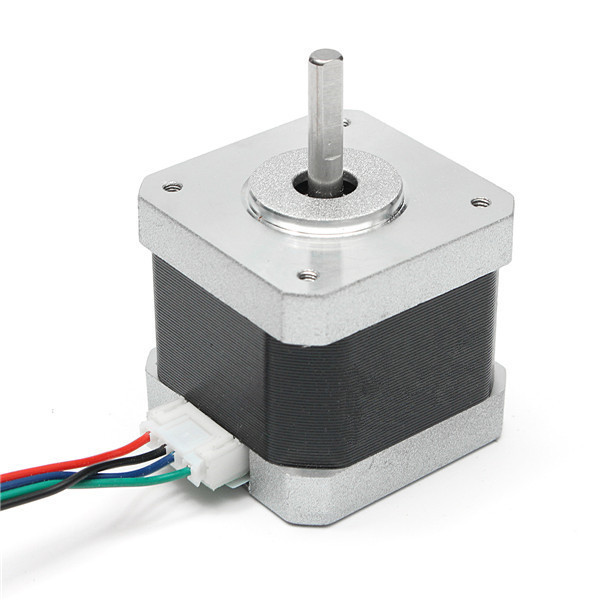

Stepper Motor NEMA 17 (USED) Medium

Another powerful bipolar stepper motor. This is NEMA 17 bipolar with 1.8º (200 steps/revolution). Stepper motor is perfect for open loop motion control.

Features:

Bipolar Nema 17 Stepper Motor with high torque

Each phase current is 1.7A (at 12V) & phase reslstance 1.5ohms, and the holding moment is 40Ncm (56.2oz.in).

NEMA 17 bipolar 4-wire, with 1.8° step angle (200 steps/revolution)

Warning: It should be connected to a constant current or chopper driver as a stepper motor. If you connect the motor directly to a power supply, the motor is destroyed.

Connection:Black(A+), Green(A-), Red(B+), Blue(B-).

This is the most popular Nema 17 model. It with 1.8 deg. step angle (200 steps/revolution).

Electrical Specification:

Manufacturer Part Number: 17HS4401

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg.

Holding Torque: 40Ncm(56.2oz.in)

Rated Current/phase: 1.7A

Phase Resistance: 1.5Ohm±10%

Insulation Resistance: 100MΩ¸ Min, 500VDC

Insulation Strength: 500VAC for one minute

Physical Specification:

Frame Size: 42 x 42mm

Body Length: 40mm

Shaft Diameter: 5mm

Number of Leads: 4

Lead Length: 400mm

Weight: 280g

Temperature rise: 80deg Max(rated current, 2 phase on)
