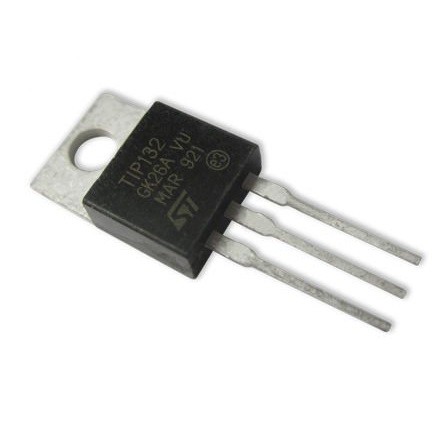

The TIP132 is a silicon Epitaxial-Base NPN power transistor in monolithic Darlington configuration, mounted in Jedec TO-220 plastic package. It is intended for use in power linear and switching applications.
Equivalent circuit
Application:
LINEAR AND SWITCHING INDUSTRIAL EQUIPMENT
Features:
- Type – NPN
- Collector-Emitter Voltage: 100 V
- Collector-Base Voltage: 100 V
- Emitter-Base Voltage: 5 V
- Collector Current: 8A
- Collector Dissipation – 70 W
- DC Current Gain (hfe) – 1000 to 15000
- Operating and Storage Junction Temperature Range -65 to +150 °C
